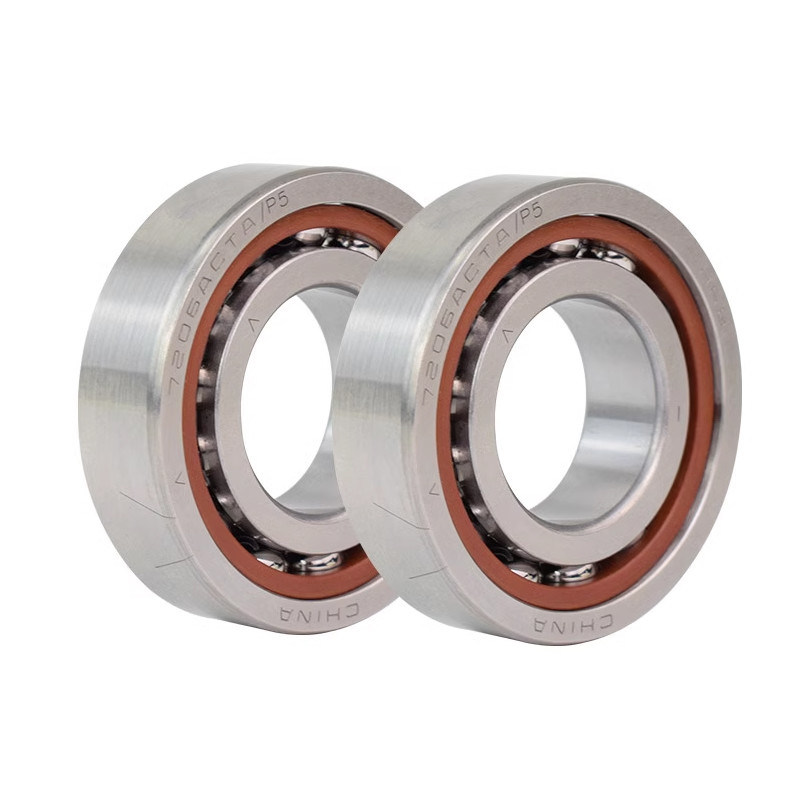

190bar10styndblp4a; 190btr10styndblp4a Angular Contact Ball Bearings Renewable Energy

1
MOQ
ask
Price
190bar10styndblp4a; 190btr10styndblp4a Angular Contact Ball Bearings Renewable Energy
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Automotive, Industrial, Agricultural
Cage: Brass, Steel, Nylon
Lubrication: Oil, Grease
Number Of Row: Single Row, Double Row
Precision Rating: P0, P6, P5, P4, P2
Service: OEM, Customized
Mark: Part Number+Brand
ID: 190mm
Od: 290mm
2b: 90.0mm
Weight: 10.7kg
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 190BAR10STYNDBLP4A
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

​​

Name Angular contact ball bearing
Seires BAR Series
Brand MONTON
Model 190BAR10STYNDBLP4A
Contact Angle 15°/25°/40°
d 190mm
D 290mm
2B 90.0mm
Ring Material Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2
Cage Material Nylon/phenolic resin
Load rating C 151kN
Load rating Co 390kN
Grease speed 3 200
Oil speed 4 000
Sealed as customer requested
Weight 10.7KG
Bearing Arrangement U/DB/DT/TBT/QBC/DU/QU ect.
Design Structure Angular contact
Precision P4,P5 or as customer requested
Vibration ZV1, ZV2, ZV3, or as customer requested
Clearance C0, C2, C3, or as customer requested
Quality standard ISO9001: 2000/SGS
Package single box
Original Luoyang
Service OEM
Delivery date Accordingly
Application Spindle,Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery,air compressor,shippiing.logistic,areospace
