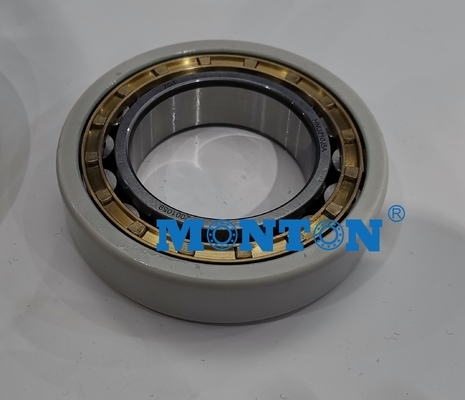

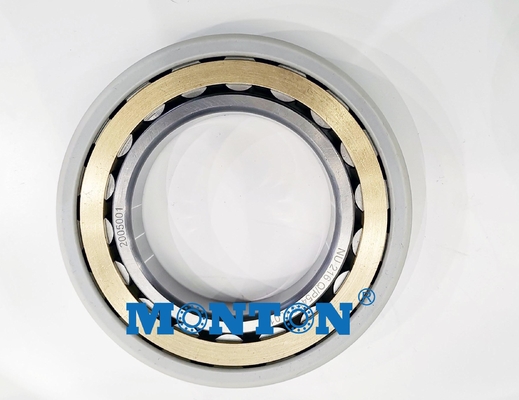

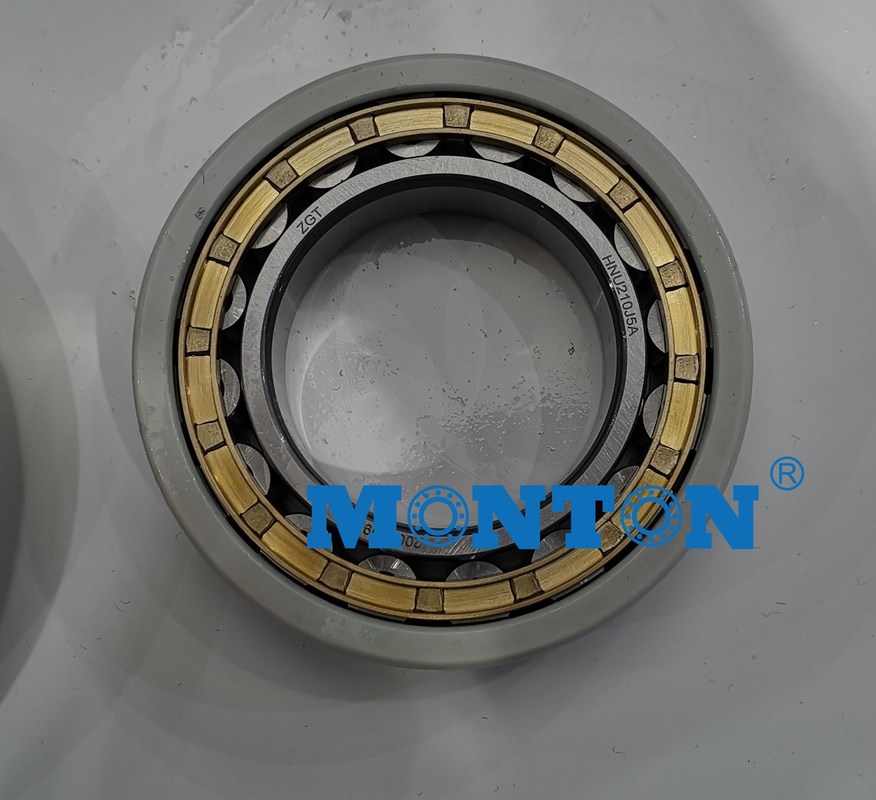

558320C.J20A Current-Isolated Railway Cylindrical Roller Bearing

Product Details:

Place of Origin:	LUOYANG
Brand Name:	MONTON
Certification:	ISO9001
Model Number:	Insulated bearings

Detail Information

Place of Origin:

LUOYANG

Brand Name:

MONTON

Certification:

ISO9001

Model Number:

Insulated bearings

Trading Information

Minimum Order Quantity:

Price:

USD

Packaging Details:

Single box/Wooden case

Delivery Time:

7-35 days

Product Description

Specifications

Availability100 pcs
BrandMONTON
Item NumberZ-558320.03.ZL-J20AA FAG
Also known as0867903150000
EAN4054369104844
CategoryCylindrical Roller Bearing Single Row

Weight and Dimensions

Inner (d) MM100,00
Outer (D) MM215,00
Width (B) MM60,00
Inner (d) Inch3.9370
Outer (D) Inch8.4646
Width (B) Inch2.3622
Weight (kg)9.56

Product Properties

BoreC - Cylindrical Bore
SealNo Seal
Cage TypeS - Steel or Standard Cage
External ModificationNo External Modification
Radial Internal PlayCn Normal Internal Play
PrecisionBreakdown Voltage 1000v
Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C

Protect equipment from stray electric currents

To support the trend towards electrically motorized wheel drives, bearings have to perform under high temperatures, shocks and vibrations and stray electric currents. hybrid bearings can handle it.

Featuring the benefits of ceramic rollers

MONTON hybrid bearings offer OEMs several benefits associated with ceramic rolling elements. Their electrical insulation properties virtually eliminate risk of electrical erosion in the rolling contacts, even under poor lubrication. Low friction and centrifugal forces facilitate high-speed capabilities. End-users ultimately enjoy longer service life and reduced lifecycle costs.

558320C.J20A Current-Isolated Railway Cylindrical Roller Bearing 1

Tags:

558320C.J20A Current-Isolated Railway Cylindrical Roller Bearing

Specifications

Weight and Dimensions

Product Properties

Protect equipment from stray electric currents

Featuring the benefits of ceramic rollers
