30TAC62BSUC10PN7B ball screw support bearing Thrust Axial Angular Contact Ball Bearings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 30TAC62BSUC10PN7B
High Light:

low friction bearings

,

dental ball bearing

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Specifications
Material: GCR15 Or Stainless
Accuracy: P4
Number Of Row: Single Row
Precision Rating: P4
Seals Type: ZZ 2RS OPEN
Structure: Angular Contact
Type: Ball
Bore Size: 40 Mm
Outside Diameter: 110 Mm
Service: OEM Customized Services
Cage: Nylon Cage
Feature: Long Life,High Speed,low Noise,durable,Low Price
Application: Machine Parts,Air Compressor,Reducer,Pump,Car Wheel
Sample: Avaliable
Package: Standard Package
Vibration: V1 V2 V3 V4
Product Description
NSK number 30TAC62BSUC10PN7B
Type Ball Screw Support Bearings, Open type
d 30 mm
D 62 mm
B 15 mm
rmin. 1.0 mm
r1min. 0.6 mm
d1 39.5 mm
d2 47.0 mm
D1 47.0 mm
D2 53.2 mm
Recommended Grease Quantities 3.2 cc/Bearing
Contact Angle 60 Degree
Limiting speeds 4900 min-1 (Grease)
Limiting speeds 6400 min-1 (Oil)
Mass (approx.) 0.224 kg
Basic Dynamic Load Rating Ca
Single row load
30.5 kN
Basic Dynamic Load Rating Ca
Double row load
50 kN
Basic Dynamic Load Rating Ca
Triple row load
66 kN
Limiting Axial load
Single row load
43 kN
Limiting Axial load
Double row load
86 kN
Limiting Axial load
Triple row load
129 kN



30TAC62BSUC10PN7A (Old Version P4 class)
30TAC62BSUC10PN7B (Old Version P4 class)
30TAC62CSUHPN7C (New version replaces all of above)
Accuracy class 7C (equivalent to axial runout class 2=P2) 60 degree contact angle
30x62x15 mm or 1.18 x 2.44 x 0.59 inch
High Accuracy replacement for PN7A and PN7B bearing specifications
Universal matching and ground to be used in matched bearing set applications

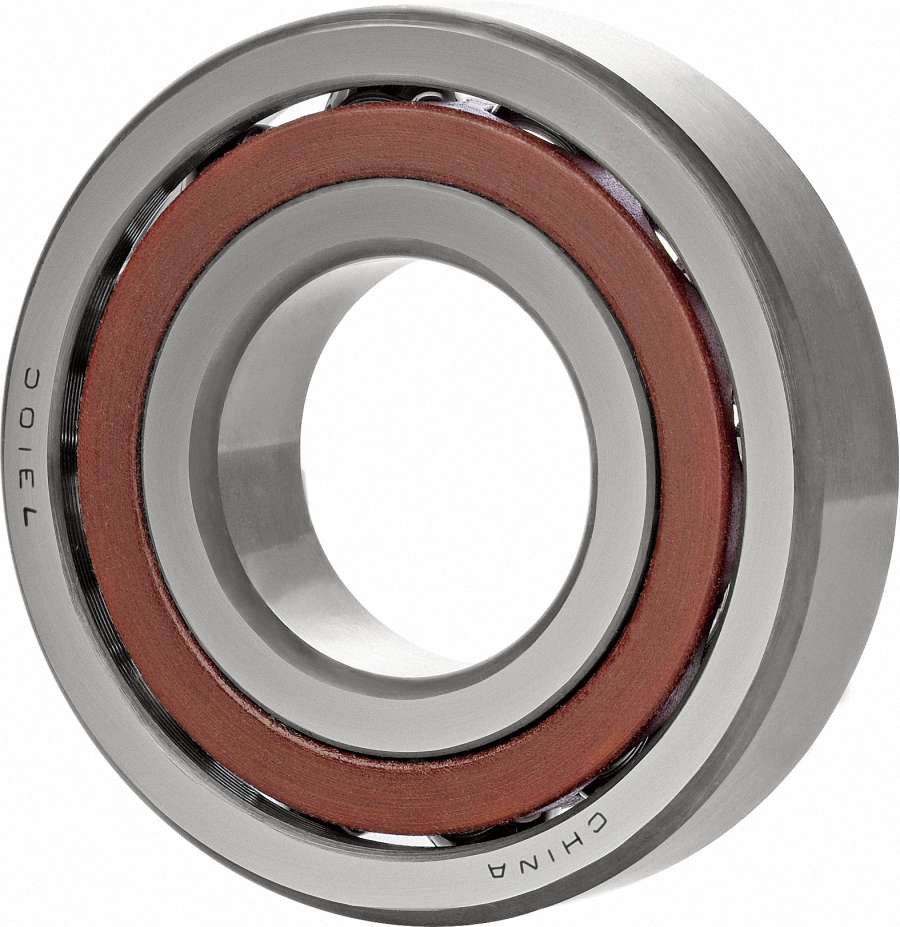

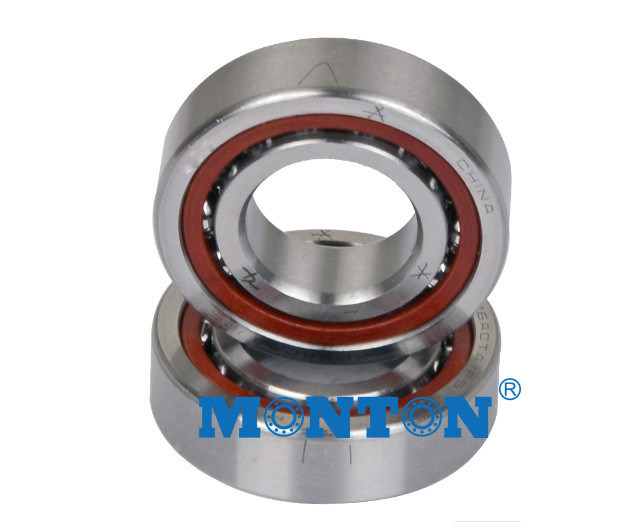

30TAC62BSUC10PN7B ball screw support bearing Thrust Axial Angular Contact Ball Bearings 0
