H7008C-2RZHQ1P4DBA
Sealed Angular Contact Ball Bearings
HSD spindles or machine tools

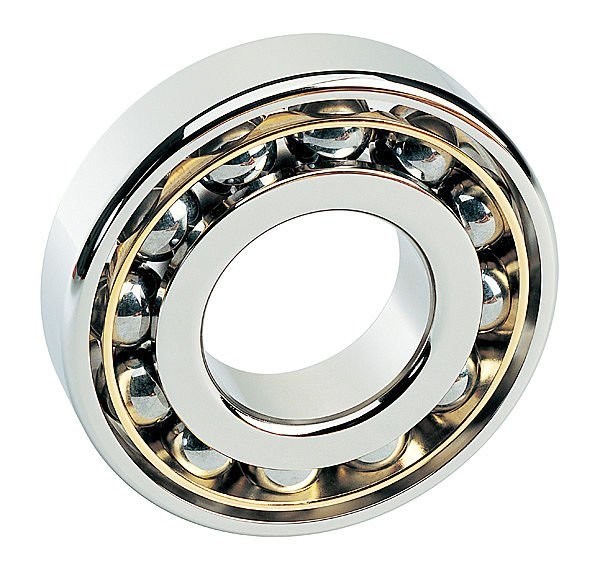

Introduction of angular contact ball bearings
Single row angular contact ball bearings: machine tool spindles, high frequency motors, gas turbines, centrifuges, small car front wheel, differential pinion shaft
Double row angular contact ball bearings: pump, blower, air compressor, various types of transmission, fuel injection pumps, printing machinery
The normal questions:
Anguar contact contact angle:
AC: 25 degree
B: 40 degree
C: 15 degree
A: 30 degress
Matching ways:
DB: back to back
DF: face to face
DT: Tandam
Preload:
A:Light
B:Medium
C:Heavy
G:Special preload
Spindle bearings HCB72 ..- C | Spindle bearings HCB70 ..- C-2RSD | Spindle bearings HCB72 ..- E |
Adjusted, in pairs or sets, contact angle α = 15 °, with ceramic balls, restricted tolerances |
Adjusted, in pairs or sets, contact angle α = 15 °, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances |
Adjusted, in pairs or sets, contact angle α = 25 °, with ceramic balls, restricted tolerances |
Spindle bearings HCB7200-C-T-P4S | Spindle bearings HCB7000-C-2RSD-T-P4S | Spindle bearings HCB7200-E-T-P4S |
Spindle bearings HCB7201-C-T-P4S | Spindle bearings HCB7001-C-2RSD-T-P4S | Spindle bearings HCB7201-E-T-P4S |
Spindle bearings HCB7202-C-T-P4S | Spindle bearings HCB7002-C-2RSD-T-P4S | Spindle bearings HCB7202-E-T-P4S |
Spindle bearings HCB7203-C-T-P4S | Spindle bearings HCB7003-C-2RSD-T-P4S | Spindle bearings HCB7203-E-T-P4S |
Spindle bearings HCB7204-C-T-P4S | Spindle bearings HCB7004-C-2RSD-T-P4S | Spindle bearings HCB7204-E-T-P4S |
Spindle bearings HCB7205-C-T-P4S | Spindle bearings HCB7005-C-2RSD-T-P4S | Spindle bearings HCB7205-E-T-P4S |
Spindle bearings HCB7206-C-T-P4S | Spindle bearings HCB7006-C-2RSD-T-P4S | Spindle bearings HCB7206-E-T-P4S |
Spindle bearings HCB7207-C-T-P4S | Spindle bearings HCB7007-C-2RSD-T-P4S | Spindle bearings HCB7207-E-T-P4S |
Spindle bearings HCB7208-C-T-P4S | Spindle bearings HCB7008-C-2RSD-T-P4S | Spindle bearings HCB7208-E-T-P4S |
Spindle bearings HCB7209-C-T-P4S | Spindle bearings HCB7009-C-2RSD-T-P4S | Spindle bearings HCB7209-E-T-P4S |
Spindle bearings HCB7210-C-T-P4S | Spindle bearings HCB7010-C-2RSD-T-P4S | Spindle bearings HCB7210-E-T-P4S |
Spindle bearings HCB7211-C-T-P4S | Spindle bearings HCB7011-C-2RSD-T-P4S | Spindle bearings HCB7211-E-T-P4S |
Spindle bearings HCB7212-C-T-P4S | Spindle bearings HCB7012-C-2RSD-T-P4S | Spindle bearings HCB7212-E-T-P4S |
Spindle bearings HCB7213-C-T-P4S | Spindle bearings HCB7013-C-2RSD-T-P4S | Spindle bearings HCB7213-E-T-P4S |
Spindle bearings HCB7214-C-T-P4S | Spindle bearings HCB7014-C-2RSD-T-P4S | Spindle bearings HCB7214-E-T-P4S |
Spindle bearings HCB7215-C-T-P4S | Spindle bearings HCB7015-C-2RSD-T-P4S | Spindle bearings HCB7215-E-T-P4S |
Spindle bearings HCB7216-C-T-P4S | Spindle bearings HCB7016-C-2RSD-T-P4S | Spindle bearings HCB7216-E-T-P4S |
Spindle bearings HCB7217-C-T-P4S | Spindle bearings HCB7017-C-2RSD-T-P4S | Spindle bearings HCB7217-E-T-P4S |
Spindle bearings HCB7218-C-T-P4S | Spindle bearings HCB7018-C-2RSD-T-P4S | Spindle bearings HCB7218-E-T-P4S |
Spindle bearings HCB7219-C-T-P4S | Spindle bearings HCB7019-C-2RSD-T-P4S | Spindle bearings HCB7219-E-T-P4S |
Spindle bearings HCB7220-C-T-P4S | Spindle bearings HCB7020-C-2RSD-T-P4S | Spindle bearings HCB7220-E-T-P4S |
Spindle bearings HCB7221-C-T-P4S | Spindle bearings HCB7021-C-2RSD-T-P4S | Spindle bearings HCB7221-E-T-P4S |
Spindle bearings HCB7222-C-T-P4S | Spindle bearings HCB7022-C-2RSD-T-P4S | Spindle bearings HCB7222-E-T-P4S |
Spindle bearings HCB7224-C-T-P4S | Spindle bearings HCB7024-C-2RSD-T-P4S | Spindle bearings HCB7224-E-T-P4S |
Spindle bearings HCB7226-C-T-P4S | Spindle bearings HCB7026-C-2RSD-T-P4S | Spindle bearings HCB7226-E-T-P4S |
Spindle bearings HCB7228-C-T-P4S | Spindle bearings HCB7028-C-2RSD-T-P4S | Spindle bearings HCB7228-E-T-P4S |
Spindle bearings HCB7230-C-T-P4S | Spindle bearings HCB7030-C-2RSD-T-P4S | Spindle bearings HCB7230-E-T-P4S |
Spindle bearings HCB7232-C-T-P4S | Spindle bearings HCB7032-C-2RSD-T-P4S | Spindle bearings HCB7232-E-T-P4S |
Spindle bearings HCB7234-C-T-P4S | Spindle bearings HCB7034-C-2RSD-T-P4S | Spindle bearings HCB7234-E-T-P4S |
Advantages of Bearing:
1.Ultra clean steel to extend bearing life by up to 80%
2.Advanced grade technology
3.Quiet and smooth operation even at high speed
4.Super finished raceways
5.Offer products in 15,25 and 40 degree angles
6.Available in arrange of Polyamide, steel and brass cage assembles
Sizes | Model | |||
d | D | B | ||
8 | 22 | 7 | H708C.T.P4A.2RZ | HSS708C.T.P4S |
8 | 22 | 7 | H708AC.T.P4A.2RZ | HSS708E.T.P4S |
9 | 24 | 7 | H709C.T.P4A.2RZ | HSS709C.T.P4S |
9 | 24 | 7 | H709AC.T.P4A.2RZ | HSS709E.T.P4S |
10 | 22 | 6 | H71900C.T.P4A.2RZ | HSS71900C.T.P4S |
10 | 22 | 6 | H71900AC.T.P4A.2RZ | HSS71900E.T.P4S |
10 | 26 | 8 | H7000C.T.P4A.2RZ | HSS7000C.T.P4S |
10 | 26 | 8 | H7000AC.T.P4A.2RZ | HSS7000E.T.P4S |
12 | 24 | 6 | H71901C.T.P4A.2RZ | HSS71901C.T.P4S |
12 | 24 | 6 | H71901AC.T.P4A.2RZ | HSS71901E.T.P4S |
12 | 28 | 8 | H7001C.T.P4A.2RZ | HSS7001C.T.P4S |
12 | 28 | 8 | H7001AC.T.P4A.2RZ | HSS7001E.T.P4S |
15 | 28 | 7 | H71902C.T.P4A.2RZ | HSS71902C.T.P4S |
15 | 28 | 7 | H71902AC.T.P4A.2RZ | HSS71902E.T.P4S |
15 | 32 | 9 | H7002C.T.P4A.2RZ | HSS7002C.T.P4S |
15 | 32 | 9 | H7002AC.T.P4A.2RZ | HSS7002E.T.P4S |
17 | 30 | 7 | H71903C.T.P4A.2RZ | HSS71903C.T.P4S |
17 | 30 | 7 | H71903AC.T.P4A.2RZ | HSS71903E.T.P4S |
17 | 35 | 10 | H7003C.T.P4A.2RZ | HSS7003C.T.P4S |
17 | 35 | 10 | H7003AC.T.P4A.2RZ | HSS7003E.T.P4S |
20 | 37 | 9 | H71904C.T.P4A.2RZ | HSS71904C.T.P4S |
20 | 37 | 9 | H71904AC.T.P4A.2RZ | HSS71904E.T.P4S |
20 | 42 | 12 | H7004C.T.P4A.2RZ | HSS7004C.T.P4S |
20 | 42 | 12 | H7004AC.T.P4A.2RZ | HSS7004E.T.P4S |
25 | 42 | 9 | H71905C.T.P4A.2RZ | HSS71905C.T.P4S |
25 | 42 | 9 | H71905AC.T.P4A.2RZ | HSS71905E.T.P4S |
25 | 47 | 12 | H7005C.T.P4A.2RZ | HSS7005C.T.P4S |
25 | 47 | 12 | H7005AC.T.P4A.2RZ | HSS7005E.T.P4S |
30 | 47 | 9 | H71906C.T.P4A.2RZ | HSS71906C.T.P4S |
30 | 47 | 9 | H71906AC.T.P4A.2RZ | HSS71906E.T.P4S |
30 | 55 | 13 | H7006C.T.P4A.2RZ | HSS7006C.T.P4S |
30 | 55 | 13 | H7006AC.T.P4A.2RZ | HSS7006E.T.P4S |
35 | 55 | 10 | H71907C.T.P4A.2RZ | HSS71907C.T.P4S |
35 | 55 | 10 | H71907AC.T.P4A.2RZ | HSS71907E.T.P4S |
35 | 62 | 14 | H7007C.T.P4A.2RZ | HSS7007C.T.P4S |
35 | 62 | 14 | H7007AC.T.P4A.2RZ | HSS7007E.T.P4S |
40 | 62 | 12 | H71908C.T.P4A.2RZ | HSS71908C.T.P4S |
40 | 62 | 12 | H71908AC.T.P4A.2RZ | HSS71908E.T.P4S |
40 | 68 | 15 | H7008C.T.P4A.2RZ | HSS7008C.T.P4S |
40 | 68 | 15 | H7008AC.T.P4A.2RZ | HSS7008E.T.P4S |
45 | 68 | 12 | H71909C.T.P4A.2RZ | HSS71909C.T.P4S |
45 | 68 | 12 | H71909AC.T.P4A.2RZ | HSS71909E.T.P4S |
45 | 75 | 16 | H7009C.T.P4A.2RZ | HSS7009C.T.P4S |
45 | 75 | 16 | H7009AC.T.P4A.2RZ | HSS7009E.T.P4S |
50 | 72 | 12 | H71910C.T.P4A.2RZ | HSS71910C.T.P4S |
50 | 72 | 12 | H71910AC.T.P4A.2RZ | HSS71910E.T.P4S |
50 | 80 | 16 | H7010C.T.P4A.2RZ | HSS7010C.T.P4S |
50 | 80 | 16 | H7010AC.T.P4A.2RZ | HSS7010E.T.P4S |
55 | 80 | 13 | H71911C.T.P4A.2RZ | HSS71911C.T.P4S |
55 | 80 | 13 | H71911AC.T.P4A.2RZ | HSS71911E.T.P4S |
55 | 90 | 18 | H7011C.T.P4A.2RZ | HSS7011C.T.P4S |
55 | 90 | 18 | H7011AC.T.P4A.2RZ | HSS7011E.T.P4S |
60 | 85 | 13 | H71912C.T.P4A.2RZ | HSS71912C.T.P4S |
60 | 85 | 13 | H71912AC.T.P4A.2RZ | HSS71912E.T.P4S |
60 | 95 | 18 | H7012C.T.P4A.2RZ | HSS7012C.T.P4S |
60 | 95 | 18 | H7012AC.T.P4A.2RZ | HSS7012E.T.P4S |
65 | 90 | 13 | H71913C.T.P4A.2RZ | HSS71913C.T.P4S |
65 | 90 | 13 | H71913AC.T.P4A.2RZ | HSS71913E.T.P4S |
65 | 100 | 18 | H7013C.T.P4A.2RZ | HSS7013C.T.P4S |
65 | 100 | 18 | H7013AC.T.P4A.2RZ | HSS7013E.T.P4S |
70 | 100 | 16 | H71914C.T.P4A.2RZ | HSS71914C.T.P4S |
70 | 100 | 16 | H71914AC.T.P4A.2RZ | HSS71914E.T.P4S |
70 | 110 | 20 | H7014C.T.P4A.2RZ | HSS7014C.T.P4S |
70 | 110 | 20 | H7014AC.T.P4A.2RZ | HSS7014E.T.P4S |
75 | 105 | 16 | H71915C.T.P4A.2RZ | HSS71915C.T.P4S |
75 | 105 | 16 | H71915AC.T.P4A.2RZ | HSS71915E.T.P4S |
75 | 115 | 20 | H7015C.T.P4A.2RZ | HSS7015C.T.P4S |
75 | 115 | 20 | H7015AC.T.P4A.2RZ | HSS7015E.T.P4S |
80 | 110 | 16 | H71916C.T.P4A.2RZ | HSS71916C.T.P4S |
80 | 110 | 16 | H71916AC.T.P4A.2RZ | HSS71916E.T.P4S |
80 | 125 | 22 | H7016C.T.P4A.2RZ | HSS7016C.T.P4S |
80 | 125 | 22 | H7016AC.T.P4A.2RZ | HSS7016E.T.P4S |
85 | 120 | 18 | H71917C.T.P4A.2RZ | HSS71917C.T.P4S |
85 | 120 | 18 | H71917AC.T.P4A.2RZ | HSS71917E.T.P4S |
85 | 130 | 22 | H7017C.T.P4A.2RZ | HSS7017C.T.P4S |
85 | 130 | 22 | H7017AC.T.P4A.2RZ | HSS7017E.T.P4S |
90 | 125 | 18 | H71918C.T.P4A.2RZ | HSS71918C.T.P4S |
90 | 125 | 18 | H71918AC.T.P4A.2RZ | HSS71918E.T.P4S |
90 | 140 | 24 | H7018C.T.P4A.2RZ | HSS7018C.T.P4S |
90 | 140 | 24 | H7018AC.T.P4A.2RZ | HSS7018E.T.P4S |
95 | 130 | 18 | H71919C.T.P4A.2RZ | HSS71919C.T.P4S |
95 | 130 | 18 | H71919AC.T.P4A.2RZ | HSS71919E.T.P4S |
95 | 145 | 24 | H7019C.T.P4A.2RZ | HSS7019C.T.P4S |
95 | 145 | 24 | H7019AC.T.P4A.2RZ | HSS7019E.T.P4S |
100 | 140 | 20 | H71920C.T.P4A.2RZ | HSS71920C.T.P4S |
100 | 140 | 20 | H71920AC.T.P4A.2RZ | HSS71920E.T.P4S |
100 | 150 | 24 | H7020C.T.P4A.2RZ | HSS7020C.T.P4S |
100 | 150 | 24 | H7020AC.T.P4A.2RZ | HSS7020E.T.P4S |
105 | 145 | 20 | H71921C.T.P4A.2RZ | HSS71921C.T.P4S |
105 | 145 | 20 | H71921AC.T.P4A.2RZ | HSS71921E.T.P4S |
105 | 160 | 26 | H7021C.T.P4A.2RZ | HSS7021C.T.P4S |
105 | 160 | 26 | H7021AC.T.P4A.2RZ | HSS7021E.T.P4S |
110 | 150 | 20 | H71922C.T.P4A.2RZ | HSS71922C.T.P4S |
110 | 150 | 20 | H71922AC.T.P4A.2RZ | HSS71922E.T.P4S |
110 | 170 | 28 | H7022C.T.P4A.2RZ | HSS7022C.T.P4S |
110 | 170 | 28 | H7022AC.T.P4A.2RZ | HSS7022E.T.P4S |
120 | 165 | 22 | H71924C.T.P4A.2RZ | HSS71924C.T.P4S |
120 | 165 | 22 | H71924AC.T.P4A.2RZ | HSS71924E.T.P4S |
120 | 180 | 28 | H7024C.T.P4A.2RZ | HSS7024C.T.P4S |
120 | 180 | 28 | H7024AC.T.P4A.2RZ | HSS7024E.T.P4S |
130 | 180 | 24 | H71926C.T.P4A.2RZ | HSS71926C.T.P4S |
130 | 180 | 24 | H71926AC.T.P4A.2RZ | HSS71926E.T.P4S |
