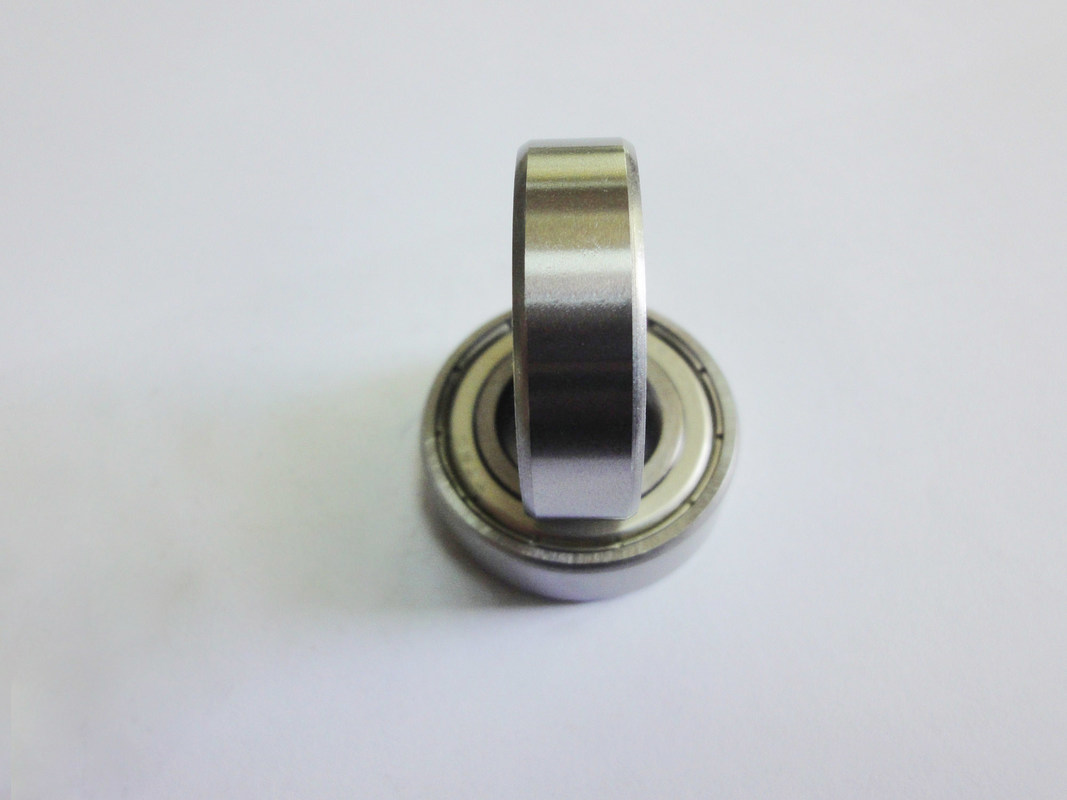

Monton bearings can supply the standard deep groove ball bearings. The dimension range:8mm~100mm The vibration:Z1V1~Z4V4 The material:High quality GCr15 steel bar The main application:The motor,The refrigerator,the washing machine,the fans and other mechanical equipment In the same time,we also supply the non-standard deep groove ball bearings,welcome here if you have any special demands |
Here below is our catallogue lists:
Bearing No. | Boundary Dimensions(mm) | Basic Load Rating (KN) | Weight | |||||||
Open | Shields | Seals | d | D | B | Cr. | Cor. | (Kg) | ||
6000 | 6000-Z | 6000-2Z | 6000-RS | 6000-2RS | 10 | 26 | 8 | 4.58 | 1.98 | 0.02 |
6001 | 6001-Z | 6001-2Z | 6001-RS | 6001-2RS | 12 | 28 | 8 | 5.1 | 2.36 | 0.02 |
6002 | 6002-Z | 6002-2Z | 6002-RS | 6002-2RS | 15 | 32 | 9 | 5.6 | 2.85 | 0.033 |
6003 | 6003-Z | 6003-2Z | 6003-RS | 6003-2RS | 17 | 35 | 10 | 6 | 3.25 | 0.04 |
6004 | 6004-Z | 6004-2Z | 6004-RS | 6004-2RS | 20 | 42 | 12 | 9.4 | 5 | 0.07 |
6005 | 6005-Z | 6005-2Z | 6005-RS | 6005-2RS | 25 | 47 | 12 | 10 | 5.85 | 0.083 |
6006 | 6006-Z | 6006-2Z | 6006-RS | 6006-2RS | 30 | 55 | 13 | 12.7 | 8 | 0.126 |
6007 | 6007-Z | 6007-2Z | 6007-RS | 6007-2RS | 35 | 62 | 14 | 16 | 10.2 | 0.163 |
6008 | 6008-Z | 6008-2Z | 6008-RS | 6008-2RS | 40 | 68 | 15 | 16.6 | 11.6 | 0.2 |
6009 | 6009-Z | 6009-2Z | 6009-RS | 6009-2RS | 45 | 75 | 16 | 20 | 14.3 | 0.253 |
6010 | 6010-Z | 6010-2Z | 6010-RS | 6010-2RS | 50 | 80 | 16 | 20.8 | 15.6 | 0.282 |
6011 | 6011-Z | 6011-2Z | 6011-RS | 6011-2RS | 55 | 90 | 18 | 28.5 | 21.2 | 0.409 |
6012 | 6012-Z | 6012-2Z | 6012-RS | 6012-2RS | 60 | 95 | 18 | 29 | 23.2 | 0.413 |
6013 | 6013-Z | 6013-2Z | 6013-RS | 6013-2RS | 65 | 100 | 18 | 30.5 | 25 | 0.464 |
6014 | 6014-Z | 6014-2Z | 6014-RS | 6014-2RS | 70 | 110 | 20 | 38 | 31 | 0.642 |
6015 | 6015-Z | 6015-2Z | 6015-RS | 6015-2RS | 75 | 115 | 20 | 39 | 33.5 | 0.676 |
6016 | 6016-Z | 6016-2Z | 6016-RS | 6016-2RS | 80 | 125 | 22 | 47.5 | 40 | 0.893 |
6201 | 6201-Z | 6201-2Z | 6201-RS | 6201-2RS | 12 | 32 | 10 | 6.8 | 3.05 | 0.039 |
6202 | 6202-Z | 6202-2Z | 6202-RS | 6202-2RS | 15 | 35 | 11 | 7.8 | 3.75 | 0.045 |
6203 | 6203-Z | 6203-2Z | 6203-RS | 6203-2RS | 17 | 40 | 12 | 9.58 | 4.78 | 0.064 |
6204 | 6204-Z | 6204-2Z | 6204-RS | 6204-2RS | 20 | 47 | 14 | 12.7 | 6.55 | 0.11 |
6205 | 6205-Z | 6205-2Z | 6205-RS | 6205-2RS | 25 | 52 | 15 | 14 | 7.8 | 0.133 |
6206 | 6206-Z | 6206-2Z | 6206-RS | 6206-2RS | 30 | 62 | 16 | 19.3 | 11.2 | 0.201 |
6207 | 6207-Z | 6207-2Z | 6207-RS | 6207-2RS | 35 | 72 | 17 | 25.5 | 15.3 | 0.299 |
6208 | 6208-Z | 6208-2Z | 6208-RS | 6208-2RS | 40 | 80 | 18 | 29 | 18 | 0.382 |
6209 | 6209-Z | 6209-2Z | 6209-RS | 6209-2RS | 45 | 85 | 19 | 31 | 20.4 | 0.407 |
6210 | 6210-Z | 6210-2Z | 6210-RS | 6210-2RS | 50 | 90 | 20 | 36.5 | 24 | 0.478 |
6211 | 6211-Z | 6211-2Z | 6211-RS | 6211-2RS | 55 | 100 | 21 | 43 | 29 | 0.632 |
6212 | 6212-Z | 6212-2Z | 6212-RS | 6212-2RS | 60 | 110 | 22 | 52 | 36 | 0.807 |
6213 | 6213-Z | 6213-2Z | 6213-RS | 6213-2RS | 65 | 120 | 23 | 60 | 41.5 | 1.03 |
6214 | 6214-Z | 6214-2Z | 6214-RS | 6214-2RS | 70 | 125 | 24 | 62 | 44 | 1.11 |
6215 | 6215-Z | 6215-2Z | 6215-RS | 6215-2RS | 75 | 130 | 25 | 66 | 49.5 | 1.7 |
6216 | 6216-Z | 6216-2Z | 6216-RS | 6216-2RS | 80 | 140 | 28 | 72.5 | 53 | 2.1 |
6217 | 6217-Z | 6217-2Z | 6217-RS | 6217-2RS | 85 | 150 | 28 | 84 | 62 | 2.1 |
6218 | 6218-2Z | 6218-2RS | 90 | 160 | 30 | 96.5 | 72 | 2.26 | ||
6219 | 6219-2Z | 6219-2RS | 95 | 170 | 32 | 108 | 81.5 | 2.79 | ||
6220 | 6220-2Z | 6220-2RS | 100 | 180 | 34 | 122 | 93 | 3.36 | ||
6221 | 6221-2Z | 6221-2RS | 105 | 190 | 36 | 133 | 105 | 3.99 | ||
6300 | 6300-Z | 6300-2Z | 6300-RS | 6300-2RS | 10 | 35 | 11 | 8.15 | 3.45 | 0.057 |
6301 | 6301-Z | 6301-2Z | 6301-RS | 6301-2RS | 12 | 37 | 12 | 9.65 | 4.15 | 0.064 |
6302 | 6302-Z | 6302-2Z | 6302-RS | 6302-2RS | 15 | 42 | 13 | 11.4 | 5.4 | 0.09 |
6303 | 6303-Z | 6303-2Z | 6303-RS | 6303-2RS | 17 | 47 | 14 | 13.4 | 6.55 | 0.117 |
6304 | 6304-Z | 6304-2Z | 6304-RS | 6304-2RS | 20 | 52 | 15 | 15.8 | 7.8 | 0.155 |
6305 | 6305-Z | 6305-2Z | 6305-RS | 6305-2RS | 25 | 62 | 17 | 22.4 | 11.4 | 0.24 |
6306 | 6306-Z | 6306-2Z | 6306-RS | 6306-2RS | 30 | 72 | 19 | 26.5 | 16.3 | 0.363 |
6307 | 6307-Z | 6307-2Z | 6307-RS | 6307-2RS | 35 | 80 | 21 | 33.5 | 19 | 0.481 |
6308 | 6308-Z | 6308-2Z | 6308-RS | 6308-2RS | 40 | 90 | 23 | 42.5 | 25 | 0.654 |
6309 | 6309-Z | 6309-2Z | 6309-RS | 6309-2RS | 45 | 100 | 25 | 53 | 31.5 | 0.869 |
6310 | 6310-Z | 6310-2Z | 6310-RS | 6310-2RS | 50 | 110 | 27 | 61.8 | 38 | 1.12 |
6311 | 6311-Z | 6311-2Z | 6311-RS | 6311-2RS | 55 | 120 | 29 | 71.5 | 47.5 | 1.43 |
6312 | 6312-Z | 6312-2Z | 6312-RS | 6312-2RS | 60 | 130 | 31 | 82 | 52 | 1.79 |
6313 | 6313-Z | 6313-2Z | 6313-RS | 6313-2RS | 65 | 140 | 33 | 92.5 | 59.5 | 2.08 |
6314 | 6314-Z | 6314-2Z | 6314-RS | 6314-2RS | 70 | 150 | 35 | 104 | 68 | 2.52 |
6315 | 6315-Z | 6315-2Z | 6315-RS | 6315-2RS | 75 | 160 | 37 | 113 | 77 | 3.02 |
6316 | 6316-Z | 6316-2Z | 6316-RS | 6316-2RS | 80 | 170 | 39 | 123 | 86.5 | 3.59 |
6317 | 6317-Z | 6317-2Z | 6317-RS | 6317-2RS | 85 | 180 | 41 | 133 | 96.5 | 4.23 |
6318 | 6318-2Z | 6318-2RS | 90 | 190 | 43 | 143 | 107 | 4.91 | ||
6319 | 6319-2Z | 6319-2RS | 95 | 200 | 45 | 153 | 118 | 5.67 | ||
6320 | 6320-2Z | 6320-2RS | 100 | 215 | 47 | 173 | 141 | 7 | ||
6321 | 6321-2Z | 6321-2RS | 105 | 225 | 49 | 184 | 153 | 8.05 | ||
6403 | 6403-2Z | 6403-2RS | 17 | 62 | 17 | 22.4 | 11.4 | 0.27 | ||
6404 | 6404-2Z | 6404-2RS | 20 | 72 | 19 | 29 | 16.3 | 0.414 | ||
6405 | 6405-2Z | 6405-2RS | 25 | 80 | 21 | 36 | 19.3 | 0.549 | ||
6406 | 6406-2Z | 6406-2RS | 30 | 90 | 23 | 47.5 | 24.5 | 0.715 | ||
6407 | 6407-2Z | 6407-2RS | 35 | 100 | 25 | 56.8 | 29.5 | 0.954 | ||
6408 | 6408-2Z | 6408-2RS | 40 | 110 | 27 | 63.7 | 36.6 | 1.23 | ||
6409 | 6409-2Z | 6409-2RS | 45 | 120 | 29 | 77.5 | 45.5 | 1.54 | ||
6410 | 6410-2Z | 6410-2RS | 50 | 130 | 31 | 92.2 | 55.2 | 1.89 | ||
6411 | 6411-2Z | 6411-2RS | 55 | 140 | 33 | 100 | 62.5 | 2.29 | ||
6412 | 6412-2Z | 6412-2RS | 60 | 150 | 35 | 108 | 70.1 | 2.78 | ||
6413 | 6413-2Z | 6413-2RS | 65 | 160 | 37 | 118.1 | 78.6 | 3.28 | ||
6414 | 6414-2Z | 6414-2RS | 70 | 180 | 42 | 137 | 99.5 | 4.85 | ||
6415 | 6415-2Z | 6415-2RS | 75 | 190 | 45 | 153.7 | 114.32 | 5.74 | ||
16001 | 16001-2Z | 16001-2RS | 12 | 28 | 7 | 5.094 | 2.36 | 0.02 | ||
16002 | 16002-2Z | 16002-2RS | 15 | 32 | 8 | 5.594 | 2.86 | 0.027 | ||
16003 | 16003-2Z | 16003-2RS | 17 | 35 | 8 | 5.999 | 3.265 | 0.032 | ||
16004 | 16004-2Z | 16004-2RS | 20 | 42 | 8 | 9.371 | 4.972 | 0.05 | ||
16005 | 16005-2Z | 16005-2RS | 25 | 47 | 8 | 7 | 4.6 | 0.053 | ||
16006 | 16006-2Z | 16006-2RS | 30 | 55 | 9 | 11.2 | 7.4 | 0.087 | ||
16007 | 16007-2Z | 16007-2RS | 35 | 62 | 9 | 11.7 | 8.2 | 0.111 | ||
16008 | 16008-2Z | 16008-2RS | 40 | 68 | 9 | 12.6 | 9.65 | 0.125 | ||
16009 | 16009-2Z | 16009-2RS | 45 | 75 | 10 | 14.9 | 11.4 | 0.17 | ||
16010 | 16010-2Z | 16010-2RS | 50 | 80 | 10 | 15.4 | 12.4 | 0.188 | ||
16011 | 16011-2Z | 16011-2RS | 55 | 90 | 11 | 19.4 | 16.3 | 0.26 | ||
16012 | 16012-2Z | 16012-2RS | 60 | 95 | 11 | 20 | 17.5 | 0.28 | ||
16013 | 16013-2Z | 16013-2RS | 65 | 100 | 11 | 20.5 | 18.7 | 0.3 | ||
16014 | 16014-2Z | 16014-2RS | 70 | 110 | 13 | 26.8 | 23.6 | 0.433 | ||
16015 | 16015-2Z | 16015-2RS | 75 | 115 | 13 | 27.6 | 25.3 | 0.457 | ||
16016 | 16016-2Z | 16016-2RS | 80 | 125 | 14 | 32 | 29.6 | 0.597 | ||
16017 | 16017-2Z | 16017-2RS | 85 | 130 | 14 | 33 | 31.5 | 0.626 | ||
16018 | 16018-2Z | 16018-2RS | 90 | 140 | 16 | 41.5 | 29.5 | 0.848 | ||
16019 | 16019-2Z | 16019-2RS | 95 | 145 | 16 | 43 | 42 | 0.89 | ||
16020 | 16020-2Z | 16020-2RS | 100 | 150 | 16 | 43.9 | 44.3 | 0.91 | ||
16022 | 16022-2Z | 16022-2RS | 110 | 170 | 19 | 57.5 | 56.7 | 1.46 | ||
16024 | 16024-2Z | 16024-2RS | 120 | 180 | 19 | 58.8 | 60.4 | 1.8 | ||
604 | 604-2Z | 604-2RS | 4 | 12 | 4 | 0.97 | 0.36 | 0.0021 | ||
605 | 605-2Z | 605-2RS | 5 | 14 | 5 | 1.33 | 0.505 | 0.0035 | ||
606 | 606-2Z | 606-2RS | 6 | 17 | 6 | 2.19 | 0.865 | 0.006 | ||
607 | 607-2Z | 607-2RS | 7 | 19 | 6 | 2.24 | 0.91 | 0.008 | ||
608 | 608-2Z | 608-2RS | 8 | 22 | 7 | 3.35 | 1.4 | 0.012 | ||
609 | 609-2Z | 609-2RS | 9 | 24 | 7 | 3.4 | 1.45 | 0.014 | ||
624 | 624-2Z | 624-2RS | 4 | 13 | 5 | 1.15 | 0.4 | 0.0032 | ||
625 | 625-2Z | 625-2RS | 5 | 16 | 5 | 1.76 | 0.68 | 0.005 | ||
626 | 626-2Z | 626-2RS | 6 | 19 | 6 | 2.34 | 0.885 | 0.008 | ||
627 | 627-2Z | 627-2RS | 7 | 22 | 7 | 3.35 | 1.4 | 0.013 | ||
628 | 628-2Z | 628-2RS | 8 | 24 | 8 | 4 | 1.59 | 0.017 | ||
629 | 629-2Z | 629-2RS | 9 | 26 | 8 | 4.55 | 1.96 | 0.019 | ||
685 | 685-2Z | 685-2RS | 5 | 11 | 3 | 0.715 | 0.282 | 0.0011 | ||
686 | 686-2Z | 686-2RS | 6 | 13 | 3.5 | 1.08 | 0.44 | 0.0019 | ||
687 | 687-2Z | 687-2RS | 7 | 14 | 3.5 | 1.17 | 0.505 | 0.0021 | ||
688 | 688-2Z | 688-2RS | 8 | 16 | 4 | 1.61 | 0.715 | 0.0031 | ||
689 | 689-2Z | 689-2RS | 9 | 17 | 4 | 1.72 | 0.82 | 0.0032 | ||
694 | 694-2Z | 694-2RS | 4 | 11 | 4 | 0.715 | 0.276 | 0.0018 | ||
695 | 695-2Z | 695-2RS | 5 | 13 | 4 | 1.08 | 0.43 | 0.0024 | ||
696 | 696-2Z | 696-2RS | 6 | 15 | 5 | 1.35 | 0.53 | 0.0038 | ||
697 | 697-2Z | 697-2RS | 7 | 17 | 5 | 1.61 | 0.715 | 0.0052 | ||
698 | 698-2Z | 698-2RS | 8 | 19 | 6 | 1.99 | 0.865 | 0.0073 | ||
699 | 699-2Z | 699-2RS | 9 | 20 | 6 | 2.48 | 1.09 | 0.0082 | ||
6800 | 6800-2Z | 6800-2RS | 10 | 19 | 5 | 1.83 | 0.925 | 0.005 | ||
6801 | 6801-2Z | 6801-2RS | 12 | 21 | 5 | 1.92 | 1.04 | 0.006 | ||
6802 | 6802-2Z | 6802-2RS | 15 | 24 | 5 | 2.08 | 1.26 | 0.007 | ||
6803 | 6803-2Z | 6803-2RS | 17 | 26 | 5 | 2.23 | 1.46 | 0.008 | ||
6804 | 6804-2Z | 6804-2RS | 20 | 32 | 7 | 4 | 2.47 | 0.019 | ||
6805 | 6805-2Z | 6805-2RS | 25 | 37 | 7 | 4.3 | 2.95 | 0.022 | ||
6806 | 6806-2Z | 6806-2RS | 30 | 42 | 7 | 4.7 | 3.65 | 0.026 | ||
6807 | 6807-2Z | 6807-2RS | 35 | 47 | 7 | 4.9 | 4.05 | 0.029 | ||
6900 | 6900-2Z | 6900-2RS | 10 | 22 | 6 | 2.7 | 1.27 | 0.009 | ||
6901 | 6901-2Z | 6901-2RS | 12 | 24 | 6 | 2.89 | 1.46 | 0.011 | ||
6902 | 6902-2Z | 6902-2RS | 15 | 28 | 7 | 3.65 | 2 | 0.016 | ||
6903 | 6903-2Z | 6903-2RS | 17 | 30 | 7 | 4.65 | 2.58 | 0.018 | ||
6904 | 6904-2Z | 6904-2RS | 20 | 37 | 9 | 6.4 | 3.7 | 0.036 | ||
6905 | 6905-2Z | 6905-2RS | 25 | 42 | 9 | 7.05 | 4.55 | 0.042 | ||
6906 | 6906-2Z | 6906-2RS | 30 | 47 | 9 | 7.25 | 5 | 0.048 | ||
6907 | 6907-2Z | 6907-2RS | 35 | 55 | 10 | 9.55 | 6.85 | 0.074 | ||
62/22 | 62/22-2Z | 62/22-2RS | 22 | 50 | 14 | 12.9 | 6.8 | 0.12 | ||
62/28 | 62/28-2Z | 62/28-2RS | 28 | 58 | 16 | 16.6 | 9.5 | 0.171 | ||
63/22 | 63/22-2Z | 63/22-2RS | 22 | 56 | 16 | 18.4 | 9.25 | 0.18 | ||
63/28 | 63/28-2Z | 63/28-2RS | 28 | 68 | 18 | 26.7 | 14 | 0.287 | ||
411280 | 30 | 72 | 28/25 | 25.7 | 15.3 | 0.464 |
