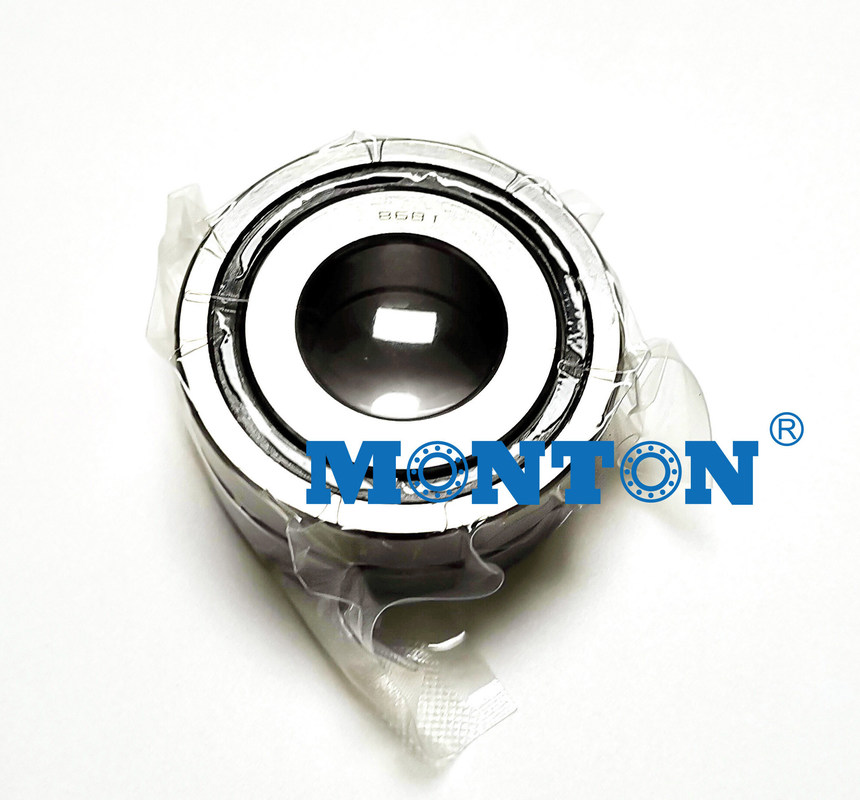

S7202CD/P4A high super precision angular contact ball bearings skf bearing

d - 15 mm

D - 35 mm

B - 11 mm

d₁ - 21.4 mm

d₂ - 21.4 mm

D₂ - 30.7 mm

r_1,2 - min. - 0.6 mm

r_3,4 - min. - 0.3 mm

a - 9 mm

d_a - min. - 19.2 mm

d_a - max. - 20.8 mm

d_b - min. - 19.2 mm

d_b - max. - 20.8 mm

D_a - max. - 30.8 mm

D_b - max. - 32.6 mm

r_a - max. - 0.6 mm

r_b - max. - 0.3 mm

Basic dynamic load rating - C - 7.4 kN

Basic static load rating - C₀ - 3.4 kN

Fatigue load limit - P_u - 0.14 kN

Limiting speed for grease lubrication - 48000 r/min

Ball - D_w - 6.35 mm

Ball - z - 10

Calculation factor - f₀ - 8.5

Preload class A - G_A - 30 N

Preload class B - G_B - 60 N

Preload class C - G_C - 120 N

Preload class D - G_D - 240 N

Calculation factor - f - 1.03

Calculation factor - f₁ - 1

Calculation factor - f_2A - 1

Calculation factor - f_2B - 1.01

Calculation factor - f_2C - 1.03

Calculation factor - f_2D - 1.05

Calculation factor - f_HC - 1

Preload class A - 19 N/micron

Preload class B - 26 N/micron

Preload class C - 35 N/micron

Preload class D - 49 N/micron

Mass bearing - 0.044 kg

• Model Number: S7202 CD/P4A
• Inner Diameter:35mm Outer Diameter:15mm Width:11mm
• Type:Angular Contact Ball Bearings
• Update date:2021-06-16
• Application:impression material,security equipment,sucker industry,knitted fabrics,tower crane,Tool,metal mold,paper processing machine,key lock,hydraulic connector,respirator
• Similar models:NACHI 7202BDB FBJ 7202B NSK 7202CTRSU ISO 7202CDB CYSD 7202CDT FAG 7202-B-JP KOYO 7202CPA CYSD 7202DB ISO DAC38720236/33 SKF 7202BECBP
• BEARING POWER International Trading Co.,Ltd. specialize in S7202CD/P4A products,there is large inventory of SKF S7202 CD/P4A . We has been built up long-term cooperation with SKF company, could make a bulk order of the S7202 CD/P4A Which SKF S7202CD/P4A is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express.Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
