Name: NSK 17TAC47BDDGSUC10PN7BP4 SUPER PRECISION ANGULAR CONTACT THRUST BALL BEARINGS
Brand: MONTON
SKU: 17TAC47BDDGSUC10PN7BP4
Rating: 4.5 (111 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: GCr15

Accuracy: P4 Or P2

Vibration: Z2V2 Or Z3V3

Contact Angle: 25 Or 15degree

Packing: Single Packing+carton+wooden Case

Matched Ways: Universal Matching

Market: Germany,Italy,Japan

Main Customers: HSD,WMZ.MAG,DMG

High Light:

precision ball bearings

thin section angular contact bearings

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: 17TAC47BDDGSUC10PN7BP4

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 10000PCS/WEEK

Gallery

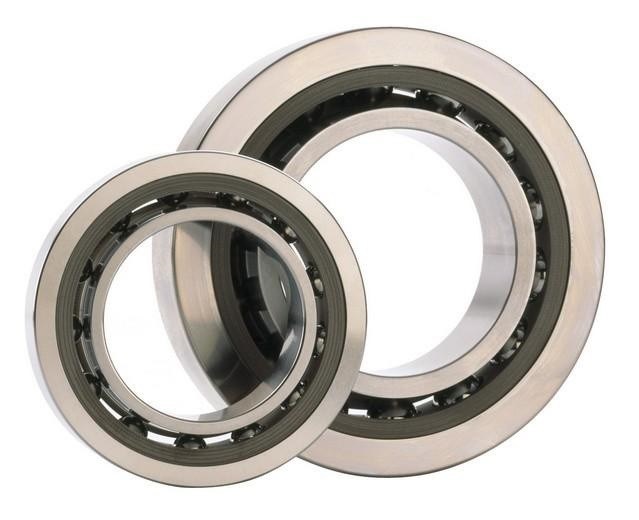

NSK 17TAC47BDDGSUC10PN7BP4 SUPER PRECISION ANGULAR CONTACT THRUST BALL BEARINGS

Product Description

Introduction of angular contact ball bearings

The normal questions when chooing the angular contact ball bearings:

Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress

Anguar contact contact angle:

P4 or P5

Matching ways:

DB: back to back

DF: face to face

DT: Tandam

Preload:

A:Light

B:Medium

C:Heavy

G:Special preload

We can supply:We can supply the below series:

719 series ID range:10mm~200mm

718series ID range:10mm~200mm

70series ID range:10mm~200mm

72series ID range:10mm~200mm

Angular Contact Thrust Ball Bearing 718 Serise
model number	d	D	B	Cr Cor	Grease Oil	Cr Cor	Grease Oil


71800C	10	19	5	1.8 1.1	74000 119000	1.7 1.1	69000 109000
71801C	12	21	5	2.0 1.4	69000 109000	1.9 1.3	62000 94000
71802C	15	24	5	2.2 1.8	59000 89000	2.1 1.7	53000 79000
71803C	17	26	5	2.3 1.9	52000 79000	2.1 1.8	49000 74000
71804C	20	32	7	3.9 3.4	44000 66000	3.7 3.2	39000 59000
71805C	25	37	7	4.2 4.1	37000 55000	3.9 3.9	33000 49000
71806C	30	42	7	4.4 4.8	31000 47000	4.1 4.5	27000 42000
71807C	35	47	7	4.6 5.5	25000 39000	4.3 5.2	23000 37000
71808C	40	52	7	4.8 6.2	23000 37000	4.5 5.8	19000 33000
71809C	45	58	7	4.9 6.7	19000 33000	4.6 6.3	17000 29000
71810C	50	65	7	7.4 10.0	17000 29000	6.9 9.5	15000 25000
71811C	55	72	9	10.2 13.8	15000 25000	9.6 13.1	14000 23000
71812C	60	78	10	13.4 18.0	14000 23000	12.6 17.0	13000 21000
71813C	65	85	10	13.4 18.8	13000 21000	12.6 17.8	12000 19000
71814C	70	90	10	13.8 20.3	12000 19000	13.0 19.1	11000 18000
71815C	75	95	10	14.2 21.7	11000 18000	13.3 20.5	10000 17000
71816C	80	100	10	14.5 23.1	10000 17000	13.6 21.8	85000 15000
71817C	85	110	13	21.5 32.2	9000 16000	20.2 30.5	8000 14000
71818C	90	115	13	21.7 33.5	8500 15000	20.4 31.6	7500 13000
71819C	95	120	13	21.9 34.7	8000 14000	20.6 32.8	7500 13000
71820C	100	125	13	22.5 37.0	7500 13000	21.2 34.9	7000 12000
71821C	105	130	13	22.7 38.3	7500 13000	21.3 36.1	7000 12000
71822C	110	140	16	31.8 51.6	7000 12000	29.9 48.7	6500 11000
71824C	120	150	16	33.1 56.9	60000 10000	31.3 53.7	5700 9000
71826C	130	165	18	38.7 67.6	5700 9000	36.3 63.8	5000 8000
71828C	140	175	18	44.8 79.2	5000 8000	42.0 74.7	4600 7500
71830C	150	190	20	51.2 92.0	4600 7500	48.0 86.8	4000 6500
71832C	160	200	20	52.4 97.7	4000 6500	49.2 92.2	3800 6000
71834C	170	215	22	66.5 123.4	3800 6000	62.4 116.5	3300 5300

We can provide different kinds of bearings which include deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, self-aligning ball bearings, angular contact ball bearings, thrust ball bearings, thrust roller bearings, pillow block bearings, needle roller bearings, joint bearings, high-temperature resistant bearings, Stainless bearings, plastic bearings, ceramic bearings, adapter sleeve and linear bearings. In addition, the company can customize according to customer needs various types of products, such as a variety of large-scale non-standard products.
