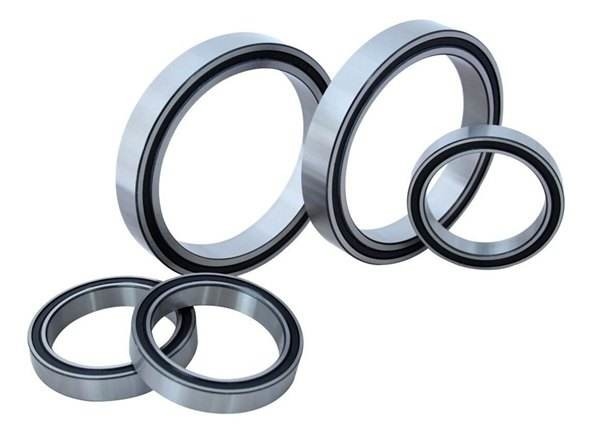

Real Slim Sealed Chrome Steel Ball Bearing Thin Section With Plastic Cage

Real Slim Sealed Chrome Steel Ball Bearing Thin Section With Plastic Cage
Features Gallery Product Description Request A Quote
Material: GCr15 Or 440C Or Other Kinds Stainless Steel
Accuracy: P0/P6/P5
Seal Type: 2RS Or ZZ Or Open
Cage Material: Nylon Or Brass Or Steel
Origin: Luoyang,China
Dimension: 88.9*101.6*6.35
High Light:

thin section ball bearings


slim section bearings

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001-2008
Model Number: KA035CP0
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

Thin Section Ball Bearings


Production specification
Product name: High precision thin wall bearing KA035CP0
Model Number: KA035CP0
SIZE:(dxDxH)mm 88.9*101.6*6.35
Number of Row: Single rows
Race(ring)material Chrome steel
Cage(retainer) material: Brass or plastic
Type: Ball
Precision Rating: P0, P6,P5,P4,P2
Seals Type: Open or 2Z, Z, RS, 2RS
Brand Name: Monton
Place of Origin: Luoyang
Quality control: 100% inspection before shipment
Quality standard: ISO 9001:2008
Delivery time: For inventory goods, 3-5 working days after deposit, others depends on the order.
Trade terms: FOB,FCA, EXW,CIF
Payment terms: TT 30% deposit, 70% balance before shipment


Thin-walled bearings for extremely thin section bearing, but also to achieve a product miniaturization and lightweight. Diversity of products has expanded its range of purposes.


Product Features
In order to obtain a low friction bearing torque, high rigidity, good rotation accuracy, use a small diameter steel balls. Using a hollow shaft, ensuring lightweight space and wiring. Thin-walled bearings for extremely thin section bearing, but also to achieve a product miniaturization and lightweight. Diversity of products has expanded its range of purposes.
Thin-walled 6700,6800 series dust cover various forms, forms with flange, stainless steel form, wide forms and other varieties.


Lubrication purpose
The purpose is to reduce the lubrication of rolling bearings inside the bearing friction and wear, to prevent burning stick, lubrication utility as follows.
Reduce friction and wear
In the mutual contact portion of the ferrule, and the rolling elements constituting the bearing retainer, to prevent the metal contacts, reducing friction and wear.
Extend the fatigue life of rolling fatigue life, in rotation, the rolling contact surfaces oiled, is extended. Conversely, low viscosity oil, lubricant film thickness is not good, is shortened.

Discharge of frictional heat, cooling
You can cycle to the oil law and other oil heat generated by the friction of the discharge, or heat coming from the external cooling. Prevent bearing overheating and prevent oil itself aging.
Also prevent dust and debris inside the bearing, or prevent rust, corrosion effect.


Repair Cheng

One, bearing installation and removal must be careful
Different kinds and sizes of thin-walled deep groove ball bearings, the installation methods and tools is not the same, which has a mechanical or hydraulic. This is mainly to explain some common installation method and some basic precautions.

First, do not install on a ball hard, it will cause local overloading ball and the contact surface, resulting in premature bearing failure.

Second, do not use hard tools, such as hammers, beat the bearing surface screwdriver and the like, which would allow the bearing outer ring fracture or crack.

Second, the bearing cleaning
Clean environment is very important for bearings. Thin wall deep groove ball bearing ring rolling surface and rolling element surface roughness precision about 1/10 μm, so that a smooth ball surface if contaminated, the impact is very serious. Lubricating layer between the rolling surface is generally 0.2 ~ 1 μm, greater than the size of the particles of lubricant-type impurity will be rolling over the rolling elements in aligning roller bearing steel produced in the partial pressure will eventually lead to permanent materials fatigue. In addition to this, the external environment in the dust particle size of up to 10 μm, spherical roller bearings will swap damage. Because of this, how important clean working environment for the bearing is ah.


Third, the process of detecting bearing
During use heat to dry up by induction bearing operating temperature, if the temperature exceeds a predetermined limit will automatically alarm if found, to prevent burning shaft conditions. Often represented by high-temperature bearings in unusual circumstances. High temperature is also harmful to the bearing lubricant. Sometimes thin-walled deep groove ball bearing overheating can be attributed to the bearing lubricant. If the bearing temperature over 125 ℃ even move to reduce long-term bearing life. Causes high temperature bearings include: insufficient lubrication bearing lubricant may be unqualified, which contains impurities, when the load is too large may also be enough space inside the bearing seal that friction and so on.



Application: transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller-skating shoes, etc.

KA020CP0/ SA020CP0/ CSCA020 2 2.5 2.186 2.314 680 393 0.1
KA025CP0/ SA025CP0/ CSCA025 2.5 3 2.686 2.814 830 442 0.13
KA030CP0/ SA030CP0/ CSCA030 3.000 3.500 3.186 3.314 990 487 0.15
KA035CP0/ SA035CP0/CSCA035 3.500 4.000 3.686 3.814 1140 530 0.18
KA040CP0/ SA040CP0/CSCA040 4.000 4.500 4.186 4.314 1290 571 0.19
KA042CP0/ SA042CP0/ CSCA042 4.250 4.75 4.436 4.564 1370 591 0.20
KA045CP0/ SA045CP0/CSCA045 4.500 5.000 4.686 4.814 1440 610 0.22
KA047CP0/ SA047CP0/CSCA047 4.750 5.250 4.936 5.064 1520 629 0.23
KA050CP0/ SA050CP0/ CSCA050 5.000 5.500 5.186 5.314 1590 648 0.24
KA055CP0/ SA055CP0/ CSCA055 5.500 6.000 5.686 5.814 1750 685 0.25
KA060CP0/ SA060CP0/CSCA060 6.000 6.5 6.186 6.314 1900 720 0.28
KA065CP0/ SA065CP0/ CSCA065 6.500 7.000 6.686 6.814 2050 754 0.30
KA070CP0/ SA070CP0/ CSCA070 7.000 7.500 7.186 7.314 2200 787 0.31
KA075CP0/SA075CP0/CSCA075 7.500 8.000 7.686 7.814 2350 820 0.34
KA080CP0/SA080CP0/CSCA080 8.000 8.500 8.186 8.314 2500 851 0.38
KA090CP0/SA090CP0/CSCA090 9.000 9.500 9.186 9.314 2810 912 0.44
KA100CP0/ SA100CP0/ CSCA100 10.000 10.500 10.186 10.314 3110 969 0.50
KA110CP0/ SA110CP0/CSCA110 11.000 11.500 11.186 11.314 3410 1025 0.52
KA120CP0/SA120CP0/CSCA120 12.000 12.500 12.186 12.314 3720 1078 0.56


Basic specification: High precision thin wall bearing KA035CP0


High precision thin wall bearing KA035CP0
