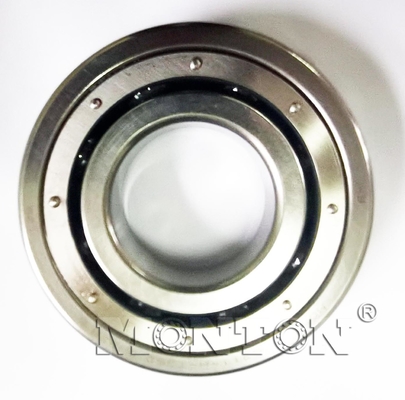

7309A5hU9 45*100*25mm Ultra-Low Temperature Bearing for Liquid Oxygen Pump bearing

1
MOQ
USD
Price
7309A5hU9 45*100*25mm Ultra-Low Temperature Bearing for Liquid Oxygen Pump bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Ring Material: GCR15 Or 440C Or 9Cr18Mo
Accuracy: P4
Speed: 40000RPM
Ball Material: Ceramic Ball Or Steel Ball
Application: Dentall Drill Industry Or Mobile Phone
Market: Germany,Spain,Brazil
Highlight:

low friction bearings

,

dental ball bearing

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 7309A5hU9
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

7309A5hU9 45*100*25mm Ultra-Low Temperature Bearing for Liquid Oxygen Pump bearing

7309A5hU9 45*100*25mm Ultra-Low Temperature Bearing for Liquid Oxygen Pump bearing 0

Description Dimension Loading(KN) Speed
(r/min)
7309A5hU9 45 100 25 1.5 47.6 31.8 12000



LNG Pump Bearings

LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.

LNG pump bearings including:

1.Angular contact ball bearings

2.Deep groove ball bearings

3.Cylindrical roller bearings

Operating Conditions:
› Speed: 1160 rpm – 3600 rpm
› Gas temperature: –196° C up to 0° C
› Mainly axial load
› Very poor lubrication

Condition Description:

Arduous Environments

Corrosive Environment

High Speed

Low temperature

Industry:

Chemical and Pharmaceutical

Petrochemical

Features:

Stainless steel inner and outer rings

Stainless steel rolling elements/Ceramic balls

Riveted fluororesin cage/Ptfe cage

Long life

Benefits:

Corrosion resistant

Self-lubricating cage

High speed (up to 3600 rpm)

Extended life

Now we have the below codes under production and have stock:



6205-H-T35D

6206-H-T35D

6207-H-T35D

6208-H-T35D

6209-H-T35D

6210-H-T35D

6211-H-T35D

6213-H-T35D

6215-H-T35D

6217-H-T35D

6305-H-T35D

6308-H-T35D

6311-H-T35D

6314-H-T35D

6318-H-T35D

6320-H-T35D

6322-H-T35D

6328-H-T35D



Now monton have developed the low temperature angular contact ball bearings and low temperature deep goove ball bearings.Our bearings have been widely used by our customers to replace NSK bearings.

We welcome you here if you have any inquires or questions.
