6320/c3vl0241 China professional electric insulation bearing manufacturers
6320/c3vl0241 China professional electric insulation bearing manufacturers
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 6330-J20C
High Light:

deep groove roller bearing


self aligning roller bearing

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Material: GCr15 Or GCr15SiMn
Application: Motor Or The Railway
Accuracy: P6 Or P5 Or P4
Cage: Brass
Character: Inner Ring With Coating
Types: Deep Groove Ball Bearings Or Cylindrical Roller Bearings
Product Description

6330-J20C  Insulated Deep Groove Ball Bearing Motor Bearing


Current-insulated bearings and hybrid bearings

  • Current-insulated bearings have either an outer ring (J20 A, J20 AA, J20B) or an inner ring (J20C) that is insulated with thin ceramic coating.
  • Different coating types are available for optimum functional performance.
Types of coatings - Range of Sizes
  J20B J20A *) J20AA J20C
Disruptive Voltage 500 VDC 1000 VDC 3000 VDC 3000 VDC
Environment dry dry dry/damp dry/damp
Coating Thickness <100 μm >200 μm ≈200 μm ≈200 μm
Applicable Dimensions 70…1400 mm
outside diameter
70…1400 mm
outside diameter
70…500 mm
outside diameter
70…340 mm
inner ring bore
*) Preferably used for bearings with an outside diameter of at least 500 mm

Current-insulated bearings have the same dimensions and load carrying capacities as those without insulation, which makes them perfectly interchangeable.
The most common type of insulation used in electric motor applications is the J20AA coating. It offers excellent protection against passage of electrical current, even in damp atmospheres.
Bearings with ceramic coating are available with seals also.

Bearings with J20C coating on the inner ring are used in special applications as well as applications where the outer ring rotates. Z shields can be used as well.

Ordering examples:

  • 6220-2RSR-J20AA-C3
    Deep groove ball bearing with a coated outer ring, with seals on both sides and radial clearance C3.
  • NU214-E-M1-F1-J20B-C4
    Cylindrical roller bearings with a coated outer ring and radial clearance C4.
  • 6330-J20C
    Deep groove ball bearings with a coated inner ring

Hybrid bearings (HC): Hybrid bearings are characterized by the fact that the rolling elements are made of ceramic. They offer maximum protection against passage of electrical current. At the same time, hybrid bearings are suitable for higher speeds and have better dry-running characteristics.

Ordering examples:

  • HC6214-M-P6-C3
    Deep groove ball bearing with ceramic balls; machined brass cage; increased accuracy P6 and bearing clearance C3.
  • HCN1020-K-M1-SP
    Cylindrical roller bearing with ceramic rollers; tapered bore; machined brass cage; increased accuracy SP.

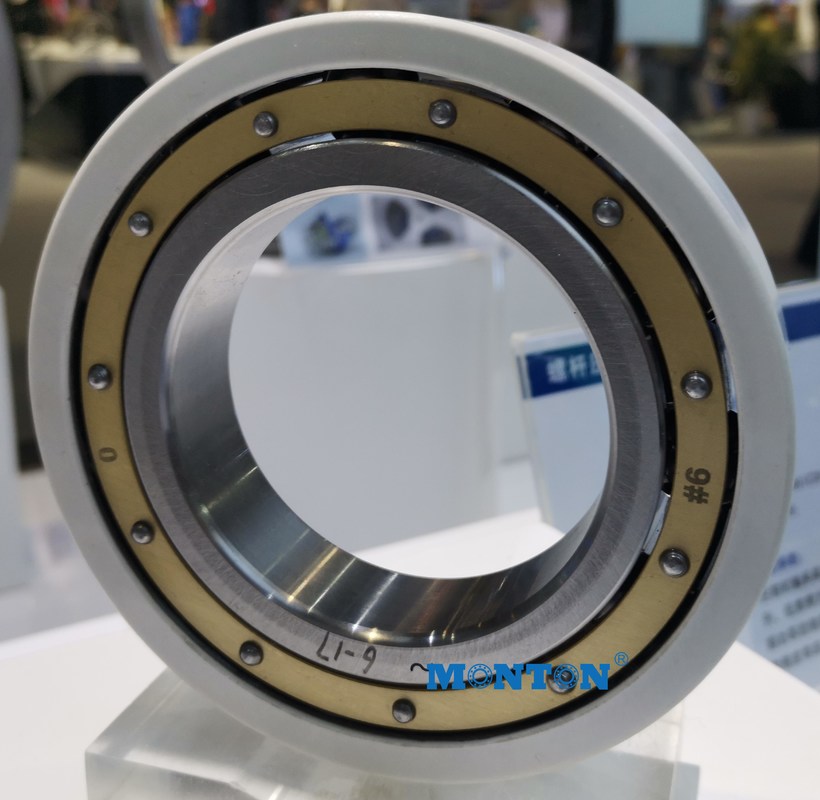

6330 M/C3VL0241 bearing is insulated bearing and deep groove ball Bearings with a Ceramic Coating, the bearing have an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

6330 M/C3VL0241 bearing provide a bearing function and electrical insulation,virtually eliminates premature bearing failure caused by stray electric currents,electrical insulated bearing can reduce the number of failures and improve the machine uptime,reduce the cost of maintenace.

Monton is the 6330 M/C3VL0241 China bearing exporter & supplier,it can supply 6330 M/C3VL0241 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery.

Also you can find EASIER 6330 M/C3VL0241 Bearing, the other type and brand insulated deep groove ball bearing,insocoat tapered roller bearing,Current-Insulated Bearings
Monton bearings provide effective protection against AC and DC currents. The specifications for different design are:
VL0241 Electrical resistance:min.50MW,breakdown voltage:max.operating voltage 1000V DC.
VL0246 Electrical resistance: >150MW,breakdown voltage:max.operating voltage 3000 V DC.
VL2071 Electrical resistance: min.50 MW,breakdown voltage: max.operatingvoltage 1000 V DC.
VL2074 Electrical resistance: >150MW,breakdown voltage: max.operating voltage 2 000 V DC.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality 6330 M/C3VL0241 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
Welcome here if you have any demands.
