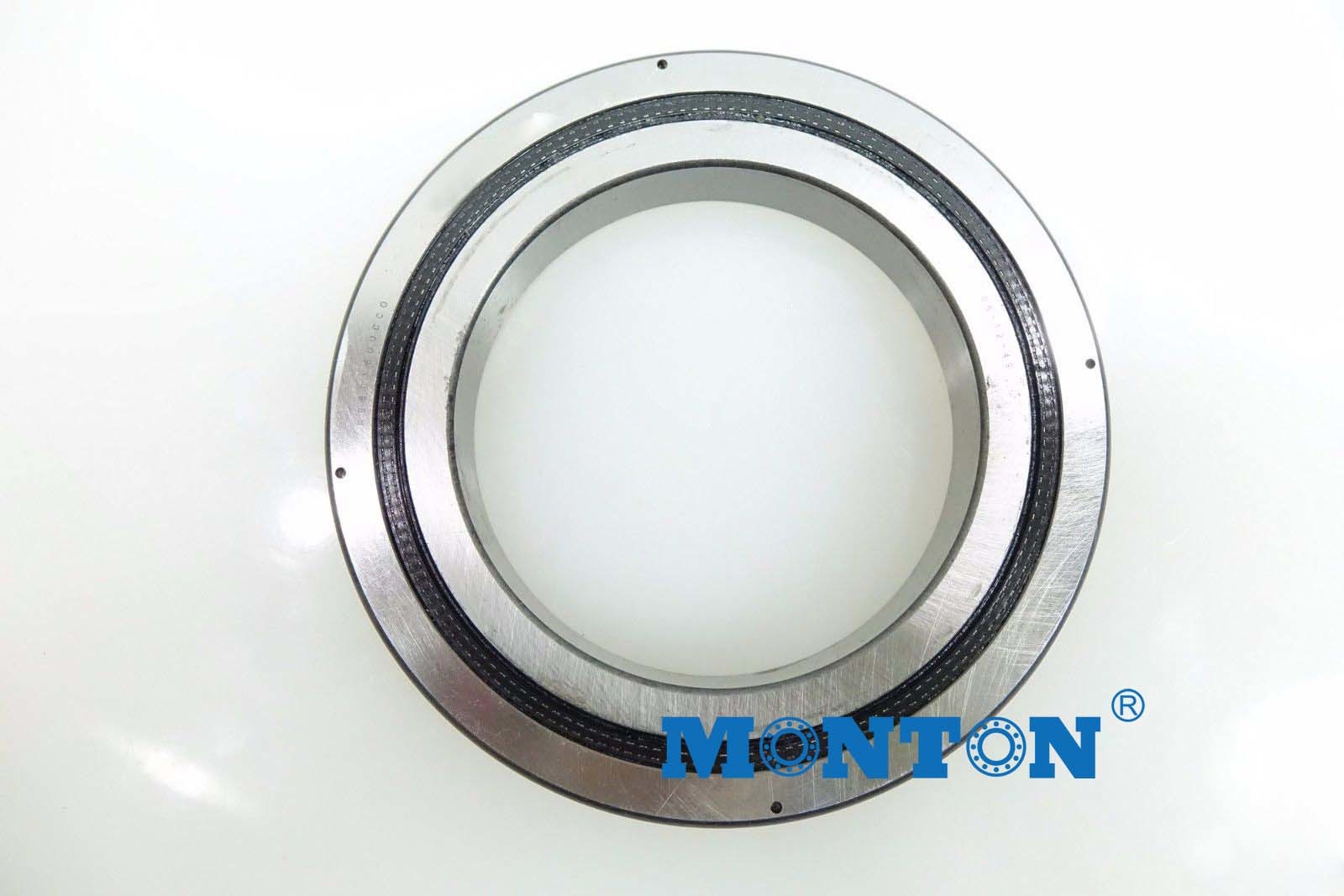

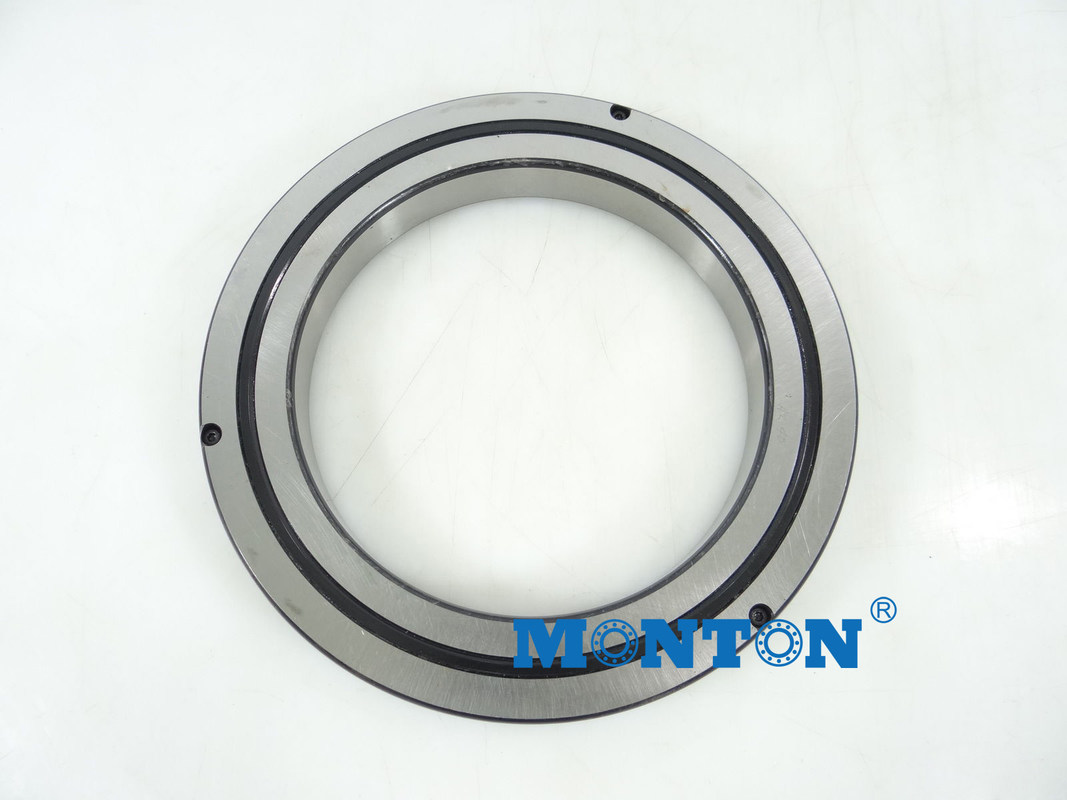

RU124X Full Complement Sealed crossed Roller Bearings for robotics

1
MOQ
USD
Price
RU124X Full Complement Sealed crossed Roller Bearings  for robotics
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15 Or GCr15SiMn
Accuracy: P5/P4/P2
Application: Harmonic Reducer Or Robot
Customer: MKD,LCM,DMG,Coma,Sumsung
Market: Europe,USA,Korean
Other Types: RE,RB,RU,RX,SX Series
High Light:

industrial turntable bearings

,

crossed cylindrical roller bearing

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: RU 124X
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

High Precision Cross Roller Bearing RU124X for Harmonic Reducer

RU124X Full Complement Sealed crossed Roller Bearings  for robotics 0

Diameter (mm) Identification number Main dimensions Shoulder height Basic load rating(radial) Weight
ID OD B Oil hole rmin
d D β d1 ds Dh C/kN Co/kN kg
80 RU124(G) 80 165 22 3.1 1 114 134 33.1 50.9 2.6
RU124X





Crossed Roller Bearing

Features of the Crossed Roller Ring




























Structure and Features

With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including radial, axial and moment loads. Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.



High Rotation Accuracy

The spacer retainer fitting among cross-arrayed rollers prevents rollers from skewing and the rotational torque from increasing due to friction between rollers. Unlike conventional types using steel sheet retainers, the Cross-Roller Ring does not cause unilateral contact of roller or seize. Thus, even under a preload, the Cross-Roller Ring provides stable rotation.

Since the inner and outer rings are designed to be separable, the bearing clearance can be adjusted.

In addition, a preload can be applied. These features enable accurate rotation.



Easy Handling

The inner and outer rings, which are separable, are secured to the Cross-Roller Ring body after being installed with rollers and spacer retainers in order to prevent the rings from separating from each other. Thus, it is easy to handle the rings when installing the Cross-Roller Ring.



Skewing Prevention

The spacer retainer keeps rollers in their proper position, thereby preventing them from skewing(tilted rollers). This eliminates friction between rollers, and therefore secures a stable rotational torque.



Increased Rigidity (Three to Four Times Greater than the Conventional Type) Unlike the thin angular ball bearings installed in double rows, the cross array of rollers allows a single Cross-Roller Ring unit to receive loads in all directions, increasing the rigidity to three to four times greater than the conventional type.
































Large Load Capacity

(1) Compared with conventional steel sheet retainers, the spacer retainer allows a longer effective

contact length of each roller, thus signifi cantly increasing the load capacity. The spacer retainer guides rollers by supporting them over the entire length of each roller, whereas the conventional type of retainer supports them only at a point at the center of each roller. Such one-point contact cannot suffi ciently prevent skewing.
























(2) In conventional types, the loaded areas are asymmetrical between the outer ring and the inner ring sides around the roller longitudinal axis. The greater the applied load is, the greater the moment becomes, leading end-face contact to occur. This causes frictional resistance, which hinders smooth rotation and quickens wear.


























Types of the Cross-Roller Ring

Types and Features

Model RU (Integrated Inner/Outer Ring Type)

Since holes are drilled for mounting, the need for a presser fl ange and a housing is eliminated. Also, owing to the integrated inner/outer ring type stryucture with washer, there is almost no effect from installation on performance, allowing stable rotational accuracy and torque to be obtained. Can be used for both outer and inner ring rotation.
























Model RB (Separable Outer Ring Type for Inner Ring Rotation)

Cross-Roller Ring basic type, with a separable outer ring, and an inner ring integrated with the main body.It is used in locations where the rotational accuracy of the inner ring is required. It is used, for example, in the swivel portions of index tables of machine tools.






















Model RE (Two-piece Inner Ring Type for Outer Ring Rotation)

Main dimensions are the same as model RB. This model is used in locations where the rotational accuracy of the outer ring is required.






















Model RA (Separable Outer Ring Type for Inner Ring Rotation)

A compact type similar to model RB with the thinnest possible inner and outer rings. Optimal for locations requiring a light-weight and compact design such as the swivel portions of robots and manipulators.






















Selecting a Cross-Roller Ring

The following diagram shows a typical procedure for selecting a Cross-Roller Ring.


























Fit

Fitting of Models RU

Fitting for model RU is typically not required. However, for fi tting requiring positioning accuracy, h7 and H7 are recommended.



Fitting of Models RB, RE and RA

For the fi tting of models RB, RE and RA, we recommend using the combinations indicated in Table1 .



Table1 Fitting of Models RB, RE and RA






















Monton Precision Crossed Roller Bearing has three structure types, including bearing with cage, with separator, and with full complement. Cage and separator types are suitable to low friction moment and high-speed rotation, while full complement is suitable to low-speed rotation and heavy load.

Here below is the catalogues lists:



Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RU42 20 70 12 0.6 37 47 7.35 8.35 0.29
RU66 35 95 15 0.6 59 74 17.5 22.3 0.62
RU85 55 120 15 0.6 79 93 20.3 29.5 1
RU124(G) 80 165 22 1 114 134 33.1 50.9 2.6
RU124X
RU148(G) 90 210 25 1.5 133 162 49.1 76.8 4.9
RU148X
RU178(G) 115 240 28 1.5 161 195 80.3 135 6.8
RU178X
RU228(G) 160 295 35 2 208 246 104 172 11.4
RU228X
RU297(G) 210 380 40 2.5 272 320 156 281 21.3
RU297X
RU445(G) 350 540 45 2.5 417 473 222 473 35.4
RU445X





Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B,C

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RB 2008 20 36 8 0.5 23.5 30.5 3.23 3.1 0.04
RB 3010 30 55 10 0.6 37 47 7.35 8.36 0.12
RB 3510 35 60 10 0.6 41 51.5 7.64 9.12 0.13
RB 4010 40 65 10 0.6 47.5 57.5 8.33 10.6 0.16
RB 4510 45 70 10 0.6 51 61.5 8.62 11.3 0.17
RB 5013 50 80 13 0.6 57.4 72 16.7 20.9 0.27
RB 6013 60 90 13 0.6 68 82 18 24.3 0.3
RB 7013 70 100 13 0.6 78 92 19.4 27.7 0.35
RB 8016 80 120 16 0.6 91 111 30.1 42.1 0.7
RB 9016 90 130 16 1 98 118 31.4 45.3 0.75
RB 10016 100 140 16 1 109 129 31.7 48.6 0.83
RB 10020 100 150 20 1 113 133 33.1 50.9 1.45
RB 11012 110 135 12 0.6 117 127 12.5 24.1 0.4
RB 11015 110 145 15 0.6 122 136 23.7 41.5 0.75
RB 11020 110 160 20 1 120 143 34 54 1.56
RB 12016 120 150 16 0.6 127 141 24.2 43.2 0.72
RB 12025 120 180 25 1.5 133 164 66.9 100 2.62





Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B,C

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RB 13015 130 160 15 0.6 137 152 25 46.7 0.72
RB 13025 130 190 25 1.5 143 174 69.5 107 2.82
RB 14016 140 175 16 2.5 147 162 25.9 50.1 1
RB 14025 140 200 25 3.5 154 185 74.8 121 2.96
RB 15013 150 180 13 2.5 157 172 27 53.5 0.68
RB 15025 150 210 25 3.5 164 194 76.8 128 3.16
RB 15030 150 230 30 4.5 173 211 100 156 5.3
RB 16025 160 220 25 3.5 173 204 81.7 135 3.14
RB 17020 170 220 20 3.5 184 198 29 62.1 2.21
RB 18025 180 240 25 3.5 195 225 84 143 3.44
RB 19025 190 240 25 3.5 202 222 41.7 82.9 2.99
RB 20025 200 260 25 3.5 215 245 84.2 157 4
RB 20030 200 280 30 4.5 221 258 114 200 6.7
RB 20035 200 295 35 5 225 270 151 252 9.6
RB 22025 220 280 25 3.5 235 265 92.3 171 4.1
RB 24025

240

110

300 25 3.5 256 281 68.3 145 4.5
RB 25025 250 310 25 3.5 265 290 69.3 150 5
RB 25030 250 330 30 4.5 269 306 126 244 8.1
RB 25040 250 355 40 6 275 326 195 348 14.8
RB 30025 300 360 25 3.5 315 340 76.3 178 5.9
RB 30035 300 395 35 5 322 368 183 367 13.4
RB 30040 300 405 40 6 326 377 212 409 17.2











Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B,C

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RB 40035 400 480 35 2.5 422 459 156 370 14.5
RB 40040 400 510 40 2.5 428 479 241 531 23.5
RB 45025 450 500 25 1 464 484 61.7 182 6.6
RB 50025 500 550 25 1 514 534 65.5 201 7.3
RB 50040 500 600 40 2.5 526 572 239 607 26
RB 50050 500 625 50 2.5 536 587 267 653 41.7
RB 60040 600 700 40 3 627 673 264 721 29
RB 70045 700 815 45 3 731 777 281 836 46
RB 80070 800 950 70 4 836 900 468 1330 105
RB 90070 900 1050 70 4 937 1001 494 1490 120
RB 1000110 1000 1250 110 5 1057 1171 1220 3220 360
RB 1250110 1250 1500 110 5 1308 1423 1350 3970 440
