Long Lifetime Deep Groove Ball Bearing High Temperature For Auto Transmission

1
MOQ
USD
Price
Long Lifetime Deep Groove Ball Bearing High Temperature For Auto Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15
Vibration: Z1V1 Or Z2V2
Application: Auto Transmission, Auto Parts
Market: India,USA,Germany
Temperature: 150~500 Degree
Grease: Special Grease
Heat Treatment: Special Heattreatment
Bearing Range: 10mm~200mm
High Light:

deep groove roller bearing

,

self aligning roller bearing

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 6310-ZZ
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

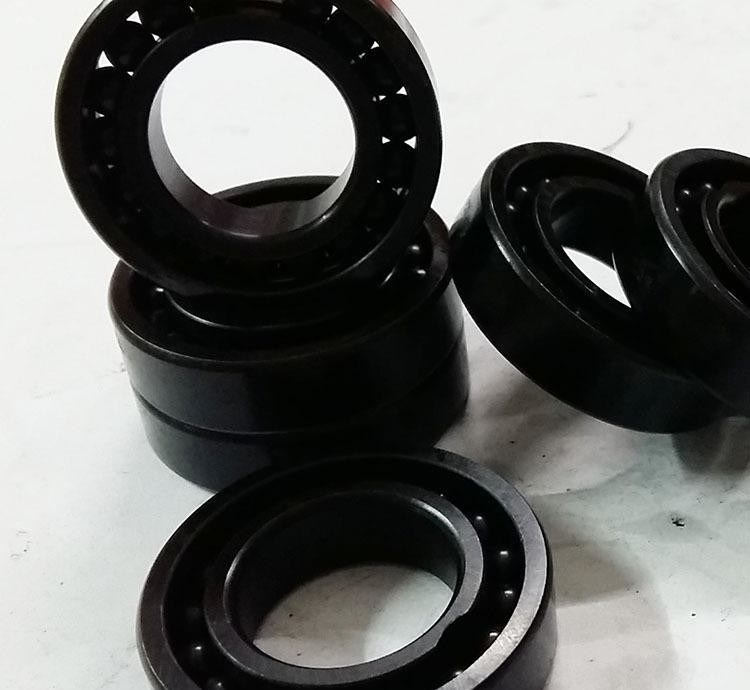

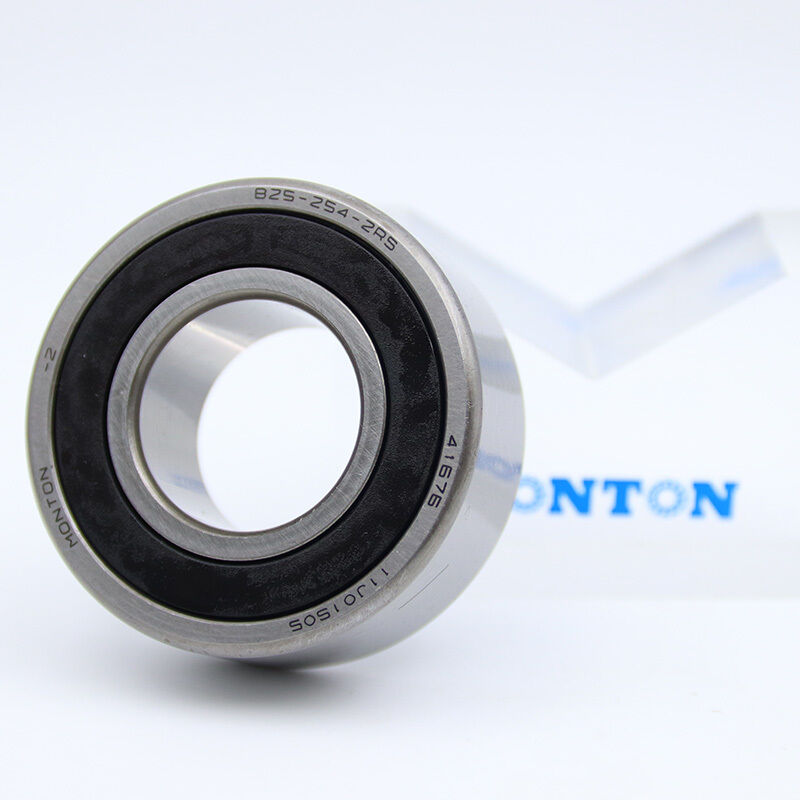

High Temperature Deep Groove Ball Bearings









High temperature bearing has the similar structure with traditional deep groove ball bearing,since the using environment is different,high temperature bearing needs to be forged in more harsh conditions.The forging temperature is higher than normal bearing,which to ensurance the high temperature can be used in special situation.The most important of high temperature bearing is the oil.Same as the material,oil needs to stand in the high temperature conditon.



Features of high temperature bearings

1 higher using temperature

2 bigger clearance

3 harsh conditon of oil

Specification of high temperature deep groove ball bearing with bigger clearance

Products name high temperature deep groove ball bearing with bigger clearance
Brand name GB or neutral;
Material Stainless steel or chrome steel
Quality standard ISO9001:2008
Accuracy class ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
Noise Level Z2,Z3,Z4
Sealing/Shield ZZ
Minimum order quantity 500pcs
Clearance as customer need
Temperature degree as customer need
Feature bigger clearance
Application
Medical apparatus and instruments, marine, cryogenic engineering, optical instrument, high-speed machine, high-speed electric machinery, printing machinery, food equipment.
Packaging A: Tube package + outer carton + pallet
B: Small single color box + outer carton + pallet
C: According to your requirement
Delivery Details Lead time: 10-15 working days standard specifications,
customized design takes 30-40 days
Shipping time: 30-35 days by sea
5-7 days by air
3-5 days by express delivery

Here below is our catallogue lists:

Bearing No. Boundary Dimensions(mm) Basic Load Rating (KN) Weight
Open Shields Seals d D B Cr. Cor. (Kg)
6000 6000-Z 6000-2Z 6000-RS 6000-2RS 10 26 8 4.58 1.98 0.02
6001 6001-Z 6001-2Z 6001-RS 6001-2RS 12 28 8 5.1 2.36 0.02
6002 6002-Z 6002-2Z 6002-RS 6002-2RS 15 32 9 5.6 2.85 0.033
6003 6003-Z 6003-2Z 6003-RS 6003-2RS 17 35 10 6 3.25 0.04
6004 6004-Z 6004-2Z 6004-RS 6004-2RS 20 42 12 9.4 5 0.07
6005 6005-Z 6005-2Z 6005-RS 6005-2RS 25 47 12 10 5.85 0.083
6006 6006-Z 6006-2Z 6006-RS 6006-2RS 30 55 13 12.7 8 0.126
6007 6007-Z 6007-2Z 6007-RS 6007-2RS 35 62 14 16 10.2 0.163
6008 6008-Z 6008-2Z 6008-RS 6008-2RS 40 68 15 16.6 11.6 0.2
6009 6009-Z 6009-2Z 6009-RS 6009-2RS 45 75 16 20 14.3 0.253
6010 6010-Z 6010-2Z 6010-RS 6010-2RS 50 80 16 20.8 15.6 0.282
6011 6011-Z 6011-2Z 6011-RS 6011-2RS 55 90 18 28.5 21.2 0.409
6012 6012-Z 6012-2Z 6012-RS 6012-2RS 60 95 18 29 23.2 0.413
6013 6013-Z 6013-2Z 6013-RS 6013-2RS 65 100 18 30.5 25 0.464
6014 6014-Z 6014-2Z 6014-RS 6014-2RS 70 110 20 38 31 0.642
6015 6015-Z 6015-2Z 6015-RS 6015-2RS 75 115 20 39 33.5 0.676
6016 6016-Z 6016-2Z 6016-RS 6016-2RS 80 125 22 47.5 40 0.893
6201 6201-Z 6201-2Z 6201-RS 6201-2RS 12 32 10 6.8 3.05 0.039
6202 6202-Z 6202-2Z 6202-RS 6202-2RS 15 35 11 7.8 3.75 0.045
6203 6203-Z 6203-2Z 6203-RS 6203-2RS 17 40 12 9.58 4.78 0.064
6204 6204-Z 6204-2Z 6204-RS 6204-2RS 20 47 14 12.7 6.55 0.11
6205 6205-Z 6205-2Z 6205-RS 6205-2RS 25 52 15 14 7.8 0.133
6206 6206-Z 6206-2Z 6206-RS 6206-2RS 30 62 16 19.3 11.2 0.201
6207 6207-Z 6207-2Z 6207-RS 6207-2RS 35 72 17 25.5 15.3 0.299
6208 6208-Z 6208-2Z 6208-RS 6208-2RS 40 80 18 29 18 0.382
6209 6209-Z 6209-2Z 6209-RS 6209-2RS 45 85 19 31 20.4 0.407
6210 6210-Z 6210-2Z 6210-RS 6210-2RS 50 90 20 36.5 24 0.478
6211 6211-Z 6211-2Z 6211-RS 6211-2RS 55 100 21 43 29 0.632
6212 6212-Z 6212-2Z 6212-RS 6212-2RS 60 110 22 52 36 0.807
6213 6213-Z 6213-2Z 6213-RS 6213-2RS 65 120 23 60 41.5 1.03
6214 6214-Z 6214-2Z 6214-RS 6214-2RS 70 125 24 62 44 1.11
6215 6215-Z 6215-2Z 6215-RS 6215-2RS 75 130 25 66 49.5 1.7
6216 6216-Z 6216-2Z 6216-RS 6216-2RS 80 140 28 72.5 53 2.1
6217 6217-Z 6217-2Z 6217-RS 6217-2RS 85 150 28 84 62 2.1
6218   6218-2Z   6218-2RS 90 160 30 96.5 72 2.26
6219   6219-2Z   6219-2RS 95 170 32 108 81.5 2.79
6220   6220-2Z   6220-2RS 100 180 34 122 93 3.36
6221   6221-2Z   6221-2RS 105 190 36 133 105 3.99
6300 6300-Z 6300-2Z 6300-RS 6300-2RS 10 35 11 8.15 3.45 0.057
6301 6301-Z 6301-2Z 6301-RS 6301-2RS 12 37 12 9.65 4.15 0.064
6302 6302-Z 6302-2Z 6302-RS 6302-2RS 15 42 13 11.4 5.4 0.09
6303 6303-Z 6303-2Z 6303-RS 6303-2RS 17 47 14 13.4 6.55 0.117
6304 6304-Z 6304-2Z 6304-RS 6304-2RS 20 52 15 15.8 7.8 0.155
6305 6305-Z 6305-2Z 6305-RS 6305-2RS 25 62 17 22.4 11.4 0.24
6306 6306-Z 6306-2Z 6306-RS 6306-2RS 30 72 19 26.5 16.3 0.363
6307 6307-Z 6307-2Z 6307-RS 6307-2RS 35 80 21 33.5 19 0.481
6308 6308-Z 6308-2Z 6308-RS 6308-2RS 40 90 23 42.5 25 0.654
6309 6309-Z 6309-2Z 6309-RS 6309-2RS 45 100 25 53 31.5 0.869
6310 6310-Z 6310-2Z 6310-RS 6310-2RS 50 110 27 61.8 38 1.12
6311 6311-Z 6311-2Z 6311-RS 6311-2RS 55 120 29 71.5 47.5 1.43
6312 6312-Z 6312-2Z 6312-RS 6312-2RS 60 130 31 82 52 1.79
6313 6313-Z 6313-2Z 6313-RS 6313-2RS 65 140 33 92.5 59.5 2.08
6314 6314-Z 6314-2Z 6314-RS 6314-2RS 70 150 35 104 68 2.52
6315 6315-Z 6315-2Z 6315-RS 6315-2RS 75 160 37 113 77 3.02
6316 6316-Z 6316-2Z 6316-RS 6316-2RS 80 170 39 123 86.5 3.59
6317 6317-Z 6317-2Z 6317-RS 6317-2RS 85 180 41 133 96.5 4.23
6318   6318-2Z   6318-2RS 90 190 43 143 107 4.91
6319   6319-2Z   6319-2RS 95 200 45 153 118 5.67
6320   6320-2Z   6320-2RS 100 215 47 173 141 7
6321   6321-2Z   6321-2RS 105 225 49 184 153 8.05
6403   6403-2Z   6403-2RS 17 62 17 22.4 11.4 0.27
6404   6404-2Z   6404-2RS 20 72 19 29 16.3 0.414
6405   6405-2Z   6405-2RS 25 80 21 36 19.3 0.549
6406   6406-2Z   6406-2RS 30 90 23 47.5 24.5 0.715
6407   6407-2Z   6407-2RS 35 100 25 56.8 29.5 0.954
6408   6408-2Z   6408-2RS 40 110 27 63.7 36.6 1.23
6409   6409-2Z   6409-2RS 45 120 29 77.5 45.5 1.54
6410   6410-2Z   6410-2RS 50 130 31 92.2 55.2 1.89
6411   6411-2Z   6411-2RS 55 140 33 100 62.5 2.29
6412   6412-2Z   6412-2RS 60 150 35 108 70.1 2.78
6413   6413-2Z   6413-2RS 65 160 37 118.1 78.6 3.28
6414   6414-2Z   6414-2RS 70 180 42 137 99.5 4.85
6415   6415-2Z   6415-2RS 75 190 45 153.7 114.32 5.74
16001   16001-2Z   16001-2RS 12 28 7 5.094 2.36 0.02
16002   16002-2Z   16002-2RS 15 32 8 5.594 2.86 0.027
16003   16003-2Z   16003-2RS 17 35 8 5.999 3.265 0.032
16004   16004-2Z   16004-2RS 20 42 8 9.371 4.972 0.05
16005   16005-2Z   16005-2RS 25 47 8 7 4.6 0.053
16006   16006-2Z   16006-2RS 30 55 9 11.2 7.4 0.087
16007   16007-2Z   16007-2RS 35 62 9 11.7 8.2 0.111
16008   16008-2Z   16008-2RS 40 68 9 12.6 9.65 0.125
16009   16009-2Z   16009-2RS 45 75 10 14.9 11.4 0.17
16010   16010-2Z   16010-2RS 50 80 10 15.4 12.4 0.188
16011   16011-2Z   16011-2RS 55 90 11 19.4 16.3 0.26
16012   16012-2Z   16012-2RS 60 95 11 20 17.5 0.28
16013   16013-2Z   16013-2RS 65 100 11 20.5 18.7 0.3
16014   16014-2Z   16014-2RS 70 110 13 26.8 23.6 0.433
16015   16015-2Z   16015-2RS 75 115 13 27.6 25.3 0.457
16016   16016-2Z   16016-2RS 80 125 14 32 29.6 0.597
16017   16017-2Z   16017-2RS 85 130 14 33 31.5 0.626
16018   16018-2Z   16018-2RS 90 140 16 41.5 29.5 0.848
16019   16019-2Z   16019-2RS 95 145 16 43 42 0.89
16020   16020-2Z   16020-2RS 100 150 16 43.9 44.3 0.91
16022   16022-2Z   16022-2RS 110 170 19 57.5 56.7 1.46
16024   16024-2Z   16024-2RS 120 180 19 58.8 60.4 1.8
604   604-2Z   604-2RS 4 12 4 0.97 0.36 0.0021
605   605-2Z   605-2RS 5 14 5 1.33 0.505 0.0035
606   606-2Z   606-2RS 6 17 6 2.19 0.865 0.006
607   607-2Z   607-2RS 7 19 6 2.24 0.91 0.008
608   608-2Z   608-2RS 8 22 7 3.35 1.4 0.012
609   609-2Z   609-2RS 9 24 7 3.4 1.45 0.014
624   624-2Z   624-2RS 4 13 5 1.15 0.4 0.0032
625   625-2Z   625-2RS 5 16 5 1.76 0.68 0.005
626   626-2Z   626-2RS 6 19 6 2.34 0.885 0.008
627   627-2Z   627-2RS 7 22 7 3.35 1.4 0.013
628   628-2Z   628-2RS 8 24 8 4 1.59 0.017
629   629-2Z   629-2RS 9 26 8 4.55 1.96 0.019
685   685-2Z   685-2RS 5 11 3 0.715 0.282 0.0011
686   686-2Z   686-2RS 6 13 3.5 1.08 0.44 0.0019
687   687-2Z   687-2RS 7 14 3.5 1.17 0.505 0.0021
688   688-2Z   688-2RS 8 16 4 1.61 0.715 0.0031
689   689-2Z   689-2RS 9 17 4 1.72 0.82 0.0032
694   694-2Z   694-2RS 4 11 4 0.715 0.276 0.0018
695   695-2Z   695-2RS 5 13 4 1.08 0.43 0.0024
696   696-2Z   696-2RS 6 15 5 1.35 0.53 0.0038
697   697-2Z   697-2RS 7 17 5 1.61 0.715 0.0052
698   698-2Z   698-2RS 8 19 6 1.99 0.865 0.0073
699   699-2Z   699-2RS 9 20 6 2.48 1.09 0.0082
6800   6800-2Z   6800-2RS 10 19 5 1.83 0.925 0.005
6801   6801-2Z   6801-2RS 12 21 5 1.92 1.04 0.006
6802   6802-2Z   6802-2RS 15 24 5 2.08 1.26 0.007
6803   6803-2Z   6803-2RS 17 26 5 2.23 1.46 0.008
6804   6804-2Z   6804-2RS 20 32 7 4 2.47 0.019
6805   6805-2Z   6805-2RS 25 37 7 4.3 2.95 0.022
6806   6806-2Z   6806-2RS 30 42 7 4.7 3.65 0.026
6807   6807-2Z   6807-2RS 35 47 7 4.9 4.05 0.029
6900   6900-2Z   6900-2RS 10 22 6 2.7 1.27 0.009
6901   6901-2Z   6901-2RS 12 24 6 2.89 1.46 0.011
6902   6902-2Z   6902-2RS 15 28 7 3.65 2 0.016
6903   6903-2Z   6903-2RS 17 30 7 4.65 2.58 0.018
6904   6904-2Z   6904-2RS 20 37 9 6.4 3.7 0.036
6905   6905-2Z   6905-2RS 25 42 9 7.05 4.55 0.042
6906   6906-2Z   6906-2RS 30 47 9 7.25 5 0.048
6907   6907-2Z   6907-2RS 35 55 10 9.55 6.85 0.074
62/22   62/22-2Z   62/22-2RS 22 50 14 12.9 6.8 0.12
62/28   62/28-2Z   62/28-2RS 28 58 16 16.6 9.5 0.171
63/22   63/22-2Z   63/22-2RS 22 56 16 18.4 9.25 0.18
63/28   63/28-2Z   63/28-2RS 28 68 18 26.7 14 0.287
        411280 30 72 28/25 25.7 15.3 0.464
