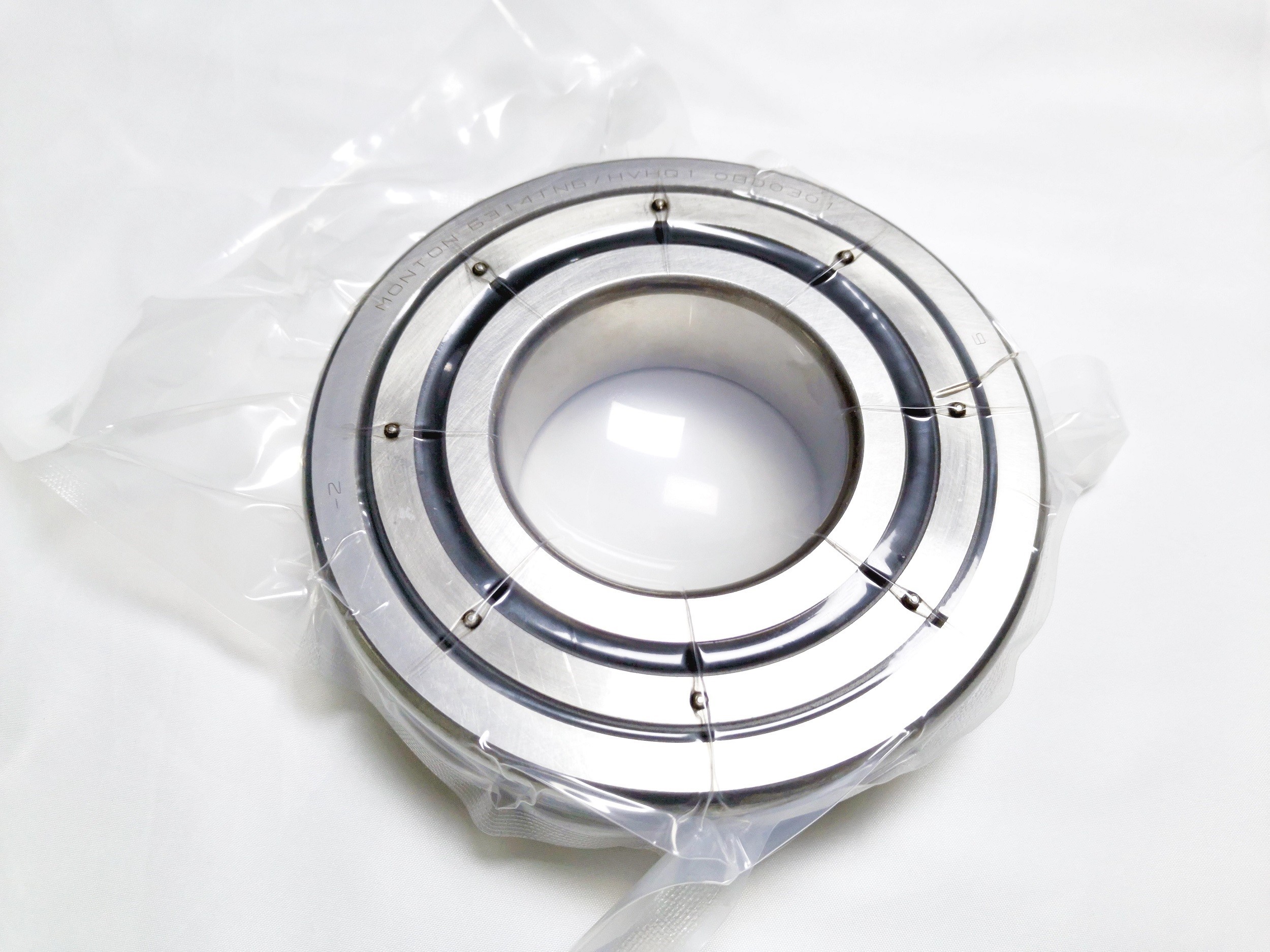

6211-H-T35D Low temperature bearings for cryogenic pump ,LNG Pump Bearings

10
MOQ
500USD
Price
6211-H-T35D Low temperature bearings for cryogenic pump ,LNG Pump Bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Ring Material: Stainless
Cage: PTFE
Ball: Ceramic
Accuracy: P4
Application: Cryogenic Pump ,LNG Pump
Market: USA,Germany,Japan,Russia,etc
Working Termperature: Low Temperature
Lubrication: No Oil Or Grease
Tructure: Open
Clearence: C3
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 6211-H-T35D
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT, D/A, D/P, Western Union
Supply Ability: 5000pcs/week
Product Description

Low temperature bearings for cryogenic pump ,LNG Pump Bearings



LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.



LNG pump bearings including:

1.Angular contact ball bearings

2.Deep groove ball bearings

3.Cylindrical roller bearings





Operating Conditions:
› Speed: 1160 rpm – 3600 rpm
› Gas temperature: –196° C up to 0° C
› Mainly axial load
› Very poor lubrication



Condition Description

  • Arduous Environments
  • Corrosive Environment
  • High Speed
  • Low temperature

Industry

  • Chemical and Pharmaceutical
  • Petrochemical

Features

  • Stainless steel inner and outer rings
  • Stainless steel rolling elements
  • 2 pieces riveted fluororesin cage

Benefits

  • Corrosion resistant
  • Self-lubricating cage
  • High speed (up to 3600 rpm)
  • Extended life

Now we have the below codes under production and have stock:

7206C
7305AC
7307AC
7000C
7002C
6211
6305
6308
6311

6314

6318



Feature:

Stainless steel rings

Ceramic balls

Ptfe cage

Long life



Now monton have developed the low temperature angular contact ball bearings and low temperature deep goove ball bearings.Our bearings have been widely used by our customers to replace NSK bearings.





In the same time,we can also make the special design according to the customers demands.

We welcome you here if you have any inquires or questions.





6211-H-T35D Low temperature bearings for cryogenic pump ,LNG Pump Bearings 0

6211-H-T35D Low temperature bearings for cryogenic pump ,LNG Pump Bearings 1

6211-H-T35D Low temperature bearings for cryogenic pump ,LNG Pump Bearings 2
