RU124X High Precision Slewing Ring Bearing For Harmonic Reducer / Robot

We got the samples and the testing results is great,thanks for your work!

—— Chris

Received bearings.The quality is good. Warm and thoughtful service,fast shipment.I will keep doing business with your trustworthy company.

—— John Grafton

3 years' cooperation with satisified service and quality.We attain many local customers gratitude and supports.Thank

—— Mohammad EL ASSWAD

We have tested the bearing 23082 and I am so satisfied with the bearing quality.Good package and best price have given a big favor in our business.

—— Kwon

Your quality is good,but the prices is a little higher!Anyway,quality is first,but please also give me one better prices,thanks!

—— Michile

All is goes well,thanks for your cooperation!

—— Giorgia

I'm Online Chat Now

RU124X High Precision Slewing Ring Bearing For Harmonic Reducer / Robot

China RU124X High Precision Slewing Ring Bearing For Harmonic Reducer / Robot supplier
RU124X High Precision Slewing Ring Bearing For Harmonic Reducer / Robot supplier RU124X High Precision Slewing Ring Bearing For Harmonic Reducer / Robot supplier

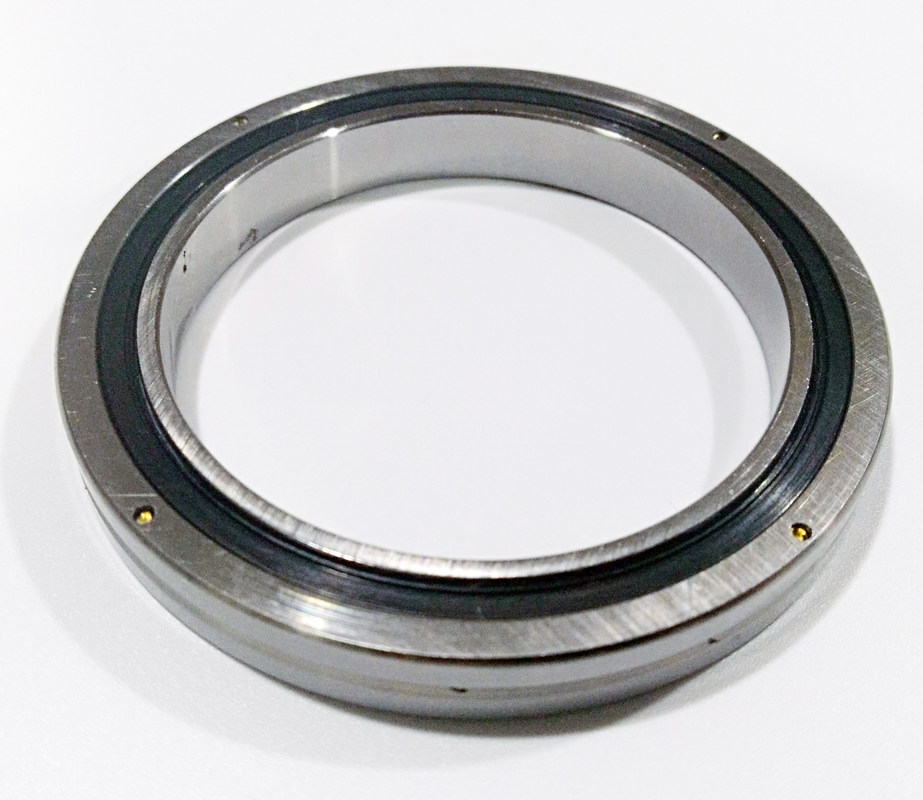

Large Image :  RU124X High Precision Slewing Ring Bearing For Harmonic Reducer / Robot

Product Details:

Place of Origin: luoyang
Brand Name: MONTON
Certification: ISO9001
Model Number: RU 124X

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 50USD/pc
Packaging Details: single box
Delivery Time: 7days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Detailed Product Description
Material: GCr15 Accuracy: P4/P2
Application: Harmonic Reducer Or Robot Or Machines Tool Or Crane Or Solar Customer: DMG,MAG,Sumsung,etc
Market: Europe,USA,Japan Tyoes: RB,RU,RE,RX,SX Series

High Precision Cross Roller Bearing RU148X for Harmonic Reducer







Monton Precision Crossed Roller Bearing, the inner structure of which adopts the vertical and crossed arrangement of cylindrical roller with 90°, can stand radial load, double-direction thrust loads and overturning moment at the same time. Combined with its high rigidity, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.





Monton Precision Crossed Roller Bearing has three structure types, including bearing with cage, with separator, and with full complement. Cage and separator types are suitable to low friction moment and high-speed rotation, while full complement is suitable to low-speed rotation and heavy load.

Here below is the catalogues lists:

Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RU42 20 70 12 0.6 37 47 7.35 8.35 0.29
RU66 35 95 15 0.6 59 74 17.5 22.3 0.62
RU85 55 120 15 0.6 79 93 20.3 29.5 1
RU124(G) 80 165 22 1 114 134 33.1 50.9 2.6
RU124X
RU148(G) 90 210 25 1.5 133 162 49.1 76.8 4.9
RU148X
RU178(G) 115 240 28 1.5 161 195 80.3 135 6.8
RU178X
RU228(G) 160 295 35 2 208 246 104 172 11.4
RU228X
RU297(G) 210 380 40 2.5 272 320 156 281 21.3
RU297X
RU445(G) 350 540 45 2.5 417 473 222 473 35.4
RU445X

Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B,C

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RB 2008 20 36 8 0.5 23.5 30.5 3.23 3.1 0.04
RB 3010 30 55 10 0.6 37 47 7.35 8.36 0.12
RB 3510 35 60 10 0.6 41 51.5 7.64 9.12 0.13
RB 4010 40 65 10 0.6 47.5 57.5 8.33 10.6 0.16
RB 4510 45 70 10 0.6 51 61.5 8.62 11.3 0.17
RB 5013 50 80 13 0.6 57.4 72 16.7 20.9 0.27
RB 6013 60 90 13 0.6 68 82 18 24.3 0.3
RB 7013 70 100 13 0.6 78 92 19.4 27.7 0.35
RB 8016 80 120 16 0.6 91 111 30.1 42.1 0.7
RB 9016 90 130 16 1 98 118 31.4 45.3 0.75
RB 10016 100 140 16 1 109 129 31.7 48.6 0.83
RB 10020 100 150 20 1 113 133 33.1 50.9 1.45
RB 11012 110 135 12 0.6 117 127 12.5 24.1 0.4
RB 11015 110 145 15 0.6 122 136 23.7 41.5 0.75
RB 11020 110 160 20 1 120 143 34 54 1.56
RB 12016 120 150 16 0.6 127 141 24.2 43.2 0.72
RB 12025 120 180 25 1.5 133 164 66.9 100 2.62

Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B,C

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RB 13015 130 160 15 0.6 137 152 25 46.7 0.72
RB 13025 130 190 25 1.5 143 174 69.5 107 2.82
RB 14016 140 175 16 2.5 147 162 25.9 50.1 1
RB 14025 140 200 25 3.5 154 185 74.8 121 2.96
RB 15013 150 180 13 2.5 157 172 27 53.5 0.68
RB 15025 150 210 25 3.5 164 194 76.8 128 3.16
RB 15030 150 230 30 4.5 173 211 100 156 5.3
RB 16025 160 220 25 3.5 173 204 81.7 135 3.14
RB 17020 170 220 20 3.5 184 198 29 62.1 2.21
RB 18025 180 240 25 3.5 195 225 84 143 3.44
RB 19025 190 240 25 3.5 202 222 41.7 82.9 2.99
RB 20025 200 260 25 3.5 215 245 84.2 157 4
RB 20030 200 280 30 4.5 221 258 114 200 6.7
RB 20035 200 295 35 5 225 270 151 252 9.6
RB 22025 220 280 25 3.5 235 265 92.3 171 4.1
RB 24025

240

110

300 25 3.5 256 281 68.3 145 4.5
RB 25025 250 310 25 3.5 265 290 69.3 150 5
RB 25030 250 330 30 4.5 269 306 126 244 8.1
RB 25040 250 355 40 6 275 326 195 348 14.8
RB 30025 300 360 25 3.5 315 340 76.3 178 5.9
RB 30035 300 395 35 5 322 368 183 367 13.4
RB 30040 300 405 40 6 326 377 212 409 17.2







Model No.



Boundary dimensions



Shoulder height



Basic load rating

(radial)



Weight

d

mm

D

mm

B,C

mm

Rmin

mm

da

mm

Da

mm

C

kN

Co

kN

kg

RB 40035 400 480 35 2.5 422 459 156 370 14.5
RB 40040 400 510 40 2.5 428 479 241 531 23.5
RB 45025 450 500 25 1 464 484 61.7 182 6.6
RB 50025 500 550 25 1 514 534 65.5 201 7.3
RB 50040 500 600 40 2.5 526 572 239 607 26
RB 50050 500 625 50 2.5 536 587 267 653 41.7
RB 60040 600 700 40 3 627 673 264 721 29
RB 70045 700 815 45 3 731 777 281 836 46
RB 80070 800 950 70 4 836 900 468 1330 105
RB 90070 900 1050 70 4 937 1001 494 1490 120
RB 1000110 1000 1250 110 5 1057 1171 1220 3220 360
RB 1250110 1250 1500 110 5 1308 1423 1350 3970 440
