EE333140/333203CD Cross Taper Roller Bearing Enhanced Operational Reliability

EE333140/333203CD Cross Taper Roller Bearing Enhanced Operational Reliability
Features Gallery Product Description Request A Quote
D: 514.35
D: 355.6
T: 193.675
Wightr: 119KG
Keywords: Cross Taper Roller Bearing Made In China
High Light:

electric motor bearings


anti friction bearing

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Model Number: EE333140/333203CD
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 100pcs/week
Product Description






Cone Part Number


Cup Part Number


Design Units


Bearing Weight

253.19 lb114.845 Kg

Cage Type

Stamped Steel

Ab - Cage-Cone Frontface Clearance

0.18 in4.6 mm

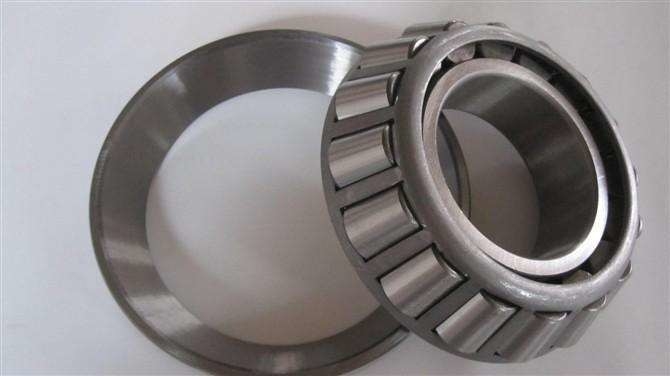

EE333140/333203CD cross taper roller bearing made in china



d - Bore

14 in355.6 mm

D - Cup Outer Diameter

20.2500 in514.350 mm

B - Cone Width

3.3125 in84.138 mm

C - Double Cup Width

6.0000 in152.400 mm

T - Bearing Width across Cones

7.6249 in193.672 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 0.25 in6.400 mm
r - Cup Frontface "To Clear" Radius2 0.06 in1.5 mm

db - Cone Backface Backing Diameter

15.24 in387.10 mm

Da - Cup Frontface Backing Diameter

18.94 in481.08 mm

Aa - Cage-Cone Backface Clearance

0.43 in10.9 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 78700 lbf350000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 529000 lbf2350000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 137000 lbf610000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 49500 lbf220000 N


K - Factor7 1.59
e - ISO Factor8 0.78
Y1 - ISO Factor9 0.861.29
Y2 - ISO Factor10 1.29
G1 - Heat Generation Factor (Roller-Raceway)11 3040

G2 - Heat Generation Factor (Rib-Roller End)

Cg - Geometry Factor12 0.193


Tapered roller bearings have tapered inner and outer ring raceways as well as tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°, is related to the calculation factor : the larger the value of e, the larger the contact angle.


Tapered roller bearings are uniquely designed to manage both thrust and radial loads. Consisting of a "tapered cup" and a "tapered cone", this design is one of the most basic and common styles in the bearing industry. Found in everything from cars to conveyor lines, tapered roller bearings are more versatile than any other bearing series. Our taper bearings are sold in sets with both the cup and the cone together.

Find everything you're looking for in one place. Our massive inventory at The Big Bearing Store has almost everything in stock and ready to ship. Our friendly and knowledgeable staff is ready to assist you in finding

whatever you need.


                                                Bearing features
Low friction
The optimized roller end design and surface finish on the flange promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
Long service life
The crowned raceway profiles of basic design bearings and the logarithmic raceway profiles of  Explorer bearings optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends , and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.

Enhanced operational reliability
Optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
Consistency of roller profiles and sizes
The rollers incorporated in  tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.
Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Tapered roller bearings typically have a running-in period, during which a conventional design tapered roller bearing experiences a significant amount of friction, resulting in wear. This effect is noticed as a temperature spike (diagram 1). With tapered roller bearing designs, friction, frictional heat and wear are significantly reduced, provided the bearings are mounted and lubricated correctly.

Separable and interchangeable

Depending on the design, tapered roller bearings are separable and components of same-sized bearings are fully interchangeable. For example, single row tapered roller bearings are separable , i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). This facilitates mounting, dismounting and also maintenance inspection routines.



EE333140/333203CD bearing best quality in Malaysia are widely used in industrial drive, agriculture, compressors, motors and generators, construction, industrial fan, industrial transmission and other fields. EE333140/333203CD bearing best quality in Malaysia can ensure high quality for more than 80% raw material of  EE333140/333203CD bearing best quality in Malaysia provided by the steel plant.

Explorer series bearing of EE333140/333203CD bearing best quality in Malaysia are better than any brand bearings currently in bearing performance , lifetime, design, and the use of performance. Explorer series bearings of  EE333140/333203CD bearing best quality in Malaysia have more advantages ,such as higher meet rated , lower noise, reducing warranty costs greatly, increasing running time of the machine.
