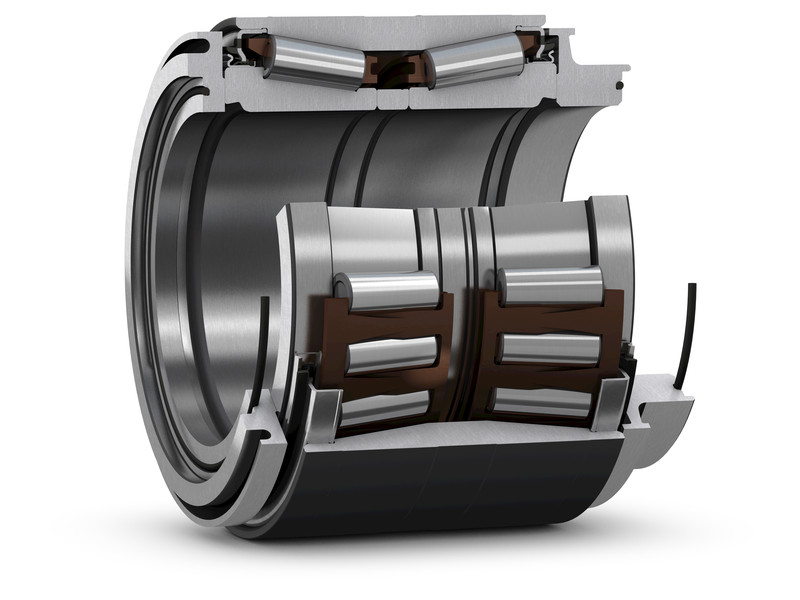

LM451300 Series High Speed Bearings / Sealed Ball Bearings Precise Design
1pcs
MOQ
USD
Price
LM451300 Series High Speed Bearings / Sealed Ball Bearings Precise Design
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Model Number: LM451349/LM451310CD
High Light:

tapered ball bearing

,

anti friction bearing

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 100pcs/week
Specifications
D: 266.7
D: 355.6
T: 127
Keywords: China Double Row Tapered Roller Bearings Factory
Product Description

LM451349/LM451310CD

china double row tapered roller bearings factory



Specifications

Series

LM451300

Cone Part Number

LM451349

Cup Part Number

LM451310CD

Design Units

Imperial

Bearing Weight

68.73 lb31.175 Kg

Cage Type

Stamped Steel

Ab - Cage-Cone Frontface Clearance

0.18 in4.6 mm

Dimensions

d - Bore

10.5 in266.7 mm

D - Cup Outer Diameter

14 in355.6 mm

B - Cone Width

2.2500 in57.150 mm

C - Double Cup Width

4.0000 in101.600 mm

T - Bearing Width across Cones

4.9999 in126.997 mm



china double row tapered roller bearings factory

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 0.14 in3.600 mm
r - Cup Frontface "To Clear" Radius2 0.06 in1.5 mm

db - Cone Backface Backing Diameter

11.22 in285 mm

Da - Cup Frontface Backing Diameter

13.52 in343.41 mm

Aa - Cage-Cone Backface Clearance

0.19 in4.8 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 43300 lbf193000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 345000 lbf1530000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 89300 lbf397000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 31600 lbf141000 N

Factors

K - Factor7 1.62
e - ISO Factor8 0.76
Y1 - ISO Factor9 0.881.31
Y2 - ISO Factor10 1.31
Cg - Geometry Factor11 0.154
