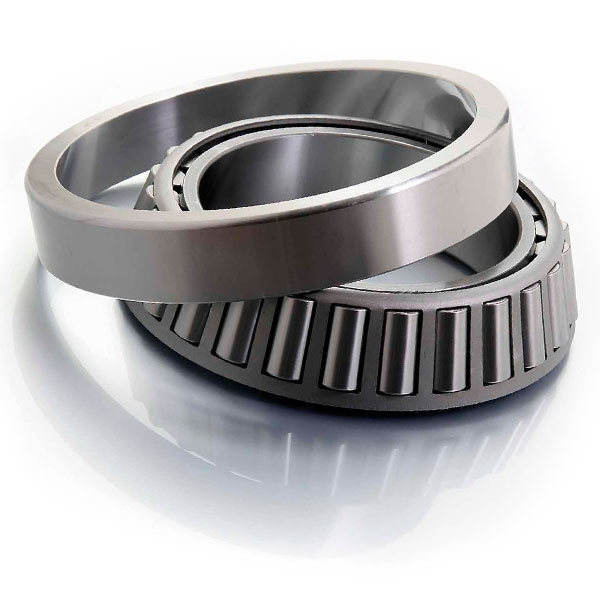

JM969241DW / JM969211 Miniature Tapered Roller Bearings CO C3 Tolerance Grade

JM969241DW / JM969211 Miniature Tapered Roller Bearings CO C3 Tolerance Grade
Features Gallery Product Description Request A Quote
D: 400
D: 650
T: 240
Keywords: Crossed Tapered Roller Bearings Suppliers China
High Light:

tapered ball bearing


electric motor bearings

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Model Number: JM969241DW/JM969211
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 100pcs/week
Product Description


Type tapered roller bearings suppliers china
items JM969241DW/JM969211
brand MONTON
Belong all kinds of bearings
new designations JM969241DW/JM969211
Old spec.
d 400 mm
D 650 mm
B 240 mm
weight 285 kg
basic code
cage Brasee
material Gcr15
Tolerance grade CO C3


Tapered roller bearings are rolling element bearings that can support axial forces (i.e., they are good thrust bearings) as well as radial forces.
The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing. This geometry makes the motion of the cones remain coaxial, with no sliding motion between the raceways and the OD of the rollers.

This conical geometry creates a linear contact patch which permits greater loads to be carried than with spherical (ball) bearings, which have point contact. The geometry means that the tangential speeds of the surfaces of each of the rollers are the same as their raceways along the whole length of the contact patch and no differential scrubbing occurs.

The rollers are stabilized and restrained by a flange on the inner ring, against which their large end slides, which stops the rollers from popping out due to the "pumpkin seed effect" of their conical shape.

The larger the half angles of these cones the larger the axial force that the bearing can sustain.

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains & evenly spaces the rollers. The cup is simply the outer ring. Internal clearance is established during mounting by the axial position of the cone relative to the cup, although preloaded installations without clearance are common.

Metric tapered roller bearings follow the designation system defined by ISO 355.
