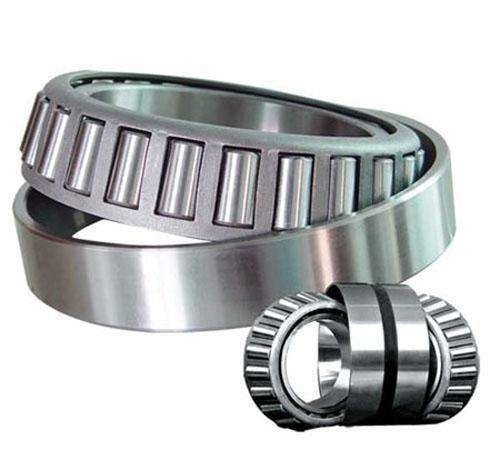

M255449 / M255410CD Imperial Design Units Sealed Taper Roller Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	MONTON
Certification:	ISO9001
Model Number:	M541349/M541310CD

Detail Information

Place of Origin:

CHINA

Brand Name:

MONTON

Certification:

ISO9001

Model Number:

M541349/M541310CD

288.925

406.4

165.1

Keywords:

Sealed Taper Roller Bearing

Highlight:

High Light

Highlight:

tapered ball bearing

anti friction bearing

Trading Information

Minimum Order Quantity:

Price:

USD

Packaging Details:

Singlebox

Delivery Time:

7-35 days

Payment Terms:

T/T

Supply Ability:

100pcs/week

Product Description

M255449/M255410CD

Specifications

Series	M255400
Cone Part Number	M255449
Cup Part Number	M255410CD
Design Units	Imperial
Bearing Weight	138.38 lb62.768 Kg
Cage Type	Pin-Type
Ab - Cage-Cone Frontface Clearance	0.22 in5.6 mm

Dimensions

d - Bore	11.3750 in288.925 mm
D - Cup Outer Diameter	16.0000 in406.400 mm
B - Cone Width	3.0625 in77.788 mm
C - Double Cup Width	5.1250 in130.175 mm
T - Bearing Width across Cones	6.4999 in165.097 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius¹	0.25 in6.400 mm
r - Cup Frontface "To Clear" Radius²	0.06 in1.5 mm
db - Cone Backface Backing Diameter	12.44 in316 mm
Da - Cup Frontface Backing Diameter	15.28 in388.11 mm
Aa - Cage-Cone Backface Clearance	0.15 in3.8 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	69300 lbf308000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	466000 lbf2070000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	121000 lbf537000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	40100 lbf179000 N

Factors

K - Factor⁷	1.73
e - ISO Factor⁸	0.71
Y1 - ISO Factor⁹	0.951.41
Y2 - ISO Factor¹⁰	1.41
G1 - Heat Generation Factor (Roller-Raceway)¹¹	2300
G2 - Heat Generation Factor (Rib-Roller End)	287
Cg - Geometry Factor¹²	0.172

We can also source nearly any bearing etc not listed on our site on any make all at market Leading Prices.Leave a message to us, we will give you a reply as soon as possible.

We currently have 100 pcs of M255449/M255410CD Inch Tapered Roller Bearing In Stock.If you have requirements for M 255449/M 255410CD Bearing,please feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.

Besides,we also have other Similar Models In Stock.

For more details of M255449/M255410CD,please feel free to contact me by WhatsApp or SKYPE or E-mail.
