30202A Stainless Steel Ball Bearings / Precision Roller Bearing Low Friction

1
MOQ
USD
Price
30202A Stainless Steel Ball Bearings / Precision Roller Bearing Low Friction
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

tapered ball bearing

,

electric motor bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 30202A
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Product Description

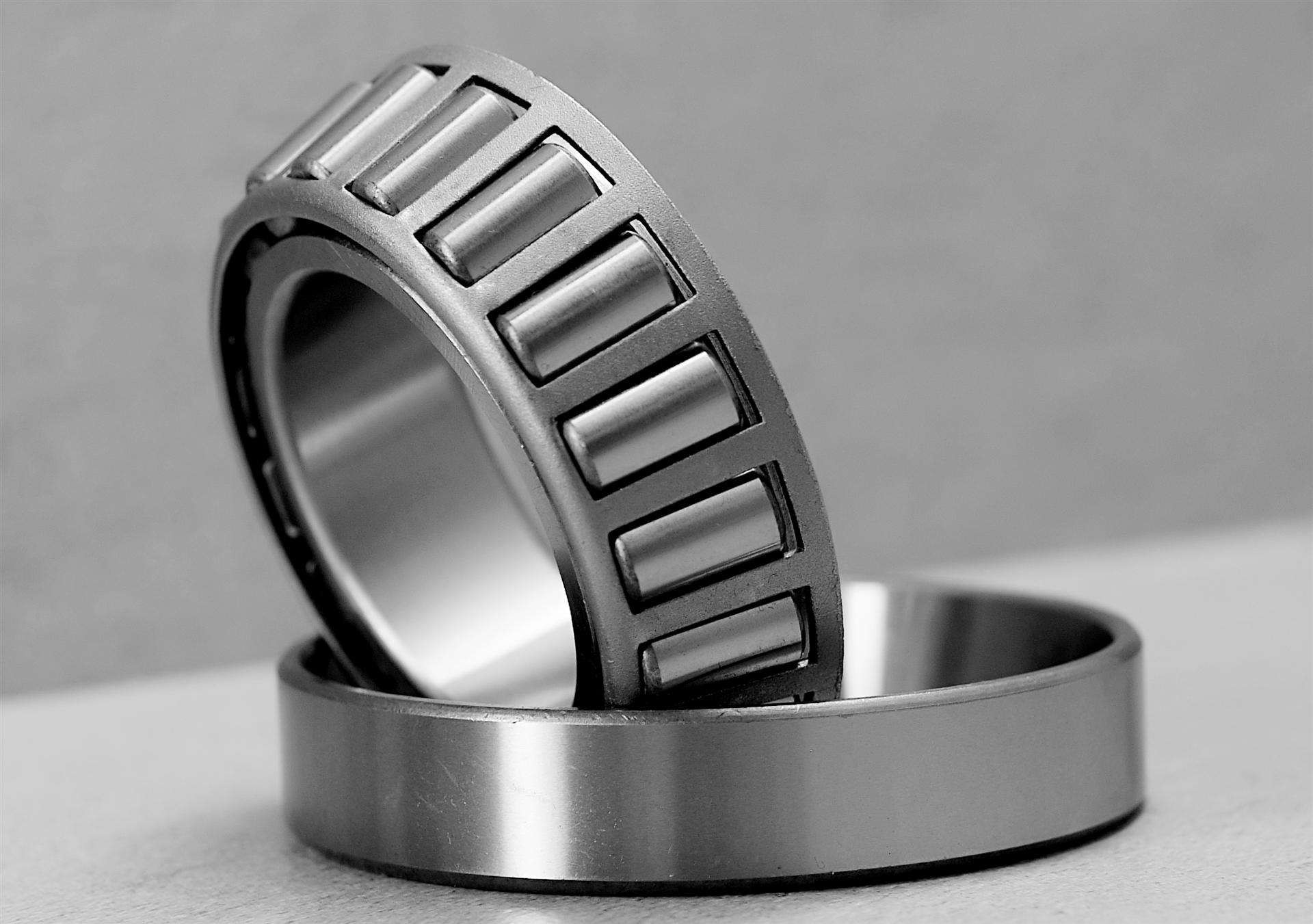

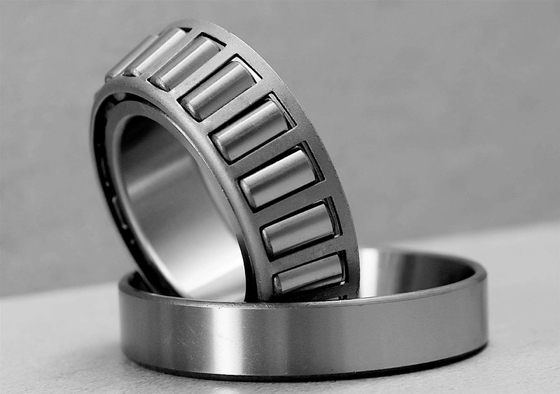

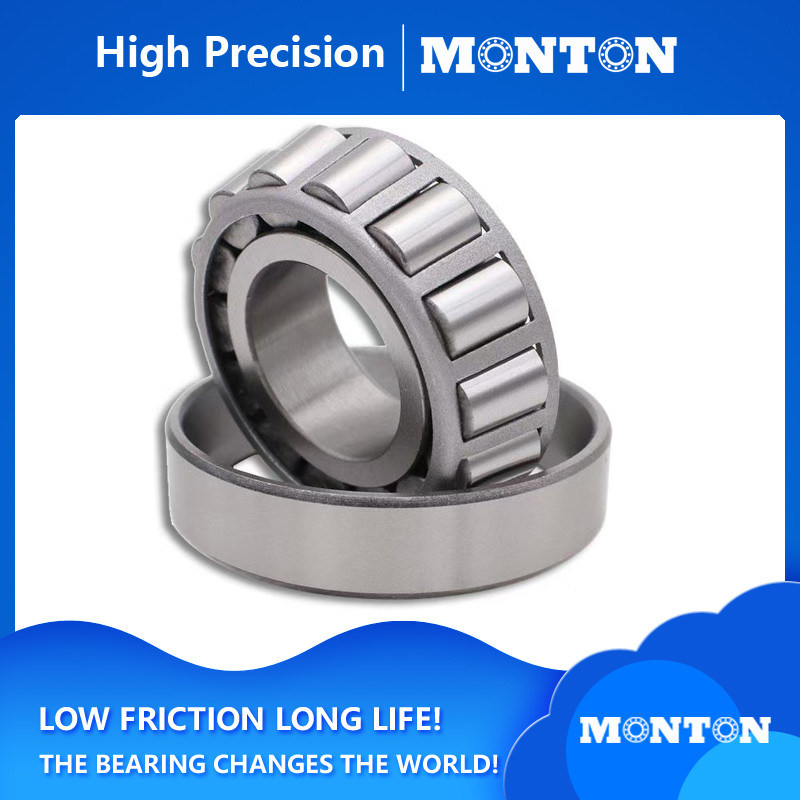

Tapered roller bearings have tapered inner and outer ring raceways as well as tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis  to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°, is related to the calculation factor e: the larger the value of e, the larger the contact angle.



Bearing features


Low friction


The optimized roller end design and surface finish on the flange promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
Long service life
The crowned raceway profiles of basic design bearings and the logarithmic raceway profiles of  bearings optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends , and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles .
Enhanced operational reliability
Optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.


Consistency of roller profiles and sizes
The rollers incorporated in tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.


Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Tapered roller bearings typically have a running-in period, during which a conventional design tapered roller bearing experiences a significant amount of friction, resulting in wear. This effect is noticed as a temperature spike . With  tapered roller bearing designs, friction, frictional heat and wear are significantly reduced, provided the bearings are mounted and lubricated correctly.
Separable and interchangeable
Depending on the design, tapered roller bearings are separable and components of same-sized bearings are fully interchangeable. For example, single row tapered roller bearings are separable (fig. 5), i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). This facilitates mounting, dismounting and also maintenance inspection routines.



DESIGNATION DESCRIPTION d(mm) D(mm) B(mm) Net Weight(kg)
30202A TAPERED ROLLER BEARINGS 15 35 11.75 0.057
30203A TAPERED ROLLER BEARINGS 17 40 13.25 0.074
30204A TAPERED ROLLER BEARINGS 20 47 15.25 0.129
30205A TAPERED ROLLER BEARINGS 25 52 16.25 0.157
30206A TAPERED ROLLER BEARINGS 30 62 17.25 0.24
30207A TAPERED ROLLER BEARINGS 35 72 18.25 0.341
30208A TAPERED ROLLER BEARINGS 40 80 19.75 0.436
30209A TAPERED ROLLER BEARINGS 45 85 20.75 0.499
30210A TAPERED ROLLER BEARINGS 50 90 21.75 0.566
30211A TAPERED ROLLER BEARINGS 55 100 22.75 0.731
30212A TAPERED ROLLER BEARINGS 60 110 23.75 0.86
30213A TAPERED ROLLER BEARINGS 65 120 24.75 1.17
30214A TAPERED ROLLER BEARINGS 70 125 26.25 1.3
30215A TAPERED ROLLER BEARINGS 75 130 27.25 1.41
30216A TAPERED ROLLER BEARINGS 80 140 28.25 1.7
30217A TAPERED ROLLER BEARINGS 85 150 30.5 2.14
30218A TAPERED ROLLER BEARINGS 90 160 32.5 2.63
30219A TAPERED ROLLER BEARINGS 95 170 34.5 3.17
30220A TAPERED ROLLER BEARINGS 100 180 37 3.54
30221A TAPERED ROLLER BEARINGS 105 190 39 4.26
30222A TAPERED ROLLER BEARINGS 110 200 41 5
30224A TAPERED ROLLER BEARINGS 120 215 43.5 6.01
30226A TAPERED ROLLER BEARINGS 130 230 43.75 7.6
30228A TAPERED ROLLER BEARINGS 140 250 45.75 8.5
30230A TAPERED ROLLER BEARINGS 150 270 49 10.7
30232A TAPERED ROLLER BEARINGS 160 290 52 13.6
30234A TAPERED ROLLER BEARINGS 170 310 57 16.8
30236A TAPERED ROLLER BEARINGS 180 320 57 17.9
30238A TAPERED ROLLER BEARINGS 190 340 60 20.1
30240A TAPERED ROLLER BEARINGS 200 360 64 25.2
30244A TAPERED ROLLER BEARINGS 220 400 72 34.6
30302A TAPERED ROLLER BEARINGS 15 42 14.25 0.09
30303A TAPERED ROLLER BEARINGS 17 47 15.25 0.13
30304A TAPERED ROLLER BEARINGS 20 52 16.25 0.175
30305A TAPERED ROLLER BEARINGS 25 62 18.25 0.25
30306A TAPERED ROLLER BEARINGS 30 72 20.75 0.407
30307A TAPERED ROLLER BEARINGS 35 80 22.75 0.541
30308A TAPERED ROLLER BEARINGS 40 90 25.25 0.769
30309A TAPERED ROLLER BEARINGS 45 100 27.25 1.02
30310A TAPERED ROLLER BEARINGS 50 110 29.25 1.3
30311A TAPERED ROLLER BEARINGS 55 120 31.5 1.67
30312A TAPERED ROLLER BEARINGS 60 130 33.5 2.06
30313A TAPERED ROLLER BEARINGS 65 140 36 2.55
30314A TAPERED ROLLER BEARINGS 70 150 38 3
30315A TAPERED ROLLER BEARINGS 75 160 40 3.69
30316A TAPERED ROLLER BEARINGS 80 170 42.5 4.42
30317A TAPERED ROLLER BEARINGS 85 180 44.5 5.13
30318A TAPERED ROLLER BEARINGS 90 190 46.5 5.5
30319A TAPERED ROLLER BEARINGS 95 200 49.5 6.7
30320A TAPERED ROLLER BEARINGS 100 215 51.5 8.47
30321A TAPERED ROLLER BEARINGS 105 225 53.5 9.38
30322A TAPERED ROLLER BEARINGS 110 240 54.5 12.5
30324A TAPERED ROLLER BEARINGS 120 260 59.5 13.6
30326A TAPERED ROLLER BEARINGS 130 280 63.75 16.6
30328A TAPERED ROLLER BEARINGS 140 300 67.75 20.4
30330A TAPERED ROLLER BEARINGS 150 320 72 25.1
30332A TAPERED ROLLER BEARINGS 160 340 75 29
31305A TAPERED ROLLER BEARINGS 25 62 18.25 0.255
31306A TAPERED ROLLER BEARINGS 30 72 20.75 0.39
31307A TAPERED ROLLER BEARINGS 35 80 22.75 0.52
31308A TAPERED ROLLER BEARINGS 40 90 25.25 0.752
31309A TAPERED ROLLER BEARINGS 45 100 27.25 1
31310A TAPERED ROLLER BEARINGS 50 110 29.25 1.28
31311A TAPERED ROLLER BEARINGS 55 120 31.5 1.63
31312A TAPERED ROLLER BEARINGS 60 130 33.5 1.83
31313A TAPERED ROLLER BEARINGS 65 140 36 2.25
31314A TAPERED ROLLER BEARINGS 70 150 38 2.82
31315A TAPERED ROLLER BEARINGS 75 160 40 3.5
31316A TAPERED ROLLER BEARINGS 80 170 42.5 4.07
31317A TAPERED ROLLER BEARINGS 85 180 44.5 5.08
31318A TAPERED ROLLER BEARINGS 90 190 46.5 5.92
31319A TAPERED ROLLER BEARINGS 95 200 49.5 6.95
31320A TAPERED ROLLER BEARINGS 100 215 56.5 8.6
31322A TAPERED ROLLER BEARINGS 110 240 63 12
31324X TAPERED ROLLER BEARINGS 120 260 68 15.5
31326A TAPERED ROLLER BEARINGS 130 280 72 18.6
31328A TAPERED ROLLER BEARINGS 140 300 77 23.9
31330A TAPERED ROLLER BEARINGS 150 320 82 29.5
32004XA TAPERED ROLLER BEARINGS 20 42 15 0.102
32005XA TAPERED ROLLER BEARINGS 25 47 15 0.113
32006XA TAPERED ROLLER BEARINGS 30 55 17 0.175
32007XA TAPERED ROLLER BEARINGS 35 62 18 0.225
32008XA TAPERED ROLLER BEARINGS 40 68 19 0.279
32009XA TAPERED ROLLER BEARINGS 45 75 20 0.356
32010XA TAPERED ROLLER BEARINGS 50 80 20 0.387
32011XA TAPERED ROLLER BEARINGS 55 90 23 0.574
32012XA TAPERED ROLLER BEARINGS 60 95 23 0.61
32013XA TAPERED ROLLER BEARINGS 65 100 23 0.646
32014XA TAPERED ROLLER BEARINGS 70 110 25 0.88
32015XA TAPERED ROLLER BEARINGS 75 115 25 0.922
32016XA TAPERED ROLLER BEARINGS 80 125 29 1.29
32017XA TAPERED ROLLER BEARINGS 85 130 29 1.37
32018XA TAPERED ROLLER BEARINGS 90 140 32 1.76
32019XA TAPERED ROLLER BEARINGS 95 145 32 1.85
32020XA TAPERED ROLLER BEARINGS 100 150 32 1.93
32021XA TAPERED ROLLER BEARINGS 105 160 35 2.44
32022XA TAPERED ROLLER BEARINGS 110 170 38 3.01
32024XA TAPERED ROLLER BEARINGS 120 180 38 3.25
32026XA TAPERED ROLLER BEARINGS 130 200 45 5.06
32028XA TAPERED ROLLER BEARINGS 140 210 45 5.38
32030XA TAPERED ROLLER BEARINGS 150 225 48 6.35
32032XA TAPERED ROLLER BEARINGS 160 240 51 7.75
32034XA TAPERED ROLLER BEARINGS 170 260 57 10.5
32036XA TAPERED ROLLER BEARINGS 180 280 64 14.5
32038XA TAPERED ROLLER BEARINGS 190 290 64 15
32040XA TAPERED ROLLER BEARINGS 200 310 70 19.5
32044XA TAPERED ROLLER BEARINGS 220 340 76 25.5
32048XA TAPERED ROLLER BEARINGS 240 360 76 27.5
32052XA TAPERED ROLLER BEARINGS 260 400 87 41.1
32056XA TAPERED ROLLER BEARINGS 280 420 87 40.5
32060XA TAPERED ROLLER BEARINGS 300 460 100 58
32064X TAPERED ROLLER BEARINGS 320 480 100 63
32203A TAPERED ROLLER BEARINGS 17 40 17.25 0.105
32204A TAPERED ROLLER BEARINGS 20 47 19.25 0.166
32205A TAPERED ROLLER BEARINGS 25 52 19.25 0.182
32206A TAPERED ROLLER BEARINGS 30 62 21.25 0.28
32207A TAPERED ROLLER BEARINGS 35 72 24.25 0.42
32208A TAPERED ROLLER BEARINGS 40 80 24.55 0.555
32209A TAPERED ROLLER BEARINGS 45 85 24.75 0.598
32210A TAPERED ROLLER BEARINGS 50 90 24.75 0.644
32211A TAPERED ROLLER BEARINGS 55 100 26.75 0.82
32212A TAPERED ROLLER BEARINGS 60 110 29.75 1.1
32213A TAPERED ROLLER BEARINGS 65 120 32.75 1.58
32214A TAPERED ROLLER BEARINGS 70 125 33.25 1.68
32215A TAPERED ROLLER BEARINGS 75 130 33.25 1.77
32216A TAPERED ROLLER BEARINGS 80 140 35.25 2.19
32217A TAPERED ROLLER BEARINGS 85 150 38.5 2.5
32218A TAPERED ROLLER BEARINGS 90 160 42.5 3.49
32219A TAPERED ROLLER BEARINGS 95 170 45.5 4.32
32220A TAPERED ROLLER BEARINGS 100 180 49 4.76
32221A TAPERED ROLLER BEARINGS 105 190 53 5.9
32222A TAPERED ROLLER BEARINGS 110 200 56 6.9
32224A TAPERED ROLLER BEARINGS 120 215 61.5 8.59
32226A TAPERED ROLLER BEARINGS 130 230 67.75 10.7
32228A TAPERED ROLLER BEARINGS 140 250 71.75 13.9
32230A TAPERED ROLLER BEARINGS 150 270 77 17.9
32232A TAPERED ROLLER BEARINGS 160 290 84 25.5
32234A TAPERED ROLLER BEARINGS 170 310 91 29.3
32236A TAPERED ROLLER BEARINGS 180 320 91 29.3
32238A TAPERED ROLLER BEARINGS 190 340 97 36.7
32240A TAPERED ROLLER BEARINGS 200 360 104 44.1
32244A TAPERED ROLLER BEARINGS 220 400 114 60
32248A TAPERED ROLLER BEARINGS 240 440 127 80.5
32252A TAPERED ROLLER BEARINGS 260 480 137 105
32260A TAPERED ROLLER BEARINGS 300 540 149 149
32303A TAPERED ROLLER BEARINGS 17 47 20.25 0.17
32304A TAPERED ROLLER BEARINGS 20 52 22.25 0.246
32305A TAPERED ROLLER BEARINGS 25 62 25.25 0.383
32306A TAPERED ROLLER BEARINGS 30 72 28.75 0.582
32307A TAPERED ROLLER BEARINGS 35 80 32.75 0.786
32308A TAPERED ROLLER BEARINGS 40 90 35.25 1.08
32309A TAPERED ROLLER BEARINGS 45 100 38.25 1.47
32310A TAPERED ROLLER BEARINGS 50 110 42.25 1.96
32311A TAPERED ROLLER BEARINGS 55 120 45.5 2.47
32312A TAPERED ROLLER BEARINGS 60 130 48.5 2.8
32313A TAPERED ROLLER BEARINGS 65 140 51 3.07
32314A TAPERED ROLLER BEARINGS 70 150 54 4.53
32315A TAPERED ROLLER BEARINGS 75 160 58 5.54
32316A TAPERED ROLLER BEARINGS 80 170 61.5 6.47
32317A TAPERED ROLLER BEARINGS 85 180 63.5 7.57
32318A TAPERED ROLLER BEARINGS 90 190 67.5 9.07
32319A TAPERED ROLLER BEARINGS 95 200 71.5 11
32320A TAPERED ROLLER BEARINGS 100 215 77.5 14
32321A TAPERED ROLLER BEARINGS 105 225 81.5 14.5
32322A TAPERED ROLLER BEARINGS 110 240 84.5 16.4
32324A TAPERED ROLLER BEARINGS 120 260 90.5 24.5
32326A TAPERED ROLLER BEARINGS 130 280 98.75 27.6
32328A TAPERED ROLLER BEARINGS 140 0 0 0.001
32330A TAPERED ROLLER BEARINGS 150 320 114 46.1
32332A TAPERED ROLLER BEARINGS 160 0 0 0.001
32907 TAPERED ROLLER BEARINGS 35 55 14 0.12
32912 TAPERED ROLLER BEARINGS 0 0 0 1
32914 TAPERED ROLLER BEARINGS 70 0 0 0.4
32915 TAPERED ROLLER BEARINGS 75 105 20 0.52
32916 TAPERED ROLLER BEARINGS 80 110 20 0.56
32918 TAPERED ROLLER BEARINGS 90 125 23 0.841
32920 TAPERED ROLLER BEARINGS 100 140 25 1.18
32924 TAPERED ROLLER BEARINGS 120 165 29 1.82
32926 TAPERED ROLLER BEARINGS 130 180 32 2.4
32928 TAPERED ROLLER BEARINGS 140 190 32 2.49
32930 TAPERED ROLLER BEARINGS 150 210 38 3.9
32934 TAPERED ROLLER BEARINGS 170 230 38 4.36
32936 TAPERED ROLLER BEARINGS 180 250 45 6.65
32938 TAPERED ROLLER BEARINGS 190 260 45 6.88
32940 TAPERED ROLLER BEARINGS 200 280 51 9.38
32944 TAPERED ROLLER BEARINGS 220 300 51 10.2
32948 TAPERED ROLLER BEARINGS 200 280 51 12.5
32952 TAPERED ROLLER BEARINGS 260 360 63.5 19.2
32956 TAPERED ROLLER BEARINGS 280 380 63.5 24
32960 TAPERED ROLLER BEARINGS 300 420 76 32
32964 TAPERED ROLLER BEARINGS 320 440 76 33.5
32968 TAPERED ROLLER BEARINGS 340 460 76 35
32972 TAPERED ROLLER BEARINGS 360 480 76 37
33005 TAPERED ROLLER BEARINGS 0 0 0 0.1
33008 TAPERED ROLLER BEARINGS 40 68 22 0.73
33009 TAPERED ROLLER BEARINGS 45 75 24 0.439
33010 TAPERED ROLLER BEARINGS 50 80 24 0.45
33011 TAPERED ROLLER BEARINGS 55 90 27 0.675
33012 TAPERED ROLLER BEARINGS 60 95 27 0.71
33013 TAPERED ROLLER BEARINGS 65 100 27 0.78
33014 TAPERED ROLLER BEARINGS 70 110 31 1.1
33015 TAPERED ROLLER BEARINGS 75 115 31 1.15
33016 TAPERED ROLLER BEARINGS 80 125 36 1.65
33017 TAPERED ROLLER BEARINGS 85 130 36 1.75
33018 TAPERED ROLLER BEARINGS 90 140 39 2.25
33019 TAPERED ROLLER BEARINGS 95 145 39 2.3
33020 TAPERED ROLLER BEARINGS 100 150 39 2.4
33021 TAPERED ROLLER BEARINGS 105 160 43 3.06
33022 TAPERED ROLLER BEARINGS 110 170 47 3.88
33024 TAPERED ROLLER BEARINGS 120 180 48 4.2
33030 TAPERED ROLLER BEARINGS 150 225 60.54 8.056
33108 TAPERED ROLLER BEARINGS 40 75 26 0.51
33109 TAPERED ROLLER BEARINGS 45 80 26 0.56
33110 TAPERED ROLLER BEARINGS 50 85 26 0.59
33111 TAPERED ROLLER BEARINGS 55 95 30 0.86
33112 TAPERED ROLLER BEARINGS 60 100 30 0.92
33113 TAPERED ROLLER BEARINGS 65 110 34 1.3
33114 TAPERED ROLLER BEARINGS 70 120 37 1.7
33115 TAPERED ROLLER BEARINGS 75 125 37 1.8
33116 TAPERED ROLLER BEARINGS 80 130 37 1.9
33117 TAPERED ROLLER BEARINGS 85 140 41 2.45
33118 TAPERED ROLLER BEARINGS 90 150 45 3.1
33122 TAPERED ROLLER BEARINGS 110 180 58.43 5.508
33205 TAPERED ROLLER BEARINGS 25 52 22 0.22
33206 TAPERED ROLLER BEARINGS 30 62 25 0.37
33207 TAPERED ROLLER BEARINGS 35 72 28 0.56
33208 TAPERED ROLLER BEARINGS 40 80 32 0.77
33209 TAPERED ROLLER BEARINGS 45 85 32 0.82
33210 TAPERED ROLLER BEARINGS 50 90 32 0.9
33211 TAPERED ROLLER BEARINGS 55 100 35 1.2
33212 TAPERED ROLLER BEARINGS 60 110 38 1.6
33213 TAPERED ROLLER BEARINGS 65 120 41 2.05
33214 TAPERED ROLLER BEARINGS 70 125 41 2.1
33215 TAPERED ROLLER BEARINGS 75 130 41 2.25
33216 TAPERED ROLLER BEARINGS 80 140 46 2.9
33217 TAPERED ROLLER BEARINGS 85 150 49 3.7
33218 TAPERED ROLLER BEARINGS 90 160 45 4
33219 TAPERED ROLLER BEARINGS 95 170 58 5.66
33220 TAPERED ROLLER BEARINGS 100 180 63 6.95



EE517060D/517117
EE107057/EE107105
EE107060/EE107105
EE420751/EE421437
EE350750/351687
EE350750/EE351687
EE132084/EE132125
EE130851/EE131400
EE130889/EE131400
EE430888/EE431575
EE130902/EE131400
EE430900/EE431575
EE170950/EE171436
EE275095/EE275155
EE923095/EE923175
EE923095/EE923176D
EE390095/EE390200
EE170975/EE171450
EE275100/EE275155
EE822100/EE822175
EE134102/EE134143
EE134102/EE134144D
EE221026/EE221575
EE128102/128161
EE295102/EE295193
EE275105/EE275155
EE275108/EE275155
EE722110/EE722185
EE722110/722186D
EE295110/EE295193
EE135111/EE135155
EE128111/EE128160
EE722115/EE722185
EE29120/291749
EE291201/EE291749
EE941205/EE941950
EE724120/EE724195
EE790120/EE790221
EE291250/EE291750
EE526132/EE526190
EE526132/EE526161D
EE161300/EE161850
EE161363/EE161900
EE203137/EE203190
EE333137/EE333197
EE161400/EE161850
EE231400/EE231975
EE333140/EE338197
EE231462/EE232025
EE333140/333203CD
EE231462/EE231976DC
EE234154/EE234215
EE234156/EE234215
EE234160/EE234220
EE911600/EE912400
EE323166/323290
EE328167/EE328269
EE241701/EE242375
EE650171D/650270
EE244180/EE244235
EE244180/244236CD
EE243190/EE243250
EE640192/EE640260
EE243192/EE243250
EE243196/EE243250
EE843220/EE843290
EE649239/EE649310
EE649239/EE649310
EE649240/EE649310
EE655270/EE655345
EE755280/EE755360
EE755285/EE755360
EE752300/EE752380
EE752305/EE752381D
EE762320/762401D
EE763330/EE763410
EE168400/EE168500
EE168400/EE168500
EE277455/EE277565

Tag:

steel ball bearings

spherical roller bearing

wheel hub bearing

Recommended Products
Get in touch with us
Tel : +86 13213639372
Fax : 86--13213639372
Characters Remaining(20/3000)
Get In Touch
No.119 JianShe Road,luoyang city 471000,China
sales@montonbearings.com
+86 13213639372
About
Company Profile Factory Tour Quality Control Contact Us
Products
Angular Contact Ball BearingMud Motor BearingsLNG Pump Bearing All Categories
Mail Us
Let us know your requirement. We will connect best products with you.
Sitemap │ Mobile Site │ Privacy Policy
China spherical roller bearing Supplier. Copyright © 2017 - 2024 angularcontact-ballbearing.com. All Rights Reserved. Developed by ECER
