EE 649239 / 649310 Taper Roller Bearing Stainless Steel Ball Bearings

1
MOQ
USD
Price
EE 649239 / 649310 Taper Roller Bearing Stainless Steel Ball Bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: G20CrNi4A Or GCr15SiMn
Accuracy: P5
Vibration: Z1V1 Or Z2V2
Application: Rolling Mill Or Rolling Steel For Steel Or Aluminum Factory
Main Customers: Aluminum Or Steel Factory
Main Market: Germany,Turkey
High Light:

tapered ball bearing

,

electric motor bearings

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: EE 649239/649310
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

EE 649239/649310

EE 649239/649310


Dimension series     EE 649000
Dimensions
EE 649239 / 649310 Taper Roller Bearing Stainless Steel Ball Bearings 0
d   607.72 mm
D   787.4 mm
T   93.662 mm
d1 687 mm
B   93.662 mm
C   69.85 mm
r1,2 min. 6.4 mm
r3,4 min. 6.4 mm
a   125 mm
Abutment dimensions
EE 649239 / 649310 Taper Roller Bearing Stainless Steel Ball Bearings 1
da max. 643 mm
db min. 640 mm
Da min. 732 mm
Da max. 755 mm
Db min. 755 mm
Ca min. 17 mm
Cb min. 23.5 mm
ra max. 6 mm
rb max. 6 mm
Calculation data
Basic dynamic load rating C   2160 kN
Basic static load rating C0   5300 kN
Fatigue load limit Pu   380 kN
Reference speed     450 r/min
Limiting speed     670 r/min
Calculation factor e   0.37
Calculation factor Y   1.6
Calculation factor Y0   0.9
Mass
Mass bearing     110 kg

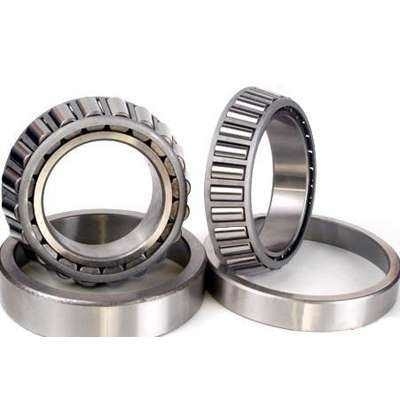

Single-Row Tapered Roller Bearings ( EE649239/649310 )

Demension: 607.72×787.4×93.662mm, Weight: 110kg.

SHAPE LOCATION TOLERANCE SHOULD BE TO CURRENT STANDARD;

Single-row tapered roller bearings primarily carry combined loads which is main in radial,and tapered roller bearings with large tapered angles (27°- 30°)primarily carry combined loads which is main in axial but not pure axial loads. These bearings can limit axial displacement of shafts or housings in one direction. The inner and outer rings can be mounted rspectively as separable structure, the outer rings are interchangeable, and they are easy to be mounted and dismounted. The radial and axial clearance can be adjusted during mounting or working, and also can be interference mounted to increase stiffness. The clearance has great influence on bearing performance. If the clearance was too small, the temperature will be high; but if it was too much, the vibration will be increased and running accuracy will be difficult to ensure. The bearings will be damaged in both cases above. Therefore, the clearance must be adjusted during mounting or working. In order to prevent stress concentration between rollers and raceway to lead to bearing damaged in early period, the obliquity between shafts and housings is not permitted while mounting.

Tapered roller bearings are widely used in real axle hubs of automotives, large machine tool spindles, large power decelerators, roller wheels of feedways, etc.

TS (Pressed Steel)

This is the most basic and most widely used type of tapered roller bearing.It consists of two main separable parts: the inner race assembly and the outer race.It is typically mounted in opposing pairson a shaft.

Single-Row Tapered Roller Bearings

Size range:
ID 7.937 to 863.600 mm (0.31225 to 34.0000 in.)
OD 31.991 to 1060.000 mm (1.2595 to 41.7323in.)

Design Attributes
●Single cone andcup.
●One-piece pressed steel cage retains rollers on the cone and spaces them evenly.
●Pin type cages also available.

Applications
●Vehicle front wheels
●Differential and pinioncon figurations
●Conveyor rolls
●Machine tool spindles
●Trailer wheels

EE923095/923176D
EE941205/941953D
EE755280/755361CD
EE649239/649310
EE107060/107105CD
EE790120/790221
EE161300/161900
EE130787/131400
EE130851/131400
EE130889/131402D
EE130903D/131400
EE114080/114161D
HM237532/HM237510CD
LL217849/LL217810
LL244549/LL244510
LL264648/264610
LL352149/LL352110
LL365348/365310
LL481448/LL481411
LL428349/428310
LL483448/LL483418
LL537649/LL537610
LL566848/566810
LL575343/LL575310
LL575349/575310
LL579749/LL579710D
LL639249/LL639210
LL641149/LL641110
LL758744/LL758715
LL771948/LL771911CD
LL771948/771911
LL778149/LL778110
L778149/778110
L814749/814710D
LL957049/LL957010
L623149/L623110D
L623149/L623110-B
L116149DA/116112/116112DE
M224749/224710DC
M231649/M2316100
M231649/M231610CD13
M231649D/M23161017
M231649D/M231610/M231610D4
M235145/M235113CD16
M236849/M2368100
M238840/M238810CD5
M238849/M238810CD1
M238849DW/238810/238810CD902A7 0
M241549/M2415100
M244249/2442101
M244249/M244210CD1
M244249D/M244210/M244210D0
M244249DW/244210/2442210CD0
M244249DGW/244210/244210D0
M244249DW/2442100
M246943/M2469107
M246947/M2469104
M249732/M249710CD2
M249736/M2497108
M249748D/710/710D2
M249748D/M24971013
M249748D/M249710/M249710CD3
M249749/M24971030
M249749/M249710CD3
M249749D/M24971010
M255448/M2554106
M255449/M2554100
M255449DW/M255410/M255410CD0
M257149DW/M257110/M257110D4
M260149DW/M260110
M262449DW/410/410D
M268730/M268710
M268749/M268710
M270749/M270710
M272749/M272710
M272749/M272710CD
M272749DW/M272710
M274149/M274110D
M274149DW/M274110
M274149TD/M274110
M275349TD/275310
M276449/M276410
M281635/281610
M348449/M348410
M349549/M349510
M432148A/M432111
M541349/M541310CD
M624649/624610
M667947DW/M667911
M667948/M667911
M667948/M667911CD
M757448DW/M757410/M757410D
M241547/M241510CD
5161052
5161048
5161039(T921)
5611172415-9901
561290C2415-9802
5612922415-9801
110KBE521X+L
320KBE30+L
160KBE2701A+L
K-LM451347/K-LM451310
2415-9900(561067B)
X22463(T750-207)
767D/752/Y7S752
543562
564041
525489
46340
882055
6218
86669/86100
47896/47820
787/773D
H238140/238110
H238148/H238110
H239640/239610
H239640/H239612CD
H239649/H239610
H239649/H239612CD
H242649/H242610
H242649/H242610CD4
H242649D/H2426102
H244849D/H2448103
H247535/H2475107
H247535/H247510CD0
H247549/H2475105
H247549/H247510CD0
H249148/H249111CD2
H263949/H263910D2
H852849/H8528101
H859049/H8590100
H924033/H924010D47
H924045/924010D38
H936340/H9363100
H936349/H9363105
H936349/H936310/H936310EG/H936349XR0
H961649/H9616109
H969249/H9692102
H244848TD/H2448100
HH221447/HH221410D
HH221449/HH221410D
HH224334/HH224310
HH224335/HH224310
HH224340/HH224310
HH224346/HH224310
HH224346/HH224310CD
HH224346H/HH224310
HH224349/HH224310
HH228340/HH228310
HH228340/HH228318
HH228349/HH228310
HH228349/HH228318
HH231649/HH231610
HH234032/HH234018
HH234040/HH234010
HH234048/HH234011CD
HH249949/HH249910
HH249949/HH249910CD
HH258248/HH258210
HH264149/HH264110CD
HH421246C/HH421210
HH437549/HH437510
HH840249/HH840210
RT 1117(H917840/H917810)
HH923649/HH923610
HH932132/HH932110
HH932145/HH932110
HH932145/HH932115
HH949549/HH949510D
HH953749/953710D
HH953749/HH953710
HH924349/HH924310D
HH926749/HH926710
H228649D/228610 90011
JL286949/JL286910
JL286948/JL286910
HM220149/HM220110
HM231132/HM231110
HM231149/HM231111CD
HM231149/HM231111D
HM231149NA/231110D/HM231149XA
HM237535/237510CD
HM237535/HM237510
HM237546D/HM237510
HM237545/HM237510
HM237545/237510CD
HM237545NA/HM237510CD
HM252348/252310
HM252348/252311D
HM252348/HM252310CD
HM252349/252310
HM256849/HM256810CD
HM256849D/HM256810
HM259048/HM259010
HM259048/HM259010CD
HM259049D/HM259010
HM259049H/HM259010CD
HM261049/HM261010CD
HM262749/HM262710
HM262749/HM262710CD
HM266449/266410
HM266449/HM266410CD
HM518445/HM518410
HM535347/HM535310
HM624749/HM624710
HM743337/HM743310CD
HM743345/HM743310CD
HM746646/HM746610
HM746646/HM746610CD
HM821547/HM821511D
HM921343/HM921310D
HM926740/HM926710
HM926740/HM926710D
HM926745/HM926710
HM926747/HM926710
HM926747/HM926710D
HM926749/HM926710
HM926749/HM926710D
HM237542D/HM237510
HM926749/HM926710CD
HM926710
HM926710
L163149D/L163110
L163149/163110
L163149/163110
L163149/163110CD
L183448/L183410
L217849/217810
L217849/L217810D
L281146/L281110
L281148/L281110
L357049/357010
L357049/L357010CD
L435049/L435010
L44643/44610
L467549/L467510
L476549/L476510
L540049/L540010
L540049/L540010D
L555249/L555210
L521949/521910
L630349/L630310
L724349/L724310
L730649/L730610
L770847DW/770810/770810D
L770847DW/770810
L848849/L848811
L853049/L853010
L860048/L860010CD
L860049/L860010CD
L860049/L860010
L865547/L865512
L865548/L865512
L879947/L879910
L879946/L879910
L570649/L570610
RT1136(T4DB180,JP18049/JP18010)
RT1040T4DB200
RT1122T4CB110
