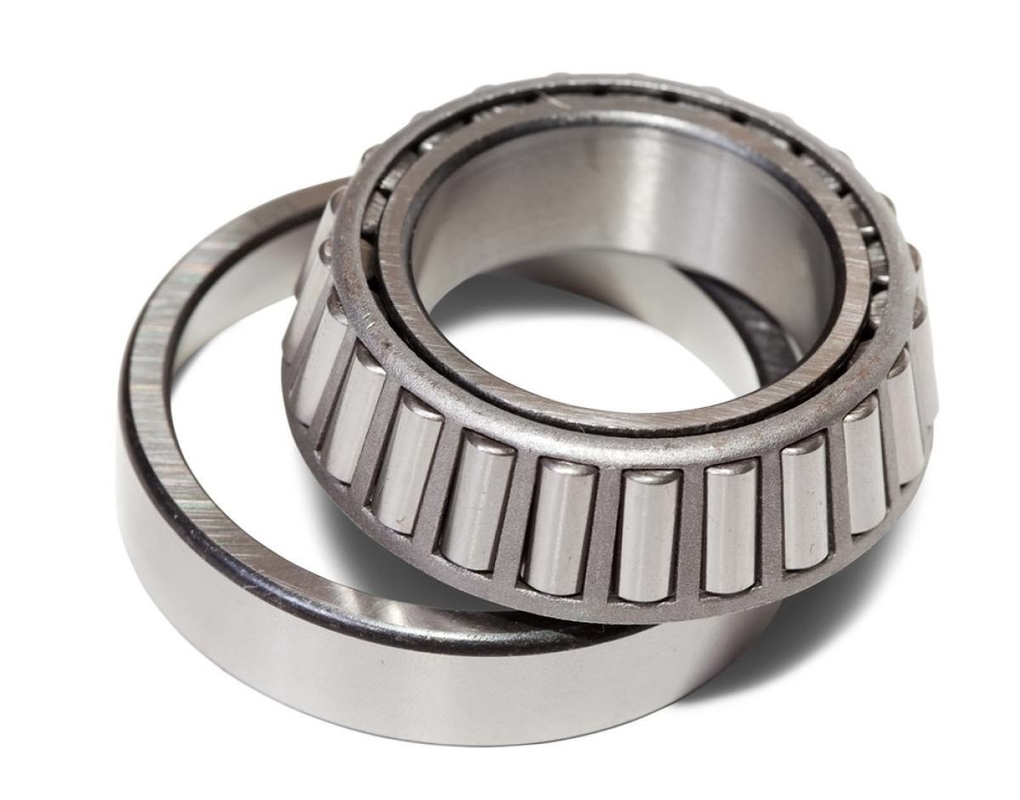

HH228340 / HH228310
Series |
HH228300 |
Cone Part Number |
HH228340 |
Cup Part Number |
HH228310 |
Design Units |
Imperial |
Bearing Weight |
18.6 Kg40.900 lb |
Cage Type |
Stamped Steel |
d - Bore |
120.650 mm4.7500 in |
D - Cup Outer Diameter |
254.000 mm10.0000 in |
B - Cone Width |
82.550 mm3.2500 in |
C - Cup Width |
61.913 mm2.4375 in |
T - Bearing Width |
77.788 mm3.0625 in |
| R - Cone Backface "To Clear" Radius1 | 9.650 mm0.380 in |
| r - Cup Backface "To Clear" Radius2 | 6.35 mm0.250 in |
da - Cone Frontface Backing Diameter |
141.99 mm6.54 in |
db - Cone Backface Backing Diameter |
157.99 mm6.22 in |
Da - Cup Frontface Backing Diameter |
233.93 mm9.21 in |
Db - Cup Backface Backing Diameter |
223.01 mm8.78 in |
Ab - Cage-Cone Frontface Clearance |
1.3 mm0.05 in |
Aa - Cage-Cone Backface Clearance |
6.3 mm0.25 in |
| a - Effective Center Location3 | -23.4 mm-0.92 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 53000 lbf236000 N |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 205000 lbf910000 N |
C0 - Static Radial Rating |
279000 lbf1240000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 29200 lbf130000 N |
| K - Factor7 | 1.82 |
| e - ISO Factor8 | 0.32 |
| Y - ISO Factor9 | 1.87 |
G1 - Heat Generation Factor (Roller-Raceway) |
530 |
G2 - Heat Generation Factor (Rib-Roller End) |
44.8 |
Cg - Geometry Factor |
0.133 |
