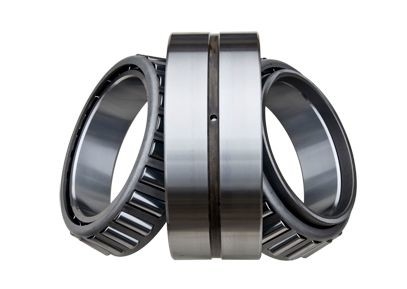

LM 241149 LM 241110D Taper Roller Bearing Concrete Mixer Truck Diagram Bearings
1pcs
MOQ
USD
Price
LM 241149 LM 241110D Taper Roller Bearing Concrete Mixer Truck Diagram Bearings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Model Number: LM 241149/LM 241110 D/XA
High Light:

tapered ball bearing

,

electric motor bearings

Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 7-35 days
Specifications
Name: Tapered Roller Bearings T4CB120-XL
D: 120
D: 170
T: 27
Weight: 1.74KG
Keywords: Precision Bearing And Machine
Product Description

LM 241149/LM 241110 D/XA



Specifications

EE420793/421450 bearing very light in Bahrain are widely used in industrial drive, agriculture, compressors, motors and generators, construction, industrial fan, industrial transmission and other fields. EE420793/421450 bearing very light in Bahrain can ensure high quality for more than 80% raw material of EE420793/421450 bearing very light in Bahrain provided by the steel plant.

Explorer series bearing of EE420793/421450 bearing very light in Bahrain are better than any brand bearings currently in bearing performance , lifetime, design, and the use of performance. Explorer series bearings of EE420793/421450 bearing very light in Bahrain have more advantages ,such as higher meet rated , lower noise, reducing warranty costs greatly, increasing running time of the machine.



Combined with the ll641110-3 bearing find best in Greece, ll641110-3 bearing find best in Greece has the most complete product outline in rolling bearing industry ll641110-3 bearing find best in Greece provide customers with a series of comprehensive and perfect service and technical support.

The main application areas of ll641110-3 bearing find best in Greece bearings: aerospace engineering, metal cutting machine tools, steel processing equipment,paper making machinery, cement machinery, engineering machinery and mechanical vibration, environmental protection equipment, packaging machinery and so on.The main types of ll641110-3 bearing find best in Greece bearings : deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, thrust ball bearings, thrust roller bearings, joint bearings, etc

Series

LM241100

Cone Part Number

LM241149

Cup Part Number

LM241110

Design Units

Imperial

Bearing Weight

7 Kg15.5 lb

Cage Type

Stamped Steel

Dimensions

d - Bore

203.2 mm8 in

D - Cup Outer Diameter

276.225 mm10.875 in

B - Cone Width

42.863 mm1.6875 in

C - Cup Width

34.133 mm1.3438 in

T - Bearing Width

42.863 mm1.6875 in

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 3.560 mm0.14 in
r - Cup Backface "To Clear" Radius2 3.30 mm0.130 in

da - Cone Frontface Backing Diameter

214.12 mm9.37 in

db - Cone Backface Backing Diameter

219.96 mm8.66 in

Da - Cup Frontface Backing Diameter

267.00 mm10.55 in

Db - Cup Backface Backing Diameter

260.10 mm10.24 in

Ab - Cage-Cone Frontface Clearance

2.3 mm0.09 in

Aa - Cage-Cone Backface Clearance

2.3 mm0.09 in
a - Effective Center Location3 1.8 mm0.07 in

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)4 25600 lbf114000 N
C1 - Dynamic Radial Rating (1 million revolutions)5 98700 lbf439000 N

C0 - Static Radial Rating

182000 lbf811000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 14000 lbf62100 N

Factors

K - Factor7 1.83
e - ISO Factor8 0.32
Y - ISO Factor9 1.88

G1 - Heat Generation Factor (Roller-Raceway)

774

G2 - Heat Generation Factor (Rib-Roller End)

182

Cg - Geometry Factor

0.117
