M244249 - M244210,

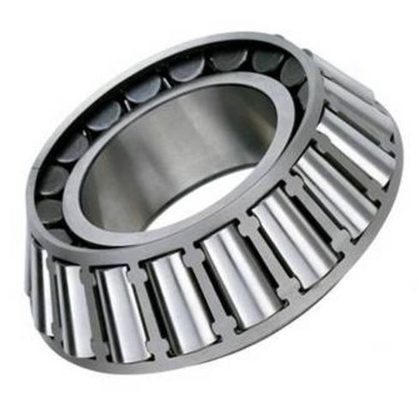

Tapered Roller Bearings
harmonic drive robot arm bearings
Series |
M244200 |
Cone Part Number |
M244249 |
Cup Part Number |
M244210 |
Design Units |
Imperial |
Bearing Weight |
14.50 Kg32 lb |
Cage Type |
Stamped Steel |
d - Bore |
220.663 mm8.6875 in |
D - Cup Outer Diameter |
314.325 mm12.3750 in |
B - Cone Width |
61.913 mm2.4375 in |
C - Cup Width |
49.213 mm1.9375 in |
T - Bearing Width |
61.913 mm2.4375 in |
| R - Cone Backface "To Clear" Radius1 | 6.35 mm0.25 in |
| r - Cup Backface "To Clear" Radius2 | 3.30 mm0.130 in |
da - Cone Frontface Backing Diameter |
234.95 mm10.35 in |
db - Cone Backface Backing Diameter |
245.11 mm9.65 in |
Da - Cup Frontface Backing Diameter |
300.00 mm11.84 in |
Db - Cup Backface Backing Diameter |
293.12 mm11.54 in |
Ab - Cage-Cone Frontface Clearance |
3.6 mm0.14 in |
Aa - Cage-Cone Backface Clearance |
4.3 mm0.17 in |
| a - Effective Center Location3 | -4.6 mm-0.18 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 40500 lbf180000 N |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 156000 lbf695000 N |
C0 - Static Radial Rating |
308000 lbf1370000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 23100 lbf103000 N |
| K - Factor7 | 1.76 |
| e - ISO Factor8 | 0.33 |
| Y - ISO Factor9 | 1.8 |
G1 - Heat Generation Factor (Roller-Raceway) |
1150 |
G2 - Heat Generation Factor (Rib-Roller End) |
141 |
Cg - Geometry Factor |
0.136 |
|
