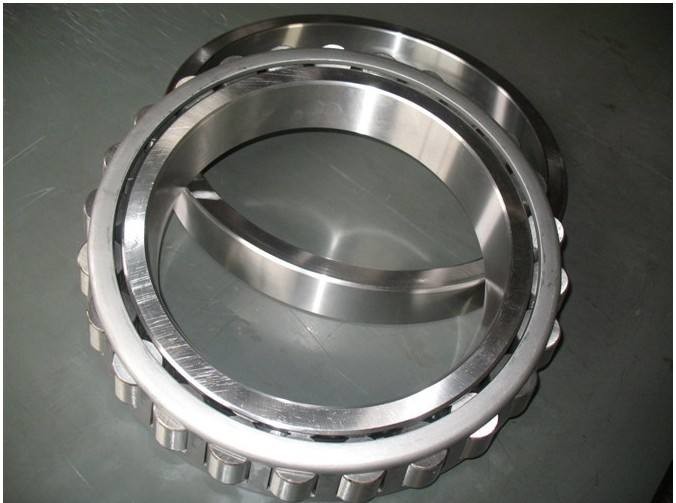

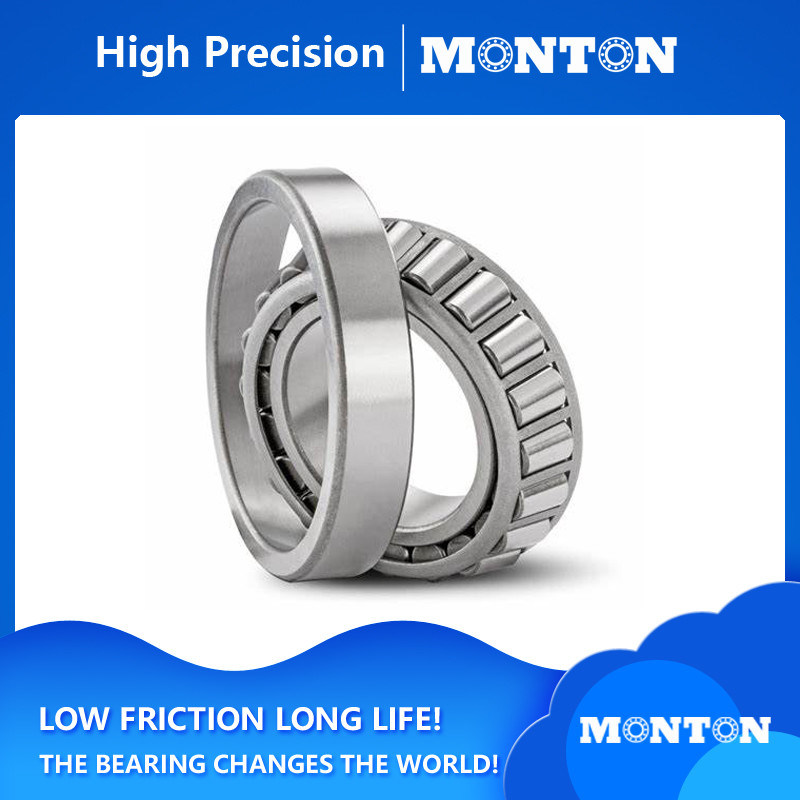

JK0S JK0S060 Tapered Roller Thrust Bearings Single Row Taper Roller Bearing
1pcs
MOQ
USD
Price
JK0S JK0S060 Tapered Roller Thrust Bearings Single Row Taper Roller Bearing
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Model Number: JK0S060
High Light:

electric motor bearings

,

anti friction bearing

Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 7-35 days
Specifications
Name: JK0S060
D: 60
D: 95
T174.625: 26
Weight: 1KG
Keywords: China Single Rowtaper Roller Bearings
Product Description

JK0S060

china single rowtaper roller bearings

Tapered roller bearings JK0S060


integral tapered roller bearings, lip seal on one side, diameter series 0




Tapered roller bearings JK0S060, integral tapered roller bearings, lip seal on one side, diameter series 0
JK0S JK0S060 Tapered Roller Thrust Bearings Single Row Taper Roller Bearing 1
Radial loadAxial load in one directionSealed on one sideGrease lubrication
JK0S JK0S060 Tapered Roller Thrust Bearings Single Row Taper Roller Bearing 1
Tapered roller bearings JK0S060, integral tapered roller bearings, lip seal on one side, diameter series 0
JK0S JK0S060 Tapered Roller Thrust Bearings Single Row Taper Roller Bearing 1
Tapered roller bearings JK0S060, integral tapered roller bearings, lip seal on one side, diameter series 0
JK0S JK0S060 Tapered Roller Thrust Bearings Single Row Taper Roller Bearing 1


d 60 mm

D 95 mm

B 26 mm


a 23 mm

C 25 mm

D1 89,3 mm

Dn 97 mm
  Nominal dimension of slot
d1 79,5 mm

da max 67 mm

db min 67 mm

m/2 1,25 mm

ra max 1,5 mm

r1, r2min 1,5 mm

u 0,03 mm

Δ Dn 0,22 mm
  Deviation Δ Dn
Δ u 0,05 mm
  Deviation Δ u

m 0,67 kg
  ≈ Mass, ungreased
  BR95
  Designation, snap ring
Cr 82000 N
  Basic dynamic load rating, radial
C0r 123000 N
  Basic static load rating, radial
e 0,43

Y 1,4

Y0 0,77

Cur 15200 N
  Fatigue limit load, radial
nG Fett 3350 1/min
  Limiting speed for grease lubrication
FBR 59300 N
  Load carrying capacity of snap ring connection
With abutment against a sharp edge
  16400 N
  Max. axial assembly clamping force of bearing pair







HH221449 / HH221410
861 / 854
98400 / 98788
HH221449 / HH221416
HH224335 / HH224310
941 / 932
EE215040 / 215098
HH923649 / HH923610
HH923649 / HH923611
782 / 772
786 / 772
787 / 772
71412 / 71750
56418 / 56650
56418 / 56662
37425 / 37625
LM522546 / LM522510
48190 / 48120
56425 / 56650
56425 / 56662
71425 / 71750
HH224340 / HH224310
936 / 932
71432 / 71750
LM522548 / LM522510
LM522549 / LM522510
64433 / 64700
^JM822049 / JM822010
^JHM522649 / JHM522610

71437 / 71750
H924045 / H924010
L623149 / L623110
64450 / 64700
◆◆68450 / 68709
68450 / 68712
71450 / 71750
HH224346 / HH224310
938 / 932
HM926740 / HM926710
97450 / 97900
HH926744 / HH926710
HH926744 / HH926716
HH224349 / HH224310
#64452 / 64700

71453 / 71750
68462 / 68712
74472 / 74846X
74472 / 74850
^JL724348 / JL724314
#M224748 / M224710
97472X / 97905X
L624549 / L624510
48282 / 48220
795 / 792
95475 / 95925
HH228340 / HH228310
HH926749 / HH926710
HH926749 / HH926716
48286 / 48220

95491 / 95925
^JL725346 / JL725316
HM926745 / HM926710
LL225749 / LL225710
L225849 / L225810
L225849 / L225818
48290 / 48220
67388 / 67322
67388 / 67320
74500 / 74850
74500 / 74856
HM926747 / HM926710
97500 / 97900
95500 / 95925
95502 / 95925

EE116050 / 116097
95500 / 95975
EE153050 / 153100
HH228349 / HH228310
HH231637 / HH231610
HH231637 / HH231615
EE750502 / 751200
HH932132 / HH932110
HM926749 / HM926710
48506 / 48750
799 / 792
797 / 792
67389 / 67322
67389 / 67320
799A / 792
L327249 / L327210
48385 / 48320
67390 / 67322
67391 / 67322
48385 / 48328
67390 / 67320
67391 / 67320
74525 / 74846X
74525 / 74850
74525 / 74856
95525 / 95925
95528 / 95925
95525 / 95928
95528 / 95928
95525 / 95975
95528 / 95975

48393 / 48320
74537 / 74846X
74537 / 74850
74537 / 74856
896 / 892
99537 / 99100
LL428349 / LL428310
LM328448 / LM328410
74550 / 74846X
74550A / 74846X
74550 / 74850
73551 / 73875
898 / 892
898A / 892
HM231132 / HM231110
82550 / 82931

HM231132 / HM231115
82550 / 82950
99550 / 99098X
99550 / 99100
HH231649 / HH231610
HH231649 / HH231615
HH234031 / HH234010
HH234031 / HH234018
74551X / 74846X
74551X / 74850
74551X / 74856
48684 / 48620
48685 / 48620
HM231136 / HM231110
82562 / 82931
HM231136 / HM231115

82562 / 82950
LL529749 / LL529710
36690 / 36620
36691 / 36620
HM231140 / HM231110
82576 / 82931
HM231140 / HM231115
82576 / 82950
81575 / 81962
99575 / 99100
EE107057 / 107105
HH932145 / HH932110
EE450577 / 451212
HH234040 / HH234010
HH932145 / HH932115
HH234040 / HH234018

HM231148 / HM231110
HM231149 / HM231110
82587 / 82931
HM231148 / HM231115
HM231149 / HM231115
82587 / 82950
81590 / 81962
M231649 / M231610
81600 / 81962
99600 / 99100
EE107060 / 107105
EE450601 / 451212
HH234048 / HH234010
HH234048 / HH234018
81606 / 81962

H936340 / H936310
H936340 / H936316
L432349 / L432310
46780 / 46720
81629 / 81962
HM237532 / HM237510
81637 / 81962
EE117063 / 117148
L433749 / L433710
46790 / 46720
67780 / 67720
M235145 / M235113
86650 / 86100
HM237535 / HM237510
94649 / 94113
94649 / 94118

EE219065 / 219122
H238140 / H238110
HH437549 / HH437510
EE420651 / 421417
EE108065 / 108142
46792 / 46720
67782 / 67720
H936349 / H936310
H936349 / H936316
^JHM534149 / JHM534110
^JM734449 / JM734410
M235149 / M235113
86669 / 86100
HM535349 / HM535310
94675 / 94113
94675 / 94118
67787 / 67720
HM237542 / HM237510
94687 / 94113
94687 / 94118
EE219068 / 219117
H238148 / H238110
LL735449 / LL735410
36990 / 36920
67790 / 67720
67791 / 67720
M236849 / M236810
M238840 / M238810
EE91702 / 91112
HM237545 / HM237510
94700 / 94113
EE280702 / 281200

EE222070 / 222126
H239640 / H239610
EE222070 / 222128
H239640 / H239612
EE470078 / 470128
EE420701 / 421437
EE420701 / 421450
93708 / 93125
93708 / 93126
LL537649 / LL537610
67883 / 67820
67884 / 67820
M238849 / M238810
87737 / 87111
H239649 / H239610
H239649 / H239612

^JM738249 / JM738210
67885 / 67820
87750 / 87111
93750 / 93125
93750 / 93126
EE470075 / 470128
HH840249 / HH840210
EE420751 / 421450
EE350750-N1 / 351687
87762 / 87111
LL639249 / LL639210
L540049 / L540010
LM739749 / LM739710
93775 / 93125
93775 / 93126
^JHM840449 / JHM840410
93787 / 93125
93787 / 93126
HM743337 / HM743310
EE130787 / 131400
H247535 / H247510
HH144642 / HH144614
EE420793 / 421417
LL641149 / LL641110
LM241149 / LM241110
67983 / 67920
EE132083 / 132125
93800 / 93125
93800A / 93125
EE122080 / 122125
93800 / 93126
93800A / 93126
EE420801 / 421417
EE420801 / 421437
EE420801 / 421450
EE114080 / 114160
EE380080 / 380190
M241549 / M241510
67985 / 67920
EE132084 / 132125
H242649 / H242610
67989 / 67920
93825 / 93125
93825A / 93125
93825 / 93126
93825A / 93126
HM743345 / HM743310
96825 / 96140
LM742745 / LM742710
LM742749 / LM742710
543085 / 543114
EE130851 / 131400
543086 / 543114
M244249 / M244210
EE130889 / 131400
EE430888 / 431575
EE113089 / 113170
EE113091 / 113170
544090 / 544116
544090 / 544118
88900 / 88126
88900 / 88128
8573 / 8520
96900 / 96140
EE130902 / 131400
HM746646 / HM746610
EE430900 / 431575
EE430902 / 431575
EE700091 / 700167
HH949549 / HH949510
EE390090 / 390200
544091 / 544116
544091 / 544118
M246942 / M246910
M249734 / M249710
LM545849 / LM545810
88925 / 88126
88925 / 88128
8575 / 8520
96925 / 96140
H247549 / H247510
M246949 / M246910
M249736 / M249710
EE125094 / 125145
8578 / 8520
EE127095 / 127135
EE170950 / 171400
EE127095 / 127140
EE170950 / 171450
EE125095 / 125145
EE275095 / 275155
EE275095 / 275160
EE923095 / 923175
EE295950 / 295193
EE390095 / 390200
EE126097 / 126150
EE170975 / 171400
EE170975 / 171450
HH249949-N2 / HH249910
29875 / 29819
29875 / 29820
M249749 / M249710
EE134100 / 134143
EE134100 / 134145
EE275100 / 275155
EE251001 / 251575
EE275100 / 275160
HM252343 / HM252310
HM252343 / HM252315
EE822100 / 822175
EE941002 / 941950
HH953749 / HH953710
M349549 / M349510
EE134102 / 134143
EE134102 / 134145
EE221026 / 221575
EE128102 / 128160
EE435102 / 435165
HM252349 / HM252310
EE551026 / 551662
HM252349 / HM252315
EE295102 / 295193
38880 / 38820
LM451345 / LM451310
29880 / 29820
38885 / 38820
LM451349 / LM451310
EE275105 / 275155
