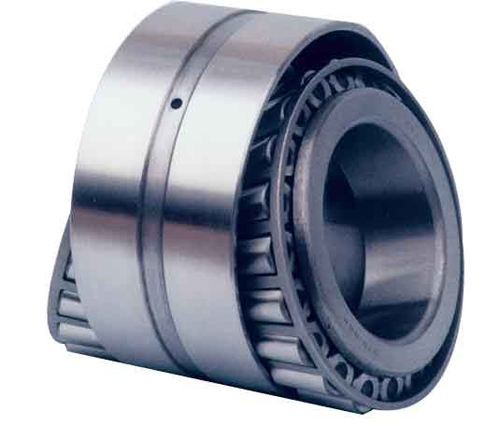

L163149 / L163110
Series |
LM567900 |
Cone Part Number |
LM567943 |
Cup Part Number |
LM567910-B |
Design Units |
Imperial |
Bearing Weight |
129.3 lb58.6 Kg |
Cage Type |
Stamped Steel |
d - Bore |
15.6250 in396.875 mm |
D - Cup Outer Diameter |
21.6250 in549.275 mm |
D1 - Flange Outer Diameter |
22.1836 in563.463 mm |
B - Cone Width |
3.3125 in84.138 mm |
C - Cup Width |
2.4375 in61.913 mm |
C1 - Cup Flange Width |
0.5625 in14.288 mm |
T1 - Bearing Width |
3.3750 in85.725 mm |
T - Bearing Width to Flange |
1.5000 in38.100 mm |
| R - Cone Backface "To Clear" Radius1 | 0.25 in6.400 mm |
| r - Cup Backface "To Clear" Radius2 | 0.130 in3.30 mm |
da - Cone Frontface Backing Diameter |
16.54 in420.10 mm |
db - Cone Backface Backing Diameter |
16.93 in430 mm |
Da - Cup Frontface Backing Diameter |
21.02 in531.11 mm |
Ab - Cage-Cone Frontface Clearance |
0.19 in4.8 mm |
Aa - Cage-Cone Backface Clearance |
0.45 in11.4 mm |
| a - Effective Center Location3 | 0.61 in15.5 mm |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 83500 lbf371000 N |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 322000 lbf1430000 N |
C0 - Static Radial Rating |
704000 lbf3130000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 58200 lbf259000 N |
| K - Factor7 | 1.43 |
| e - ISO Factor8 | 0.41 |
| Y - ISO Factor9 | 1.47 |
| G1 - Heat Generation Factor (Roller-Raceway)10 | 3800 |
G2 - Heat Generation Factor (Rib-Roller End) |
427 |
| Cg - Geometry Factor11 | 0.214 |
