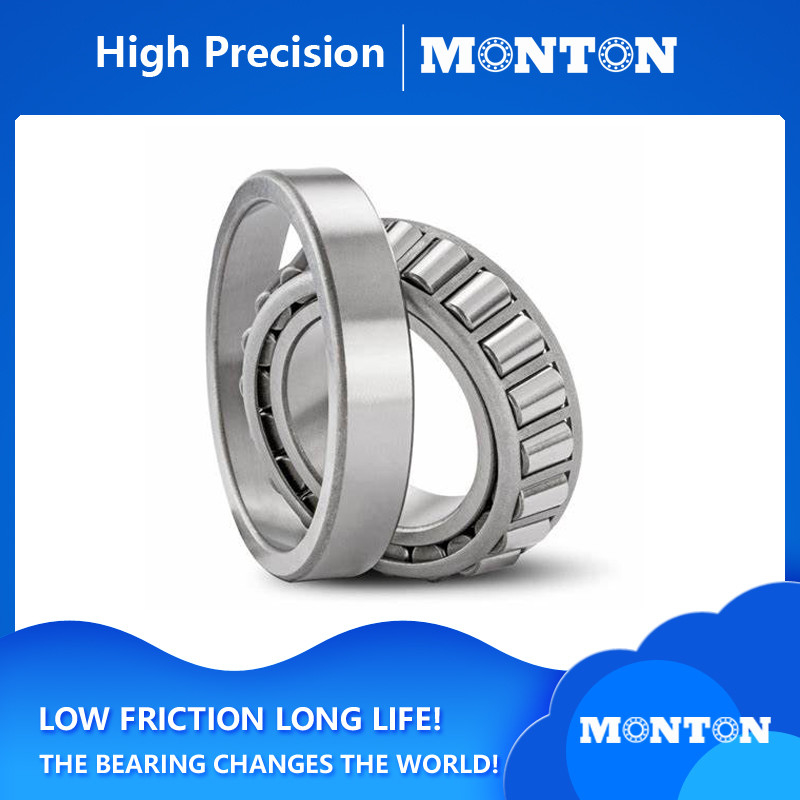

Name: 30203 Precision Single Row Taper Roller Bearing GCr15 Material With Long Life
Brand: MONTON
SKU: 30203
Rating: 4.9 (109 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Taper Roller Bearing

Accuracy: P0/P6/P5

MQC: 1PC

Material: GCr15

Highlight:

tapered ball bearing

anti friction bearing

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: 30203

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 1000/pcs/week

Gallery

30203 Precision Single Row Taper Roller Bearing GCr15 Material With Long Life

Product Description

Bearing No.	Boundary Dimensions(mm)					Basic Load Rating (KN)		Weight
Bearing No.	d	D	T	B	C	Cr.	Cor.	(Kg)
30202	15	35	11.75	11	10	14.9	13.4	0.053
30203	17	40	13.25	12	11	20.8	20.7	0.081
30204	20	47	15.25	14	12	27	27.2	0.127
30205	25	52	16.25	15	13	32.5	35	0.155
30206	30	62	17.25	16	14	43.5	48	0.237
30207	35	72	18.25	17	15	55.1	60.9	0.344
30208	40	80	19.75	18	16	62.9	69.2	0.434
30209	45	85	20.75	19	16	67.2	77.4	0.502
30210	50	90	21.75	20	17	76.5	91.7	0.54
30211	55	100	22.75	21	18	94.6	113	0.732
30212	60	110	23.75	22	19	106	127	0.945
30213	65	120	24.75	23	20	128	156	1.13
30214	70	125	26.25	24	21	138	173	1.26
30215	75	130	27.25	25	22	142	181	1.36
30216	80	140	28.25	26	22	161	202	1.72
30217	85	150	30.5	28	24	182	231	2.08
30218	90	160	32.5	30	26	204	261	2.54
30219	95	170	34.5	32	27	231	299	3.2
30302	15	42	14.25	13	11	21.9	19.2	0.095
30303	17	47	15.25	14	12	27.4	24.5	0.13
30304	20	52	16.25	15	13	35	33.5	0.179
30305	25	62	18.25	17	15	48.2	46.9	0.266
30306	30	72	20.75	19	16	59.6	60.1	0.411
30307	35	80	22.75	21	18	76	79	0.52
30308	40	90	25.25	23	20	90.6	101	0.747
30309	45	100	27.25	25	22	113	128	0.985
30310	50	110	29.25	27	23	137	152	1.29
30311	55	120	31.5	29	25	149	170	1.66
30312	60	130	33.5	31	26	173	201	1.98
30313	65	140	36	33	28	204	239	2.44
30314	70	150	38	35	30	230	273	2.96
30315	75	160	40	37	31	260	311	3.57
30316	80	170	42.5	39	33	294	355	4.27
30317	85	180	44.5	41	34	316	384	4.97
30318	90	190	46.5	43	36	330	395	5.83
30319	95	200	49.5	45	38	360	440	6.77
31304	20	52	16.25	15	11	31	30.5	0.17
31305	25	62	18.25	17	13	40.5	46	0.262
31306	30	72	20.75	19	14	52.5	60.5	0.392
31307	35	80	22.75	21	15	65.8	76.8	0.514
31308	40	90	25.25	23	17	81.5	96.5	0.727
31309	45	100	27.25	25	18	95.5	115	0.944
31310	50	110	29.25	27	19	108	128	1.21
31311	55	120	31.5	29	21	130	158	1.56
31312	60	130	33.5	31	22	145	178	1.9
31313	65	140	36	33	23	165	202	2.37
31314	70	150	38	35	25	188	230	2.86
31315	75	160	40	37	26	208	258	3.38
31316	80	170	42.5	39	27	230	288	4.05
31317	85	180	44.5	41	28	255	318	4.69
31318	90	190	46.5	43	30	282	358	5.46
31319	95	200	49.5	45	32	310	400	6.46
32004	20	42	15	15	12	23.6	28	0.108
32005	25	47	15	15	11.5	26	33	0.12
32005A	25	47	15	15	11.5	23.2	18.3	0.11
32006	30	55	17	17	13	38.2	48	0.177
32007	35	62	18	18	14	45.5	57	0.231
32008	40	68	19	19	14.5	53.5	71.4	0.282
32009	45	75	20	20	15.5	62.8	86.5	0.354
32010	50	80	20	20	15.5	65.7	94.5	0.37
32011	55	90	23	23	17.5	84.6	121	0.552
32012	60	95	23	22	19	86.1	127	0.62
32013	65	100	23	23	17.5	90	137	0.633
32014	70	110	25	25	19	108	163	0.862
32015	75	115	25	25	19	110	169	0.909
32016	80	125	29	29	22	147	225	1.32
32017	85	130	29	29	22	150	234	1.35
32018	90	140	32	32	24	178	276	1.8
32019	95	145	32	32	24	182	287	1.82
32020	100	150	32	32	24	185	298	1.95
32021	105	160	35	35	26	215	344	2.45
32204	20	47	19.25	18	15	32.5	34.8	0.156
32205	25	52	19.25	18	16	39.5	43.5	0.186
32206	30	62	21.25	20	17	50.7	57.9	0.292
32207	35	72	24.25	23	19	69.6	82.4	0.453
32208	40	80	24.75	23	19	77.7	90.8	0.554
32209	45	85	24.75	23	19	84.2	104	0.583
32210	50	90	24.75	23	19	85	105	0.646
32211	55	100	26.75	25	21	107	133	0.863
32212	60	110	29.75	28	24	132	167	1.17
32213	65	120	32.75	31	27	157	203	1.58
32214	70	125	33.25	31	27	169	225	1.664
32215	75	130	33.25	31	27	174	234	1.71
32216	80	140	35.25	33	28	203	271	2.14
32217	85	150	38.5	36	30	232	315	2.69
32218	90	160	42.5	40	34	263	362	3.44
32219	95	170	45.5	43	37	311	439	4.26
32220	100	180	49	46	39	347	495	5.21
32221	105	190	53	50	43	369	516	5.9
32222	110	200	56	53	46	426	612	7.06
32224	120	215	61.5	58	50	502	753	8.89
32303	17	47	20.25	19	16	31.5	35	0.18
32304	20	52	22.5	21	18	46	47.5	0.241
32305	25	62	25.25	24	20	61.2	64.1	0.386
32306	30	72	28.75	27	23	82.2	91.6	0.563
32307	35	80	32.75	31	25	101	114	0.776
32308	40	90	35.25	33	27	116	139	1.06
32309	45	100	38.25	36	30	146	180	1.403
32310	50	110	42.25	40	33	176	220	1.89
32311	55	120	45.5	43	35	200	250	2.37
32312	60	130	48.5	46	37	221	275	2.91
32313	65	140	51	48	39	260	350	3.45
32314	70	150	54	51	42	317	414	4.34
32315	75	160	58	55	45	363	481	5.37
32316	80	170	61.5	58	48	383	503	6.37
32317	85	180	63.5	60	49	439	587	7.42
33005	25	47	17	17	14	27.5	37	0.13
33006	30	55	20	20	16	43.2	55.2	0.201
33007	35	62	21	21	17	51.3	68	0.263
33008	40	68	22	22	18	60.4	84.6	0.326
33009	45	75	24	24	19	71	102	0.416
33010	50	80	24	24	19	73	110	0.44
33011	55	90	27	27	21	93	149	0.673
33012	60	95	27	27	21	101	162	0.714
33013	65	100	27	27	21	99	159	0.766
33014	70	110	31	31	25.5	135	220	1.14
33015	75	115	31	31	25.5	141	225	1.11
33016	80	125	36	36	29.5	182	305	1.63
33017	85	130	36	36	29.5	180	305	1.69
33018	90	140	39	39	32.5	232	388	2.2
33019	95	145	39	39	32.5	226	382	2.31
33108	40	75	26	26	20.5	82.2	108	0.508
33109	45	80	26	26	20.5	84	115	0.597
33110	50	85	26	26	20	89.4	127	0.576
33111	55	95	30	30	23	114	164	0.868
33112	60	100	30	30	23	117	172	1.01
33113	65	110	34	34	26.5	149	223	1.31
33114	70	120	37	37	29	175	260	1.58
33115	75	125	37	37	29	186	280	1.838
33116	80	130	37	37	29	191	294	1.93
33117	85	140	41	41	32	224	346	2.43
33118	90	150	45	45	35	258	413	3.19
33205	25	52	22	22	18	48.5	58	0.214
33206	30	62	25	25	19.5	66	78	0.359
33207	35	72	28	28	22	87.6	107	0.551
33208	40	80	32	32	25	108	139	0.758
33209	45	85	32	32	25	112	149	0.769
33210	50	90	32	32	24.5	119	167	0.835
33211	55	100	35	35	27	142	189	1.16
33212	60	110	38	38	29	174	239	1.52
33213	65	120	41	41	32	200	277	2.01
33214	70	125	41	41	32	211	300	2.06
33215	75	130	41	41	31	212	310	2.14
33216	80	140	46	46	35	250	371	2.89
33217	85	150	49	49	37	294	439	3.63
528983B	70	130	57	56				2.79
534565	70	130	57	56				2.764
