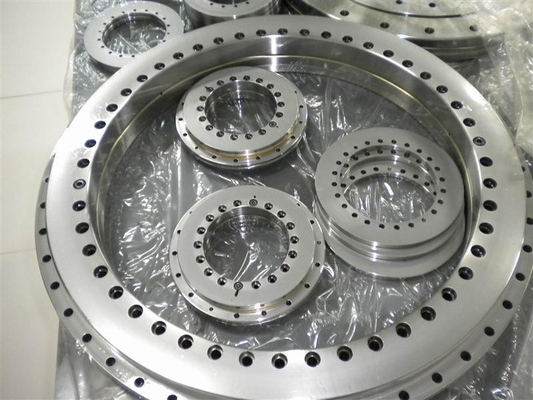

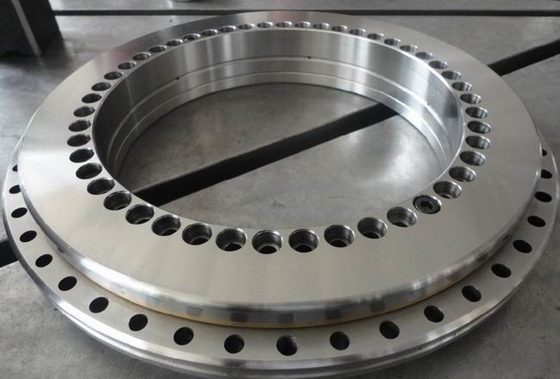

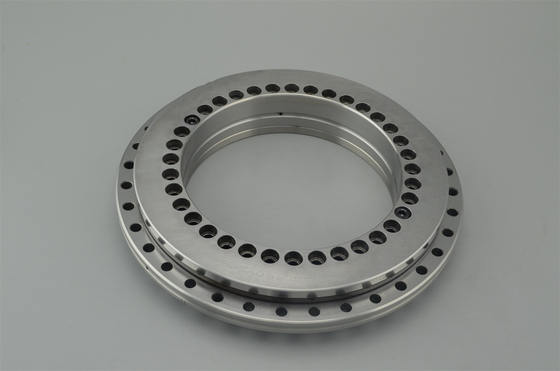

YRT bearings
We can supply the Rotary Table Bearing from YRT50 to YRT 1030 with P4 or P2 level.Our YRT bearings have been widely used on the machine tool industry.We have cooperated with world famous company like DMG,LCM,MKD,etc and our YRT bearings received a very good reputation for our perfect quality!We welcome all the world customers to send inquires to us and we are waiting for our cooperation with you!!!
|
| |
| | 10 | | | Number of fixing holes in inner ring
Attention!
For fixing holes in the adjacent construction.
Note the pitch of the bearing holes. |
| | | 12 | | | Number of fixing holes in outer ring
Attention!
For fixing holes in the adjacent construction.
Note the pitch of the bearing holes. |
| | | 2 | | | Number of retaining screws |
| | C | 10 mm | | | D1 max | 105 mm | | | Diameter of inner ring for design of adjacent construction |
| | d1 | 5,6 mm | | | Fixing holes in inner ring |
| | d3 | 5,6 mm | | | Fixing holes in outer ring |
| | H1 | 20 mm | | | H2 | 10 mm | | | J | 63 mm | | | Fixing holes in inner ring |
| | J1 | 116 mm | | | Fixing holes in outer ring |
| | t | 12 x 30° | | | Pitch t
Including retaining screws and extraction threads
Quantity X t |
|
|
| |
| m | 1,6 kg | | | MA | 8,5 Nm | | | Screw tightening torque
Tightening torque for screws to DIN EN ISO 4762, grade 10.9. |
| | Ca | 56000 N | | | Basic dynamic load rating, axial |
| | C0a | 280000 N | | | Basic static load rating, axial |
| | Cr | 28500 N | | | Basic dynamic load rating, radial |
| | C0r | 49500 N | | | Basic static load rating, radial |
| | Cur | 7100 N | | | Fatigue limit load, radial |
| | Cua | 29500 N | | | Fatigue limit load, axial |
| | nG | 440 1/min | | | Limiting speed
For high operating durations or continuous operation, please contact us. |
| | MR | 2,5 Nm | | | Bearing frictional torque
Measurement speed n const = 5 1/min,
bearing temperature +50°C,
after grease distribution cycle;
frictional torque may increase by 2,5 times up to the limiting speed. |
| | caL | 1300 N/µm | | | Axial rigidity of bearing position
Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| | crL | 1100 N/µm | | | Radial rigidity of bearing position
Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| | ckL | 1250 Nm/mrad | | | Tilting rigidity of the bearing position
Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. |
| | caL | 6200 N/µm | | | Axial rigidity of rolling element set |
| | crL | 1500 N/µm | | | Radial rigidity of rolling element set |
| | ckL | 5900 Nm/mrad | | | Tilting rigidity of rolling element set |
|
|
In the same time,we can also supply:
The type of YRT rotary table YRT series are as below:
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT460,
YRT580,YRT650,YRT850,YRT950,YRT1030
YRTS series:
YRTS50,YRTS80,YRTS100,YRTS120,YRTS150,YRTS180,YRTS200,YRTS260,YRTS325,YRTS460,YRTS580,YRTS650,YRTS850,YRTS950,YRTS1030
ZKLDF series:
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460
YRTM series:
YRTM50,YRTM80,YRTM100,YRTM120,YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM460,YRTM580,YRTM650,YRTM850,YRTM95
Welcome here if you have any demands!
