Tapered ball bearing 30205 For Rolling Mill Bearing 3020 Type
Definition of Tapered roller bearing 30205 7205E HR30205J bearing :

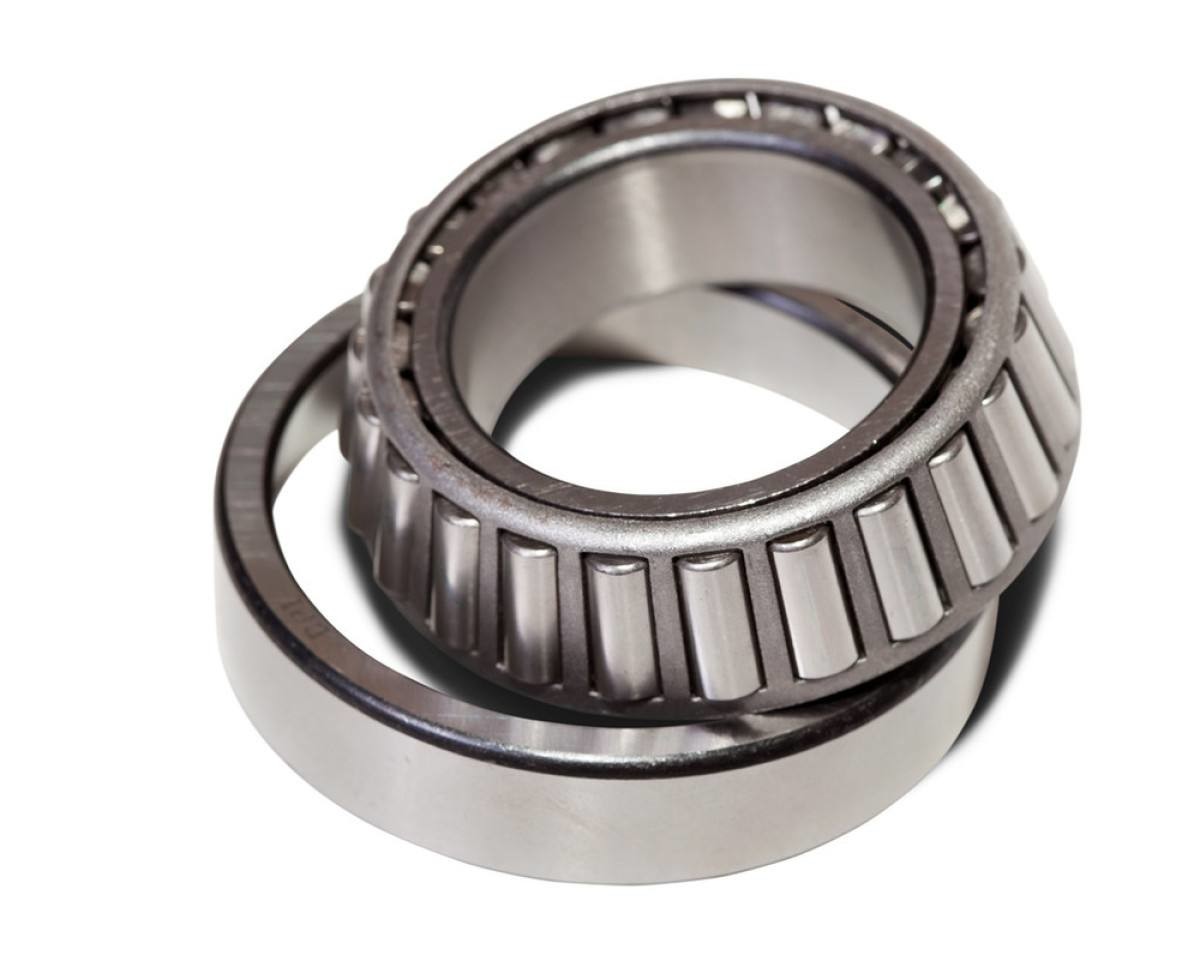

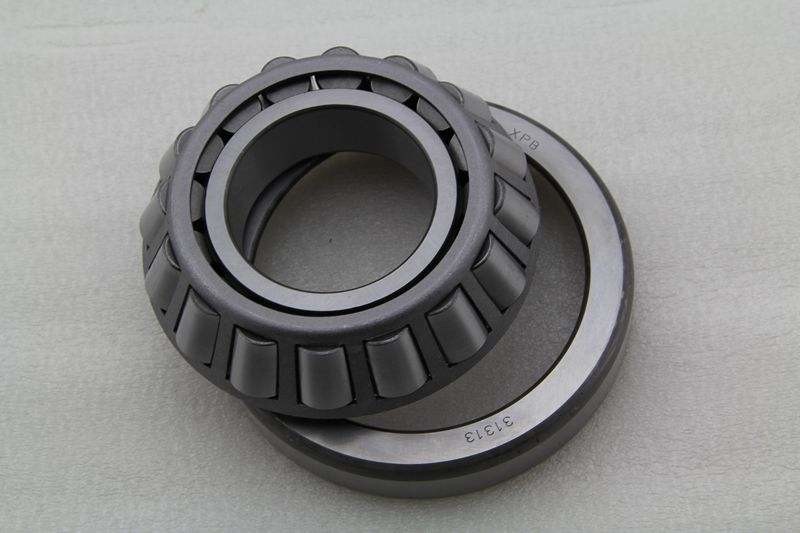

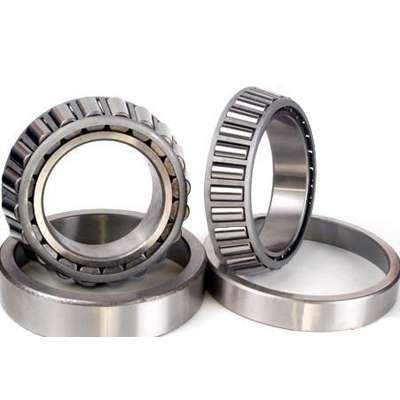

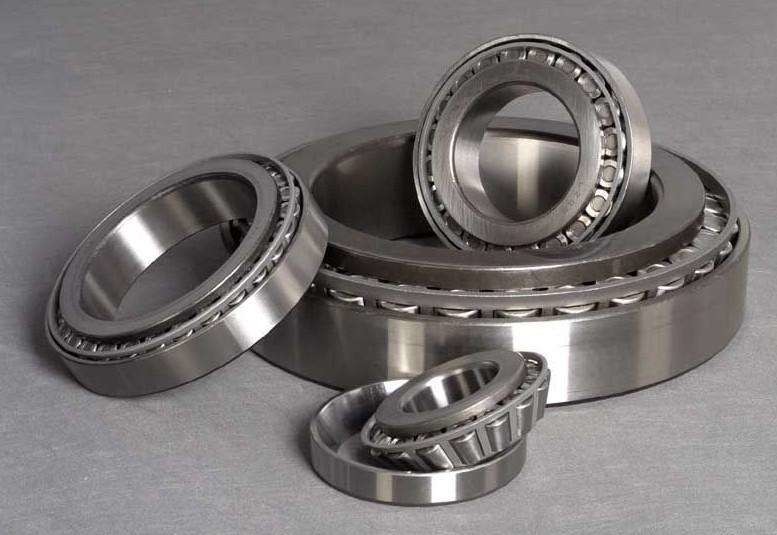

Tapered roller bearing included cup and cone there two parts.Cup is outer ring, Cone comprise rollers,cage,inner ring.And the inner ring with the rollers and cage can be fitted separately from the outer ring.
The tapered roller bearings are generally used to support comnined load mainly consisting of radial load. The carrying capacity of axial load depends on the contact angle of raceway of outer rings. The bigger the contact angle is, the strongerr the capacity will be .
Taper roller bearing 30205 7205E bearing design and specification :
|Bearing Name||HR30205J bearing|
|New Model||HR30205J bearing|
|Category||Tapered roller bearing|
|Inner Diameter d ( mm )||25|
|Outer Diameter D ( mm )||52|
|Thickness T ( mm )||16.25|
|1||Series||Taper Roller Bearing|
|2||Dimension||Id from 15mm to 220mm|
|3||Rows||Single & Double & Four rows|
|7||Precision||ABEC1 (P0) ABEC3 (P6) ABEC5 (P5)|
1: plastic tube or plastic paper
2: plastic bag + brand color box + brand carton
3: plastic bag + white box + carton
|10||Brand||NSK OR OEM|
|12||Delivery term||FOB qingdao, guangzhou port & CIF|
1) 3-5days (bearing in stocks,standard dimension)
2)10-20 days(order to produce,standard dimension)
3)15 days(produce as drawing,special design)
1).30%T/T in advance ,70% balance has to be paid before first shippment.
2).100% L/C at sight
3): West Union
5): Other payment terms depend on our discussion
|15||Useage||Single & double rows||motors,dynamos,combustion turbines,main shafts of machine tools,
reducing gears,handling machinery and transporters

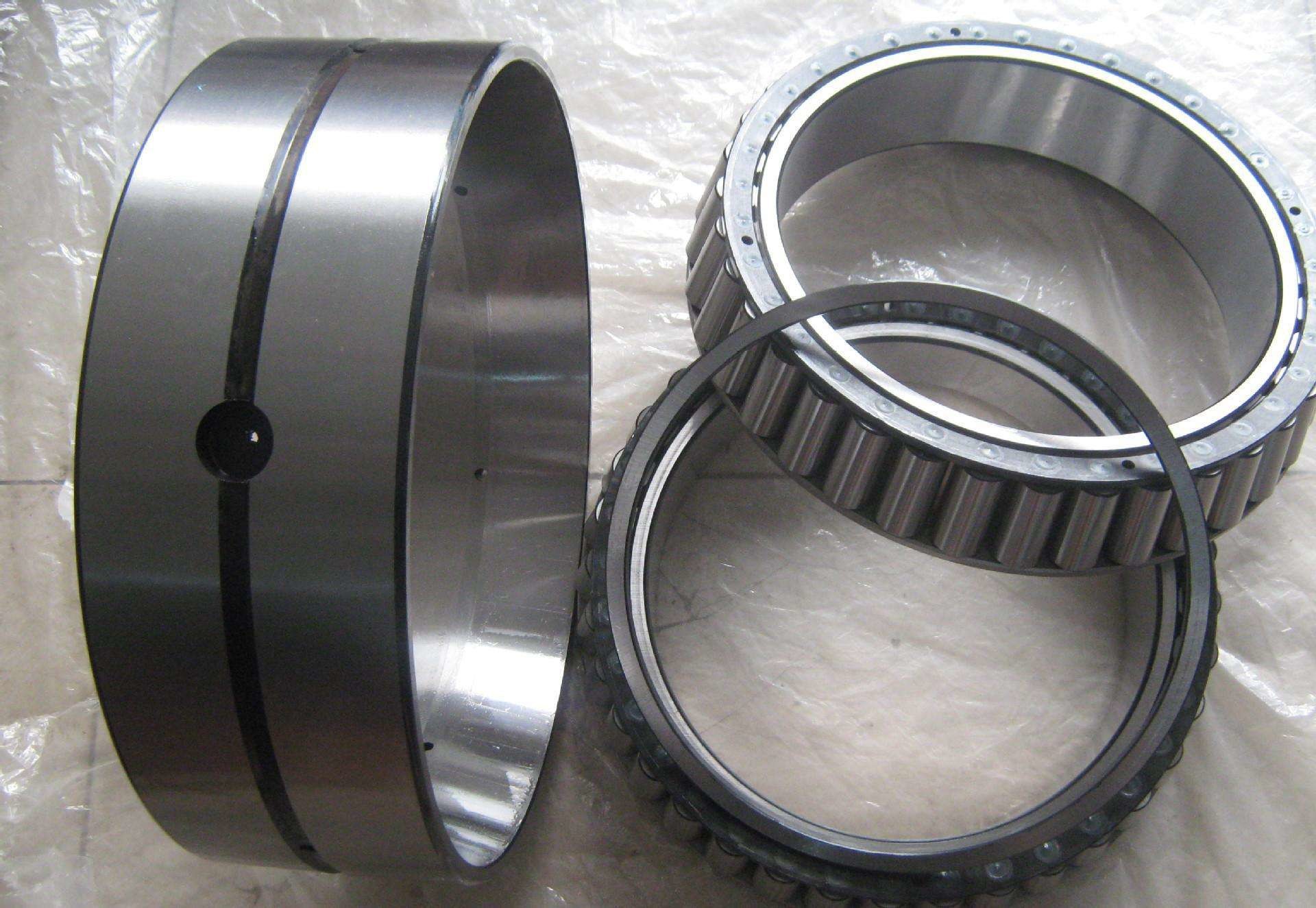

|Four rows||rolling mills(cold mill & hot mill & roughing mill)|
|16||Features||Nice out looks, good quality, best price, short delivery time, easy to install to machines.|
|17||Others||OEM orders available|
Regarding Taper Roller Bearing
Regarding Taper Roller Bearing Application
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2.Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6.Car: truck, road, bus, car, modified car, motorcycle ,etc.
