High Speed Ball Bearings External Tooth Four Point Contact Ball Slewing Bearing

1
MOQ
USD
Price
High Speed Ball Bearings External Tooth Four Point Contact Ball Slewing Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: H239649 - H239612CD
D: 187.325
D: 320.675
T174.625: 85.725
Weight: 52KG
Keywords: Precision Machine Tool Bearing Factory
High Light:

electric motor bearings

,

anti friction bearing
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: H239649 - H239612CD
Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 7-35 days
Product Description

H239649 - H239612CD

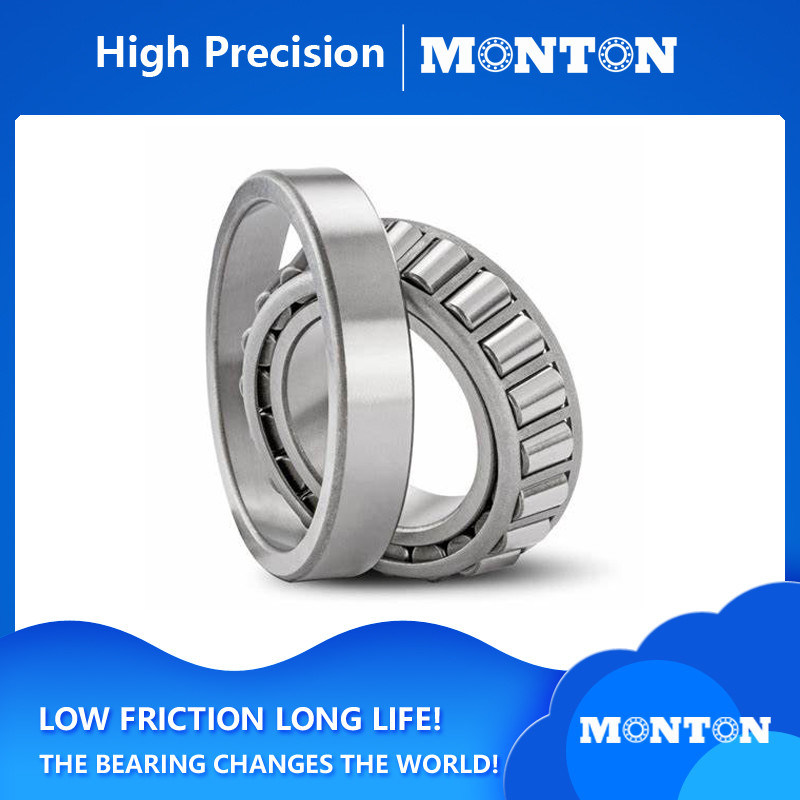

Tapered Roller Bearings

external tooth four point contact ball slewing bearing made in china

Specifications

Series

H239600

Cone Part Number

H239649

Cup Part Number

H239612CD

Design Units

Imperial

Bearing Weight

115.78 lb52.516 Kg

Cage Type

Stamped Steel

Ab - Cage-Cone Frontface Clearance

0.14 in3.6 mm

Dimensions

d - Bore

7.3750 in187.325 mm

D - Cup Outer Diameter

12.6250 in320.675 mm

B - Cone Width

3.3750 in85.725 mm

C - Double Cup Width

5.4375 in138.113 mm

T - Bearing Width across Cones

7.3125 in185.738 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius10.220 in5.600 mm
r - Cup Frontface "To Clear" Radius20.06 in1.5 mm

db - Cone Backface Backing Diameter

8.43 in214.1 mm

Da - Cup Frontface Backing Diameter

11.85 in300.74 mm

Aa - Cage-Cone Backface Clearance

0.42 in10.7 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)361100 lbf272000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4410000 lbf1830000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5106000 lbf473000 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)633400 lbf148000 N

Factors

K - Factor71.83
e - ISO Factor80.67
Y1 - ISO Factor91.011.50
Y2 - ISO Factor101.5
G1 - Heat Generation Factor (Roller-Raceway)11906

G2 - Heat Generation Factor (Rib-Roller End)

90.3
Cg - Geometry Factor120.124


High Speed Ball Bearings External Tooth Four Point Contact Ball Slewing Bearing 0
EE455048D / 455116+K
140KH30+K
140KH3002+K
HH234040D / HH234018+K
82587D / 82931+K
M231649D / M231610+K
81601D / 81962+K
99603D / 99100+K
EE517060D / 517117+K
HH234048D / HH234018+K
H432549D / H432510+K
160KH3401+K
46790D / 46720+K
173KH3501+K
HM237542D / HM237510+K
67790D / 67720+K
82680D / 82620+K
HM237546D / HM237510+K
94706D / 94113+K
HM237546DD / HM237510+K
94706D / 94118+K
187KH3151+K
H239649D / H239612+K
93751D / 93125+K
195KH3001+K
93788D / 93125+K
200KH4201+K
203KH2951+K
93801D / 93125+K
EE420800D / 421437+K
67985D / 67920+K
H242649D / H242610+K
210KH3601+K
9977D / 9920+K
H244849D / H244810+K
M244249D / M244210+K
EE130888D / 131400+K
EE130903D / 131400+K
EE700090D / 700167+K
8576D / 8520+K
H247549D / H247510+K
235KH3701+K
EE127094D / 127140+K
241KH3551+K
EE127097D / 127135+K
LM247748D / LM247710+K
HH249949D / HH249910+K
EE171000D / 171400+K
M249748D / M249710+K
EE738101D / 738172+K
EE822101D / 822175+K
259KH4801+K
260KH31+K
260KH4402+K
EE134103D / 134143+K
M252349D / M252310+K
273KH3951+K
EE722111D / 722185+K
LM654645D / LM654610+K
285KH5001A+K
LM654648D / LM654610+K
HM256849D / HM256810+K
EE329117D / 329172+K
EE129121D / 129172+K
EE941206D / 941950+K
EE790119D / 790221+K
EE129123D / 129172+K
◆HM858548D / HM858511+K
310KH4401+K
LM258649D / LM258610+K
HM259049D / HM259010+K
330KH5401+K
333KH4651+K
340KH30+K
340KH31+K
340KH5801+K
EE971355D / 972100+K
EE536136D / 536225+K
HM262749D / HM262710+K
L163149D / L163110+K
LM263149D / LM263110+K
360KH30+K
360KH31B+K
HM265049D / HM265010+K
HM266445D / HM266410+K
380KH5302+K
HM266449D / HM266410+K
385KH5301+K
EE234157D / 234215+K
400KH5301+K
400KH5901+K
400KH5902+K
406KH6301+K
EE234161D / 234215+K
LM767749D / LM767710+K
EE623161D / 623265+K
415KH5951+K
EE261650D / 262450+K
EE323166D / 323290+K
EE239171D / 239225+K
EE931170D / 931250+K
440KH30+K
M270749D / M270710+K
448KH6301+K
453KH5951+K
EE925179D / 925295+K
EE244181D / 244235+K
L770849D / L770810+K
457KH8651+K
458KH8301+K
460KH31+K
M272749D / M272710+K
480KH31+K
482KH6151+K
LM772749D / LM772710+K
489KH6501+K
489KH7001+K
EE531201D / 531300+K
M275349D / M275310+K
530KH30+K
530KH31+K
M276449D / M276410+K
540KH7101+K
550KH7501+K
LM377449D / LM377410+K
560KH31+K
570KH7101+K
M278749D-N3 / M278710+K
590KH7701+K
M280049D / M280010+K
596KH7601+K
600KH7601+K
600KH8201+K
EE649241D / 649310+K
670KH30+K
670KH31+K
690KH9801+K
710KH30+K
710KH31+K
M383240D-N1 / M383210+K
750KH30+K
750KH31+K
790KH9701+K
825KH1151+K
850KH1201+K
LM286249D / LM286210+K
880KH1201+K
LM287849D / LM287810+K
1000KH1301+K
1005KH1301+K
1180KH1601+K
1290KH1601+K
100KDH2102+K
100KDH2101+K
100KDH2501+K
100KDH2502+K
110KDH2401+K
114KDH2251+K
120KDH2301+K
120KDH2601+K
125KDH2301+K
125KDH3001+K
97500D / 97900+K
150KDH3201+K
170KDH3605+K
170KDH3602+K
180KDH3201+K
180KDH3301+K
190KDH3201+K
200KDH3601+K
210KDH3501+K
210KDH4402+K
210KDH4801+K
96851D / 96140+K
EE113090D / 113170+K
228KDH4351+K
260KDH3801+K
260KDH4501A+K
