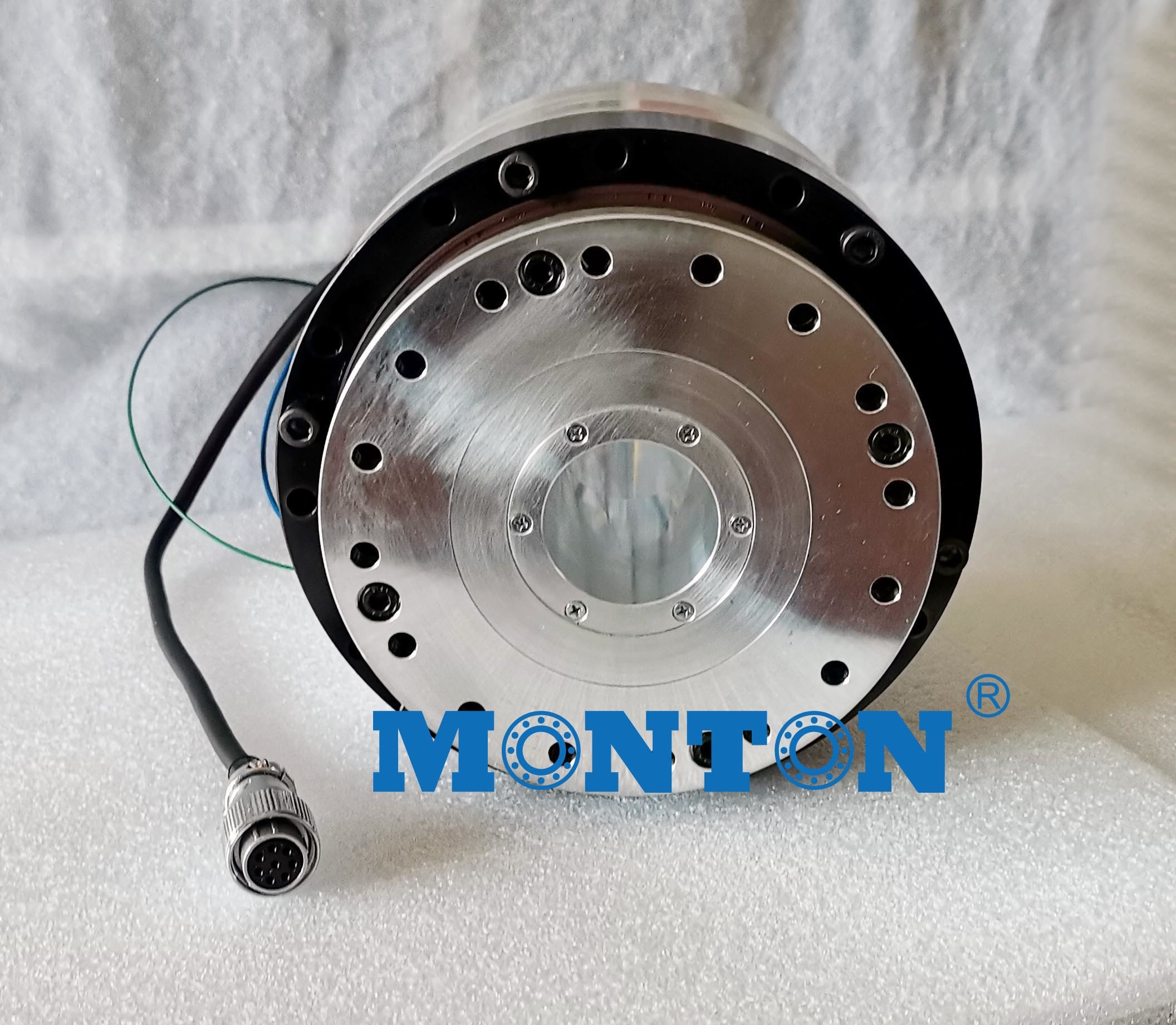

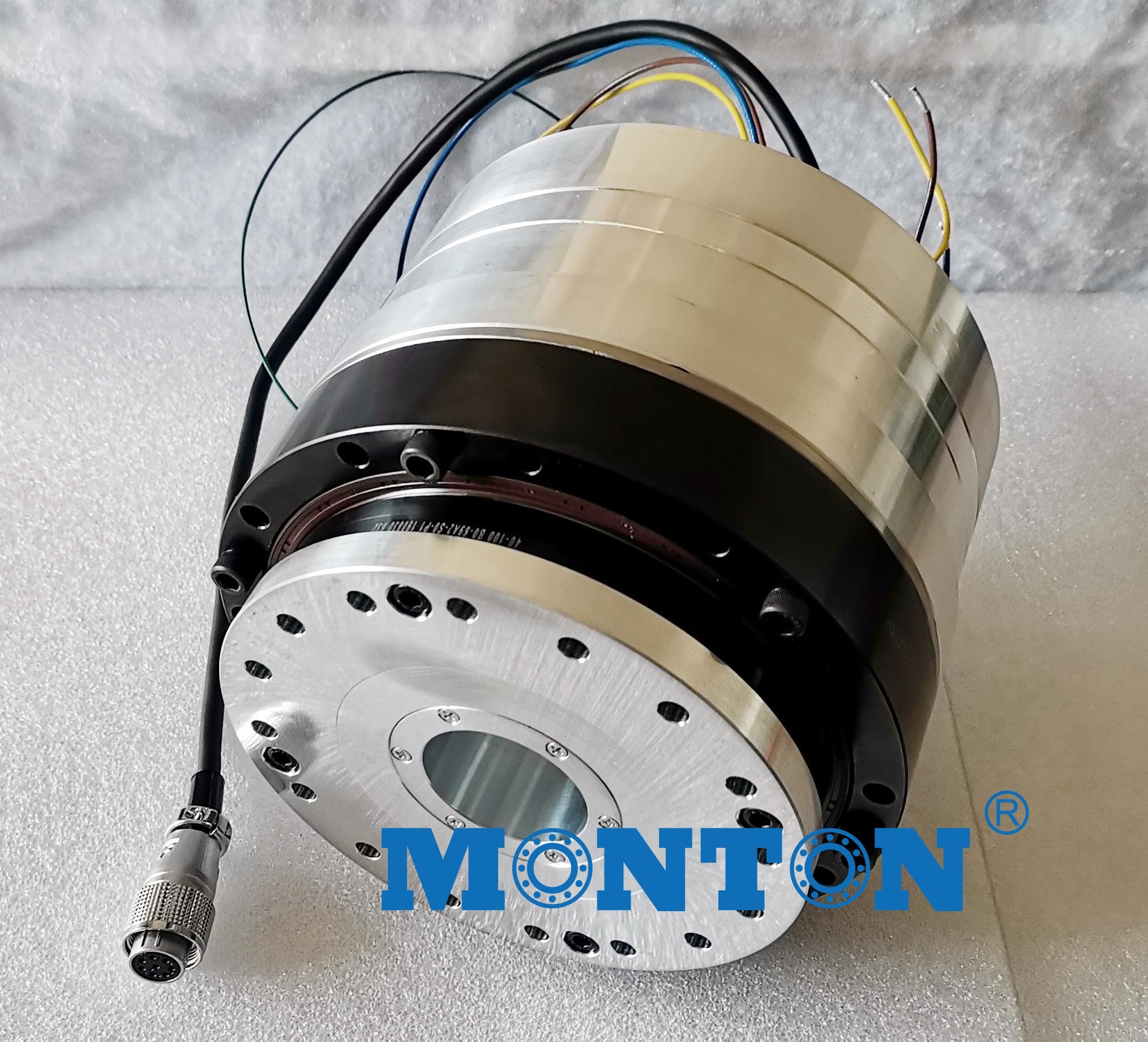

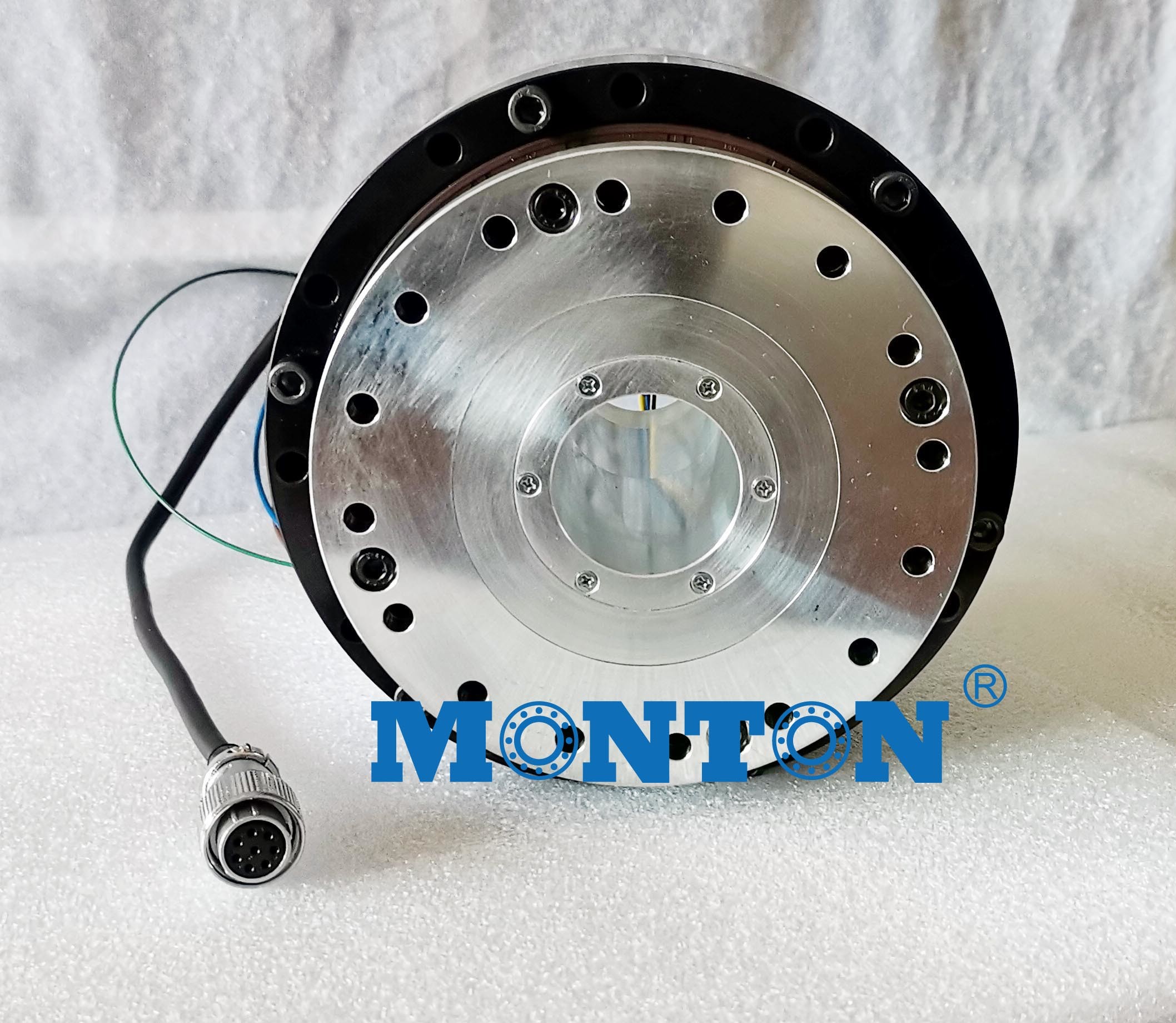

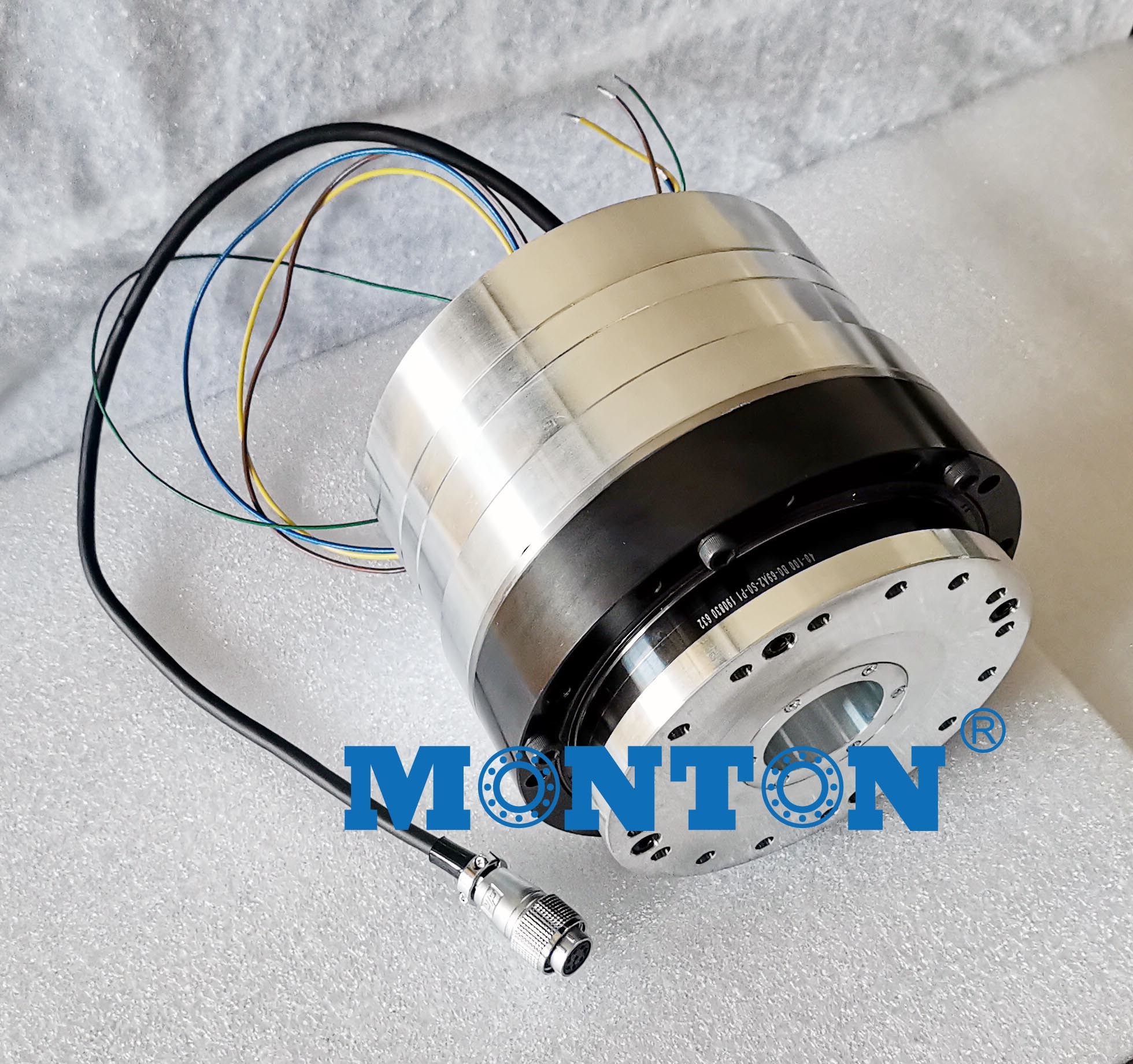

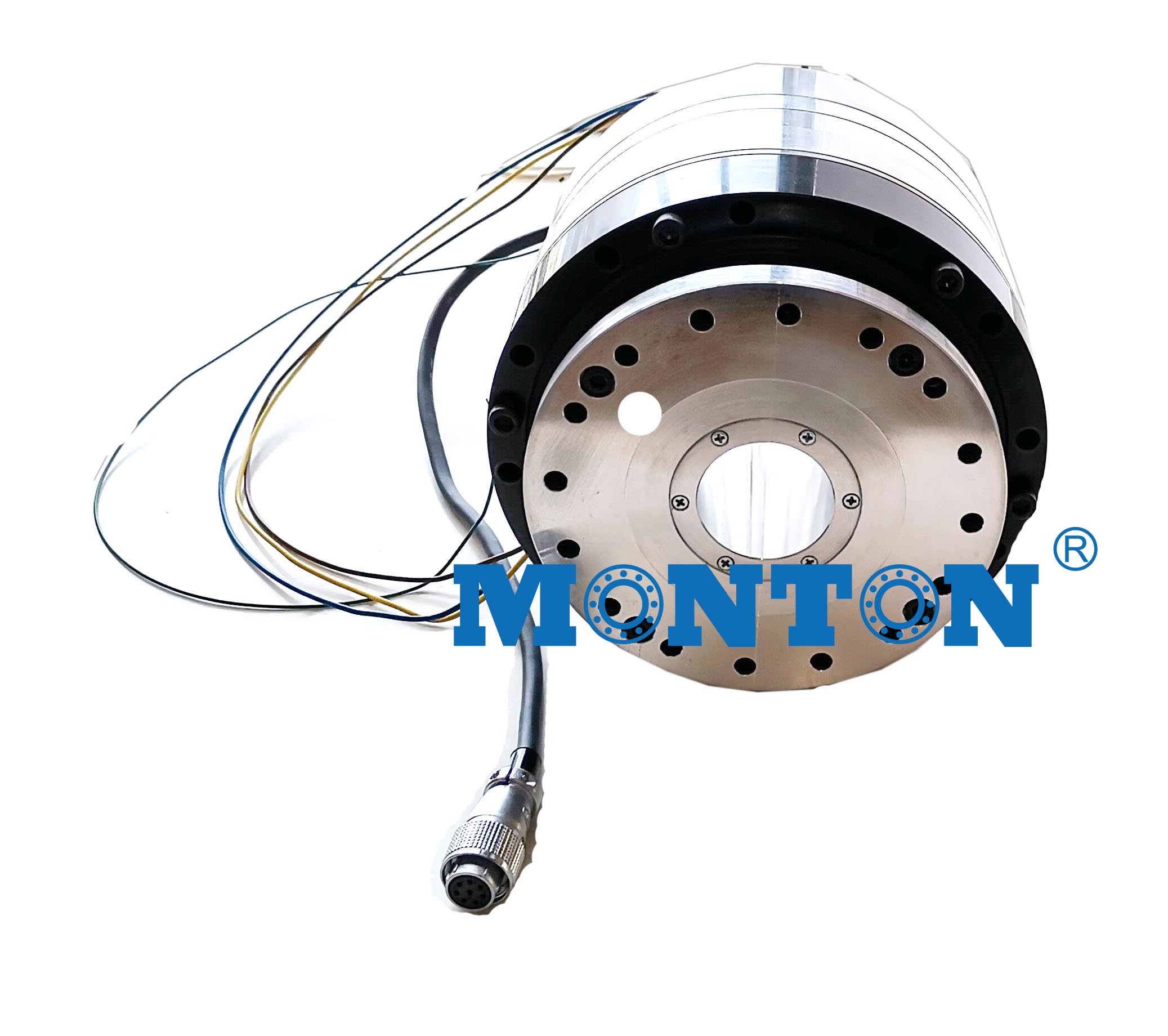

KAH-40CL3NE Harmonics gear actuator AC Servo Actuator
Main features
KAH series hollow shaft rotary actuator provides large-torque and high-precision rotary actuation. With integrated
design, processing and assembly technique, it is provided with high precision speed reducer, framework torque
motor, hollow shaft high resolution absolute encoder, brake and intelligent sensor.
It provides high torque output and torque density, for example, the torque of KAH-40 rotary actuator can
reach 800N·m.
The positioning precision of rotary actuator is within 30 Arc sec.
An internal through hole is set to facilitate threading wires, gas pipe and laser beams and simplify system structure.
Dozens of product models are provided to meet diversified needs, and the products with 220 VAC, 110
VAC and 48 VAC voltages are available.
The high protection grade (IP67) makes the product applicable to severe working environment.
It can be used by matching with KDE series EtherCAT bus servo drives to realize ultra-low vibration control
and reliable and stable operation. It provides an integrated drive control solution.
Application areas
The products have been widely used in such fields as electronic and semiconductor equipment, precision machine tool, factory automation systems, precision laser processing device, LED equipment, detection device, medical apparatus and instruments, robot and special mechanical arm, printing machinery, spray painting equipment, glass processing equipment, precision measuring instrument and other fields.
