Product Description

KAH-32CL3NE Hollow Shaft Harmonic Drive CNC machine reducer high precision

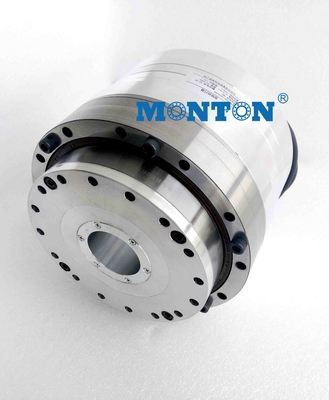

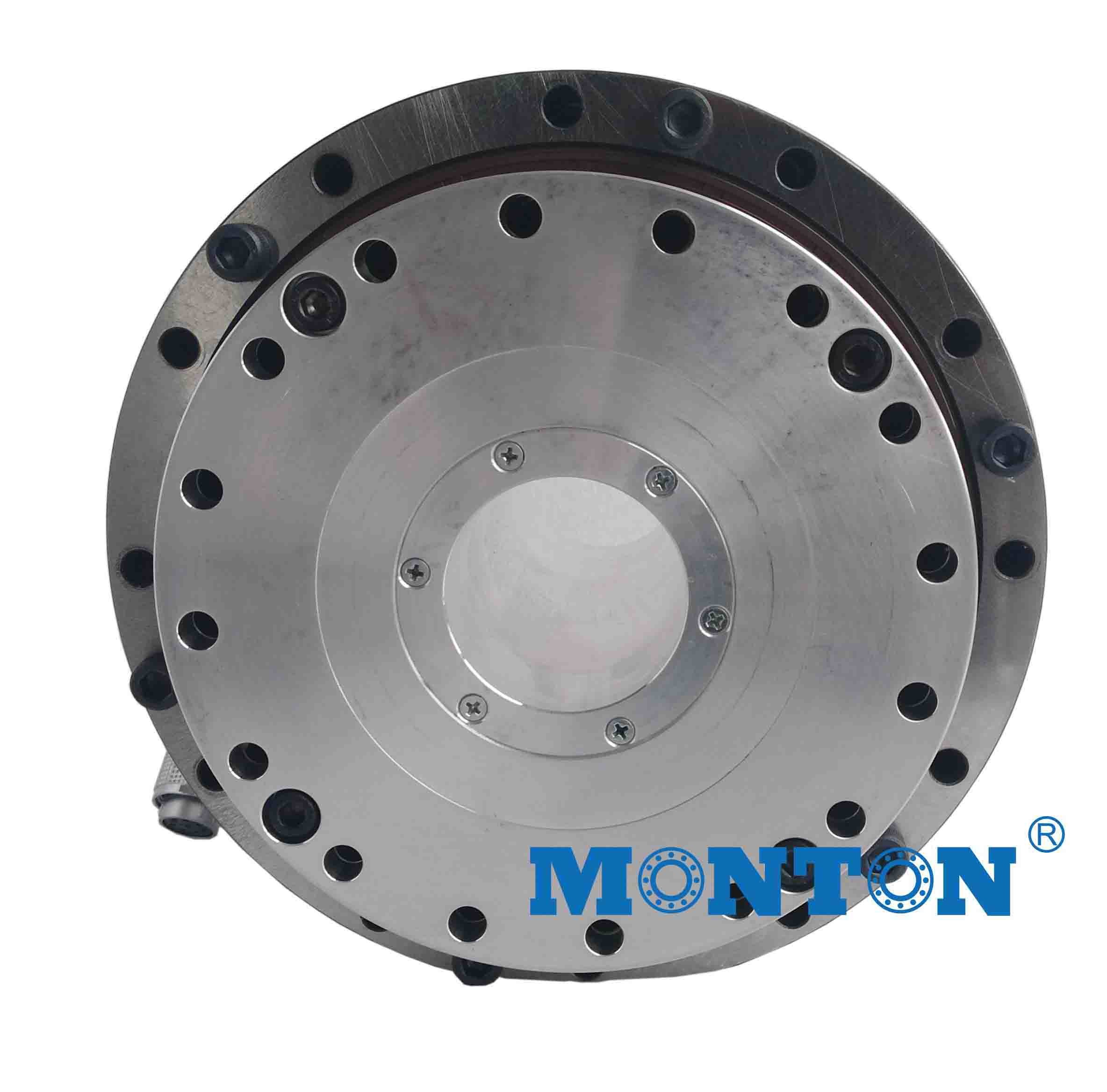

KAH-32CL3NE Hollow Shaft Harmonic Drive Robot Industrial harmonic drive reducer 0

KAH-32 encoder Specification parameter
Series KAH-32
Model KAH-32 32A 32B 32C 32D 32E
Deceleration ratio 1:51 1:81 1:101 1:121 1:161
Maximum torque starting &stopping(N·M) 497 641 702 762 800
Instantaneous maximum torque(N·M) 242 351 460 557 557
AC voltage 220VAC Maximum speed RPM 76.5 48.1 38.6 32.2 24.2
Rated speed RPM 43.1 27.2 21.8 18.2 13.7
Maximum current Arms 22.79 18.51 16.26 14.73 11.62
Rated current Arms 8.67 7.92 8.32 8.41 6.32
Torque constant N·M/Arms 27.91 44.32 55.26 66.23 88.09
Motor phase resistance Ohms 1.024
Motor phase inductance mH 3.026
Motor Back EMF Vrms/kRPM 50.87
AC voltage 1100VAC Maximum speed RPM 52.9 33.3 26.7 22.3 16.8
Rated speed RPM 35.3 22.2 17.8 14.9 11.2
Maximum current Arms 35.85 29.12 25.58 23.17 18.29
Rated current Arms 14.55 13.29 13.97 14.11 10.61
Torque constant N·M/Arms 16.63 26.41 32.93 9.47 52.5
Motor phase resistance Ohms 0.53
Motor phase inductance mH 1.207
Motor Back EMF Vrms/kRPM 44.96
AC voltage 480VAC Maximum speed RPM 35.30 22.20 17.80 14.90 11.20
Rated speed RPM 29.40 18.50 14.90 12.40 9.30
Maximum current Arms 72.66 75.06 51.81 46.98 37.05
Rated current Arms 35.38 41.10 33.95 34.34 25.82
Torque constant N·M/Arms 6.84 8.54 13.55 16.22 21.59
Motor phase resistance Ohms 0.139
Motor phase inductance mH 0.207
Motor Back EMF Vrms/kRPM 17.48
Absolute Encoder Encoder Type Hollow absolute multiturn encoders ,Single-loop 19,22or24, multiturn16
Encoder resolution Motor(1time)rotation 219(524,288),222(4,194.304)or224(16777216)
Motor multiple rotation counter 215(65.536)
Incremental Encoder resolution Hollow incremental encoder,40000impulse/rpm(4 time signal)
encoder Output shaft resolution pulse/rev 2040000 3240000 4040000 4840000 6440000
uniderection positioning accuracy Arc Sec 60 40 40 40 40
Bidirectional positioning accuracy Arc Min 2 1.5 1 1 1
Overturning stiffness ×104 N·m /rad 120.5 157.4
Torsional stiffness ×104 N·m /rad 14 18.6
Moment of inertia without Brake Kg*m2 3.91 9.86 15.36 22.68 39.86
with Brake Kg*m2 4.62 12.03 18.39 26.35 47.50
Weight without Brake Kg 9.1
with Brake Kg 9.7
Motor Grade 16
Motor insulation Heat resistance grade :F(155℃)
Insulation resistance:above200MΩ(DC500V)
Dielectric Strength:AC1500V/1min
Protection grade Fully closed self cooling type(IP65/IP67 degree)





Main Features
1. KAH series hollow shaft rotary actuator provides large-torque and high-precision rotary actuation. With integrated design, processing and assembly technique, it is provided with high precision harmonic drive reducer, frame-less torque motor, hollow shaft high resolution absolute encoder, brake and intelligent sensor.
2. It provides high torque output and high torque density, for example, the torque of KAH-40 rotary actuator can reach 800N·m.
The positioning precision of rotary actuator is within 30 Arc sec.
3.An internal through-hole is set to facilitate threading of wires, gas pipe and laser beams, which simplify the system structure.
4.Dozens of product models are provided to meet diversified needs, and the products with 220 VAC, 110VAC and 48 VAC voltages are available.
5.High protection grade (IP67) makes the product applicable to severe working environment.
6. It can be used by matching with KDE series EtherCAT Bus Servo Drivers to realize ultra-low vibration control and reliable stable operation, through which offers an integrated drive control solution to customers.

Models of KAH series Hollow Shaft Rotary Actuators can be offered as below:

KAH-14, KAH-17, KAH-20, KAH-25, KAH-32, KAH-40.

Application field

•Industrial robot
•Humanoid robot
•Metal machine tools
•Processing machinery of printing
•Semiconductor manufacturing equipment
•Aerospace equipment
•Numerically-controlled machine tool
•Medical apparatus and instruments




Principle of harmonic drive


Harmonic gear transmission principle
The harmonic gear drive invented by an American inventor, C· W· Musser,. usser in 1955,It is a new type of transmission,which uses the elastic defor mation of flexible components for motion or power transmission. It breaks through the mode of using the rigid component to realize mechanical drive, but with a flexible component instead,thus obtaining a series of special functions that other transmission cannot reach. Its name comes from the deformation process of the intermediate flexible component, which is a symmetrical harmonic. Except that the former Soviet .Union called this kind of transmission"Wave Transmission" or "Flexible Gear Drive", other countries like America, England, Ger many, and Japan all called it "Harmonic Drive’’.
Deceleration principle

The principle of har monic gear transmission deceleration is to use the relative motion of the flexible gear, rigid gear and wave generator (mainly the controllable elastic defor mation of the flexible gear), to realize the motion and power transmission. The elliptical cam in the wave generator rotates in the flexible gear, causing the flexible gear to defor m.When the flexible gear teeth and the rigid gear teeth at both ends of the long shaft of the elliptical cam in the wave generator enter the engagement, the flexible gear teeth at both ends of the shor t shaft are disengaged from the rigid gear teeth. For the teeth between the long shaft and the shor t shaft of the wave generator, the half meshing state that is gradually entering into the meshing along the dif ferent par ts of the circumference of the flexible gear and the rigid gear, is called meshing and the half meshing state that is gradually disengaging is called engaging-out.The continuous rotation of elliptical cam in wave generator makes the flexible gear defor m constantly, w hich causes the teeth at the flexible gear and rigid gear to shift between the states of engaging-in, meshing, engaging-out and disengagement,thus realizing motion transmission from active wave generator to the flexible gear.

Harmonic Drive,Harmonic Gear Reducer


The composition of the harmonic gear assembly

Rigid gear : A rigid inter nal gear, usually 2 teeth more than a flexible gear,usually fixed onto the case;
Flexible gear : Thin-cup metal elastic par t with gears on the outer ring of the opening par t.It deforms with the rotation of the wave generator and is usually connected to the output shaft;
Wave generator : Consisting of an elliptical cam and a flexible bearing, usually connected with an input shaft. The inner ring of the flexible bearing is fixed on the cam, and the outer ring can be elastically shaped into an ellipse through the ball bearing.

 Harmonic Drive,Harmonic Gear Reducer

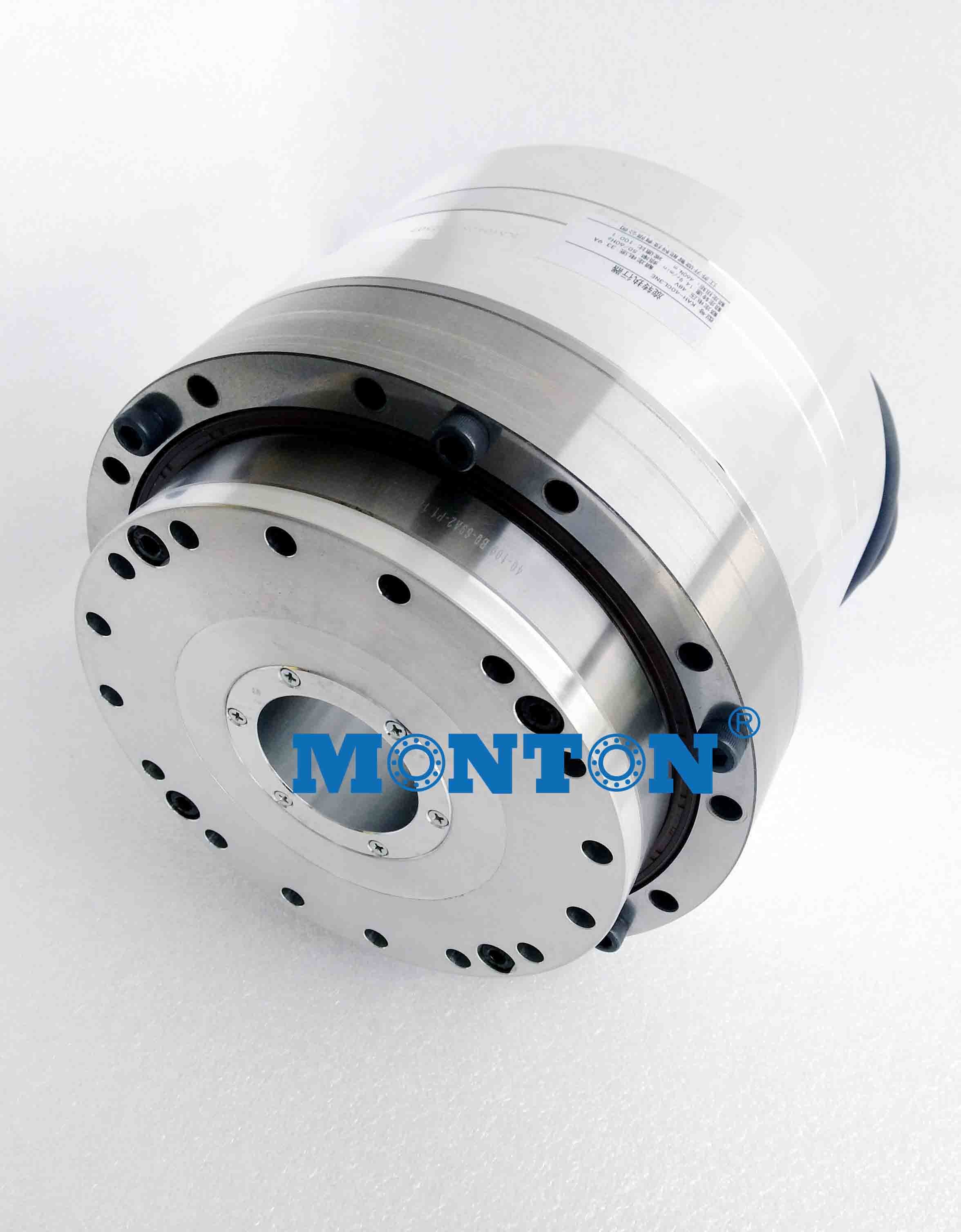

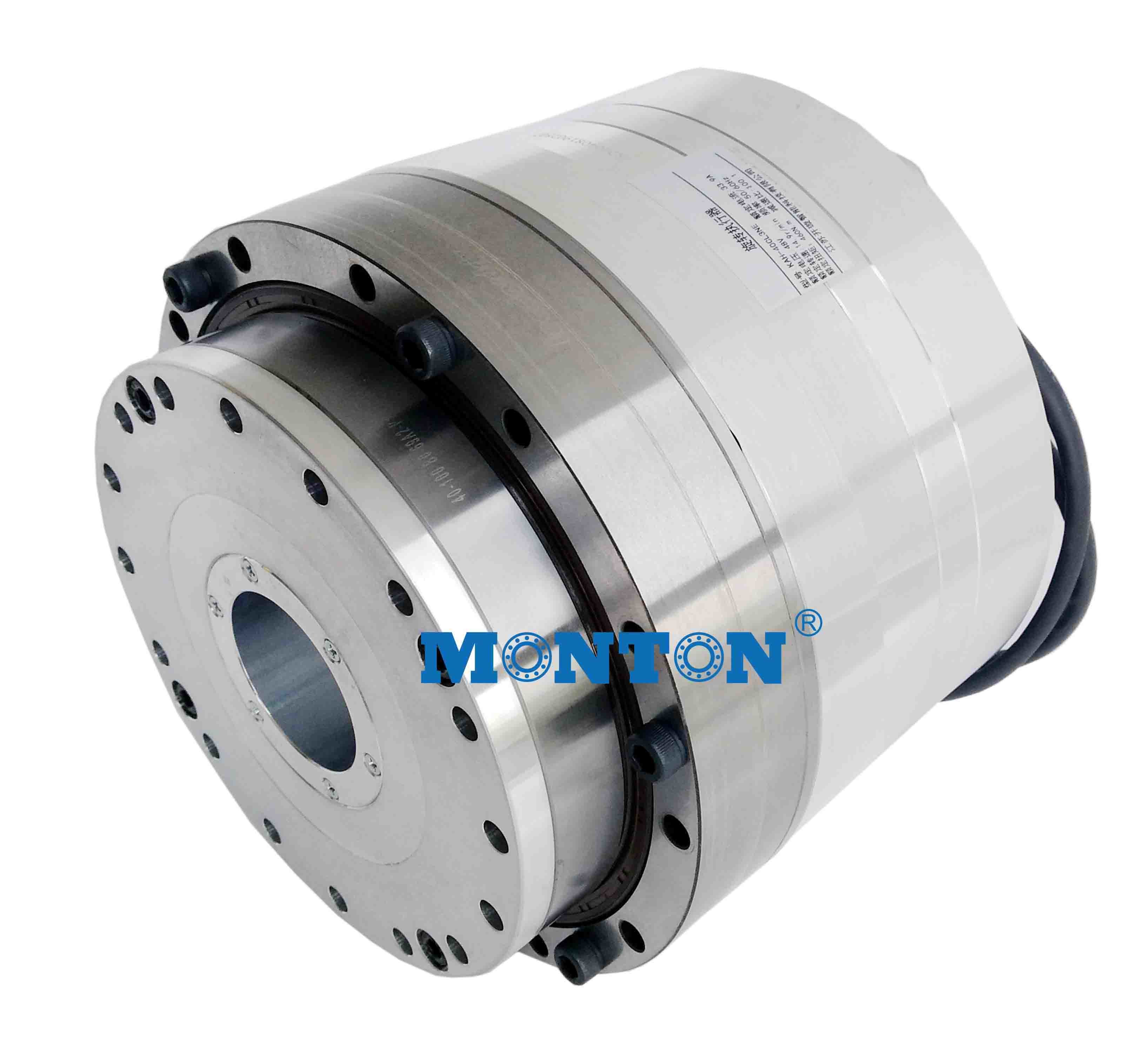

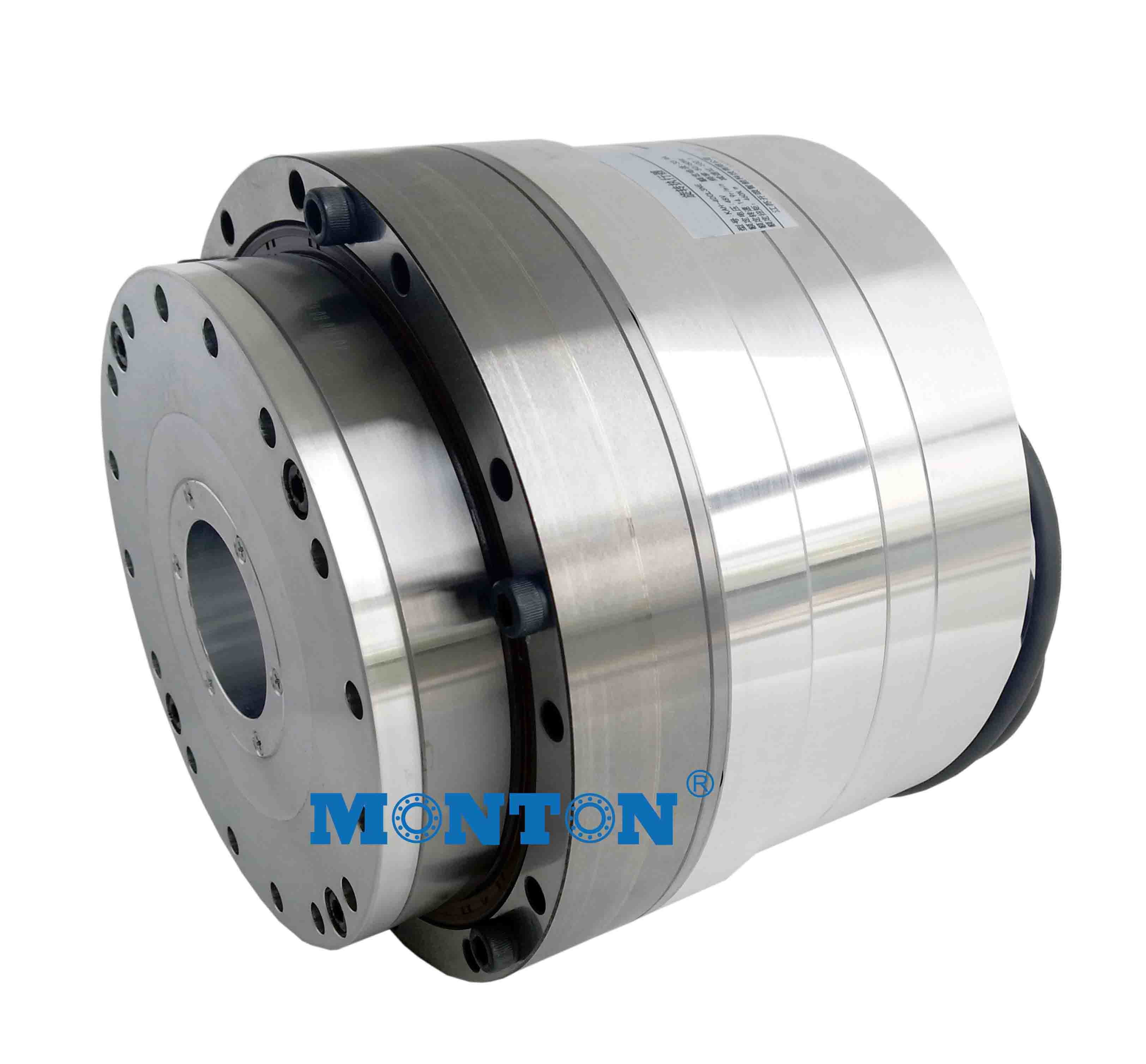

KAH-32CL3NE Hollow Shaft Harmonic Drive Robot Industrial harmonic drive reducer 3

Application field

•Industrial robot
•Humanoid robot
•Metal machine tools
•Processing machinery of printing
•Semiconductor manufacturing equipment
•Aerospace equipment
•Numerically-controlled machine tool
•Medical apparatus and instruments



Please contact with us for more infotmation.
